CMF Series Chip Thermistor

Product Description

NTC thermistor is extremely sensitive to temperature changes. Its zero-power resistance value decreases as the body temperature increases. As the temperature increases, the resistance value decreases exponentially.

Product Features

    1.Application scope:

        ●Temperature measurement: electronic thermometer, electronic perpetual calendar, electronic clock temperature display, electronic gifts, etc.

        ●Temperature control: temperature sensing of rechargeable batteries of mobile phones, car phones, laptops, smart wearable devices and other equipment.

        ●Temperature compensation: Temperature compensation of transistors, ICs and crystal oscillators of mobile communication equipment.

   2.Features:

        ● Small size, no leads, excellent welding performance, suitable for high-density surface mounting.

        ●The surface of the porcelain body is encapsulated with glass, which has good moisture resistance and high reliability and stability.

        ●Wide operating temperature range: -40℃~+125℃.

        ●High-precision resistance value and B value constant.

        ●Comply with RoHS environmental standards.

   3.Installation method: Surface mount.

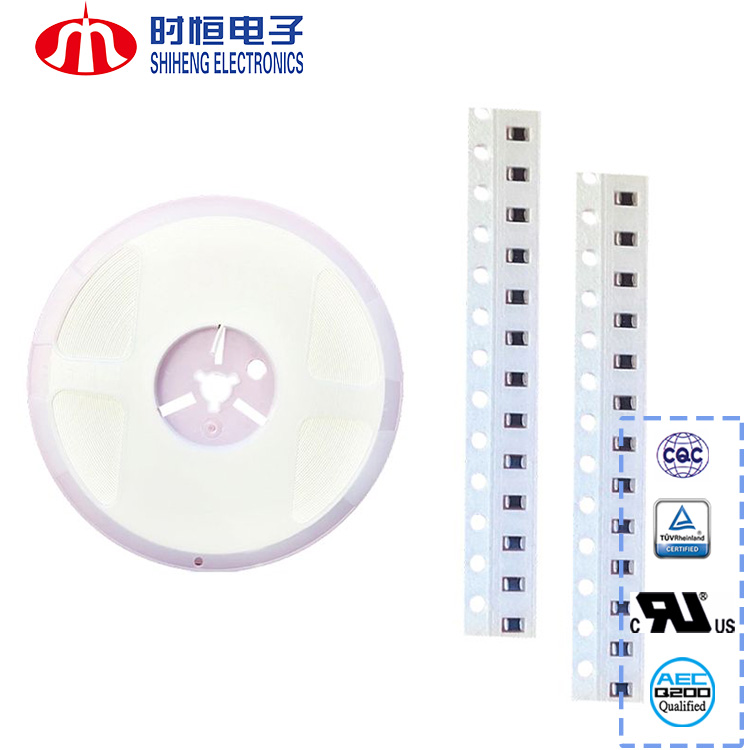

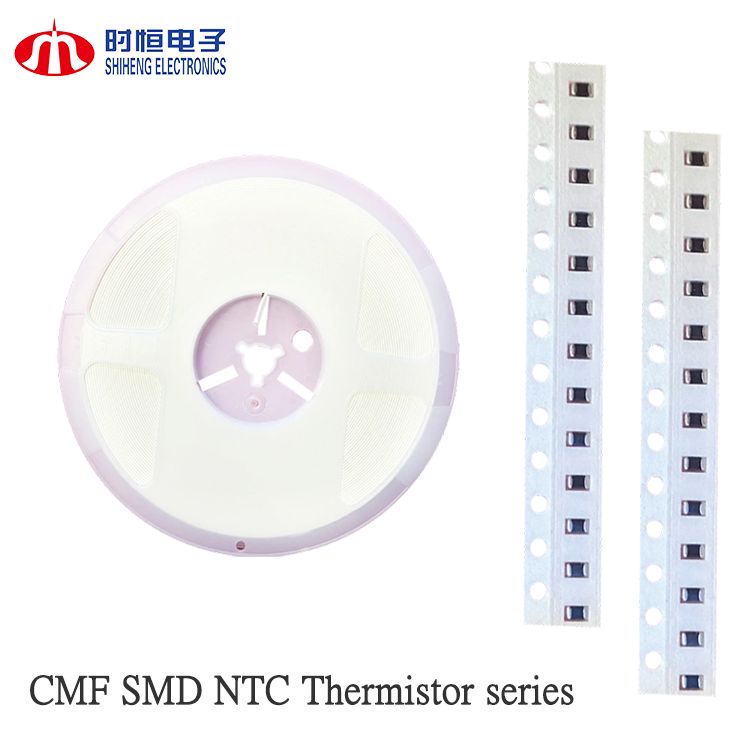

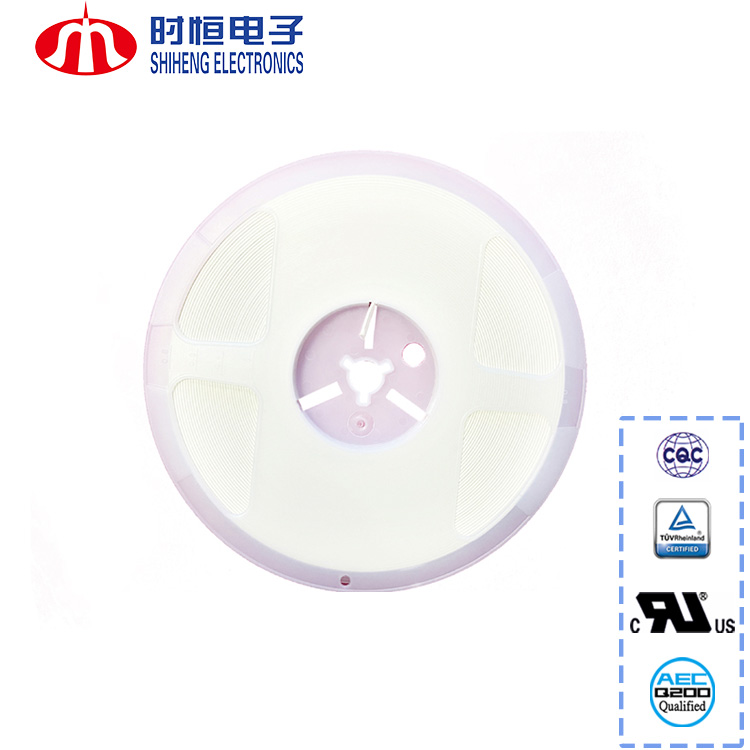

Product Display

Product Specifications

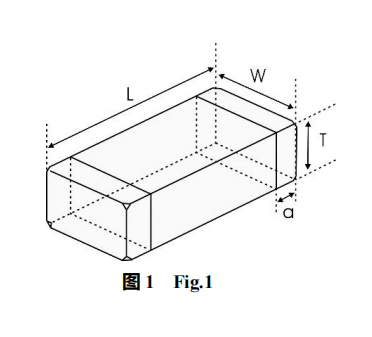

Type (mm) L W T a A B C 0201 0.024±0.002 [0.6±0.05] 0.012±0.002 [0.3±0.05] 0.012±0.002 [0.3±0.05] 0.006±0.002 [0.15±0.05] [0.2-0.3] [0.25-0.35] [0.25-0.35]

Type（mm) L W T a A B C 0402   0.039±0.006 [1.0±0.15] 0.020±0.006 [0.5±0.15] 0.020±0.006 [0.5±0.15] 0.010±0.004 [0.25±0.1] [0.45-0.55] [0.4-0.5] [0.45-0.55]

Type（mm) L W T a A B C 0603 0.063±0.006 [1.6±0.15] 0.031±0.006 [0.8±0.15] 0.031±0.006 [0.8±0.15] 0.012±0.008 [0.3±0.2] [0.6-0.8] [0.6-0.7] [0.6-0.8]



Type（mm) L W T a A B C 0805 0.079±0.008 [2.0±0.2] 0.049±0.008 [1.25±0.2] 0.033±0.008 [0.85±0.2] 0.020±0.012 [0.5±0.3] [1.0-1.1] [0.6-0.7] [1.0-1.2]



Type（mm) L W T a A B C 1206 0.126±0.008 [3.20±0.2] 0.063±0.008 [1.60±0.2] 0.033±0.008 [0.85±0.2] 0.020±0.012 [0.50±0.3] [1.8~2.5] [1.0~1.5] [1.2~2.0]

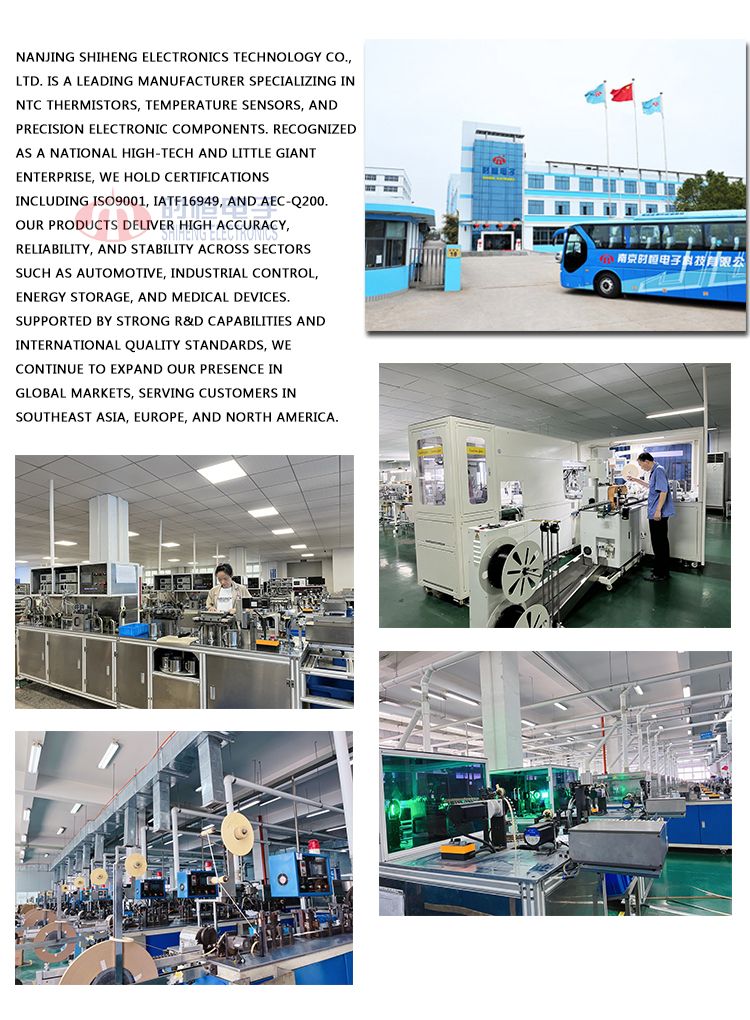

Why Choose us?
