MF51 Series Glass-sealed Temperature Measurement NTC Thermistor with Transparent Sleeve

The MF51 serise R25(Ω):2K~1500K



  • Item No :

    MF51
  • Zero Power Resistance at 25℃ :

    2-1500Ω
  • B Value at 25/50°C :

    3380 3435 3470,3600,3950,4050,4250k
  • Temperature Range :

    -40~+250℃
  • Thermal dissipation Coefficient :

    1.5mW/ ℃
  • Thermalcooling time constant :

    5sec
  • Maximum rated power :

    35mW
  • Insulation resistance :

    ≥10MΩ
  • Withstand voltage :

    500V/AC 1min ,No breakthrough and flash over

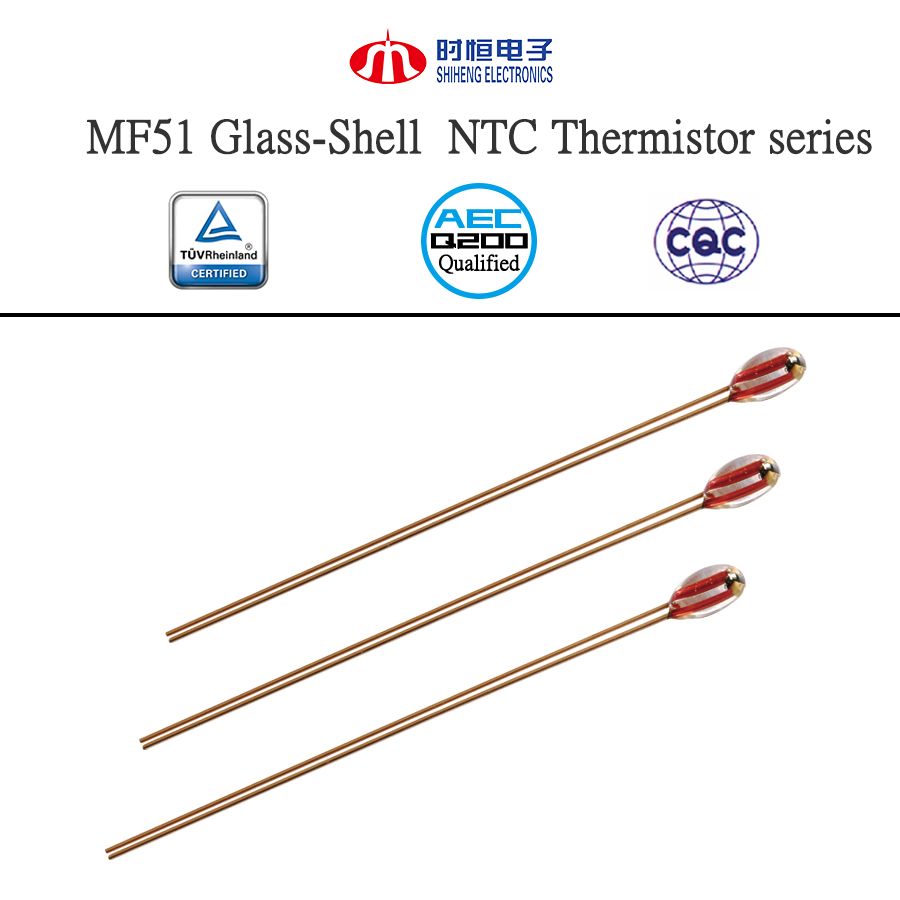

MF51 Series Glass-sealed Temperature Measurement NTC Thermistor

Product Description

The MF51 series is a thermistor with a glass-encapsulated head. It has small size, high test accuracy and fast response speed.



Product Features

    1.Application scope:

        ●Air conditioning and heating equipment.

        ●Electronic thermometer.

        ●Liquid level sensor.

        ●Automotive electronics.

        ●Electronic desk calendar.

    2.Features:

        ●Air conditioning and heating equipment.

        ●Electronic thermometer.

        ●Liquid level sensor.

        ●Automotive electronics.

        ●Electronic desk calendar.

Product Display



Product Specifications



Normal dimension table(mm)
Part No. D H L d
MF51-A 2.0±0.2 3.8±0.5 65±2.5 0.3±0.02
MF51-B 1.6±0.2 3.2±0.5 65±2.5 0.25±0.02
MF51-C 1.2±0.2 2.4±0.5 65±2.5 0.20±0.02



Why Choose us?

20+ Years Industry Experience

Founded in 2002. Four self-built factories.

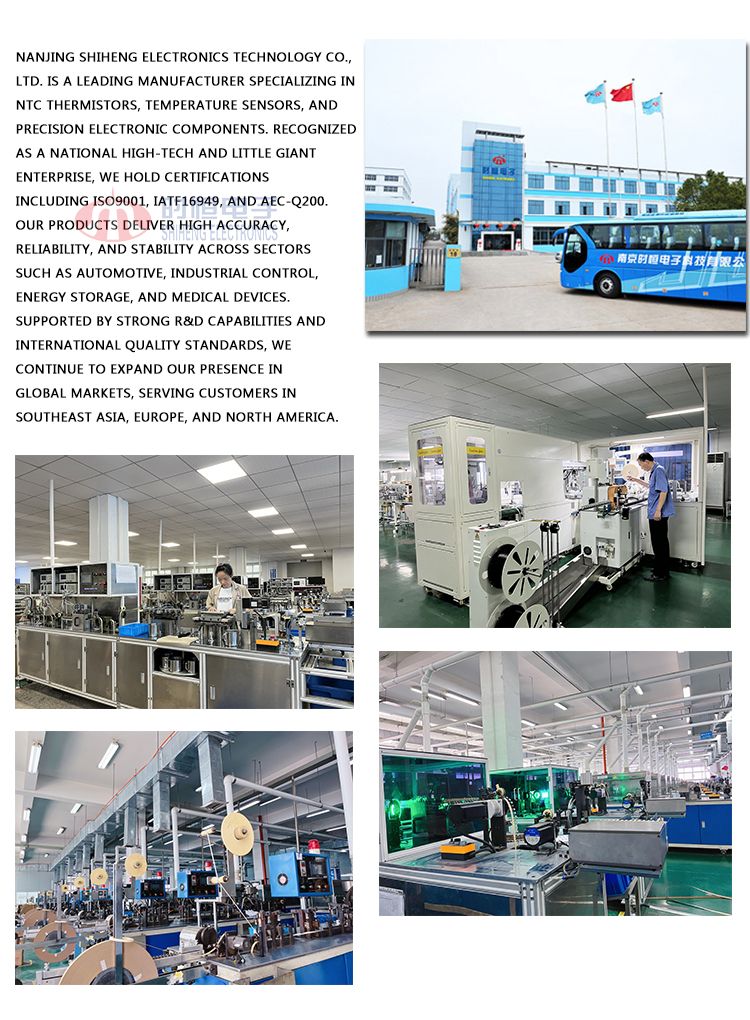

Nanjing Shiheng Electronic Technology Co., Ltd.is a national high-tech enterprise integrating research and development, production and sales.Sensitive components such as PTC thermistors and zinc oxide varistors,among which NTC thermistor series products cover surge suppression, temperature compensation, precision temperature measurement, temperature control and other applications.The company's registered trademark is "Jiangsu Famous Brand", and itsproducts are "Nanjing Famous Brand Products". As a key enteprise in the industry, Shiheng Electronics was designated by the industry association to participate in the drafting of thenational "13th Five-Year Plan" and "14thFive-Year Plan".
