The sensing head of CWF3 is a plastic shell, cylindrical, one-way lead-out, and resin-potted insulating structure.
Item No :
CWF 3Resistance Tolerance :
F±1%,G:±2%, H:±3%,J:±5%,K:±10%Resistance Value :
1K, 5K, 10K, 50K, 100K, 15KB Value at 25/50°C :
3950K, 3435K, 3470K, 4000K,4050KWithstand voltage :
1500V/ACTemperature Range :
-40~200℃Cable material :
PVC TPE PFA TPE Support CustomizedProbe Material :
plasticCertificate :
ISO9001 ROHS REACH ISO14001 IATF16949Country of Origin :
ChinaCWF3 Precision NTC Temperature Sensor Series
Product Description
The sensing head of CWF3 is a plastic shell, cylindrical, one-way lead-out, and resin-potted insulating structure.
Product Features
● The assembly method is simple and firm.
● Resistance value and B value can be determined according to customer needs.
● Hardware and wires can be customized.
Installation method:
a) For use, use general soldering methods and install with epoxy resin potting (encapsulation);
b) For vibration and impact tests, install by clamping the housing and wires.

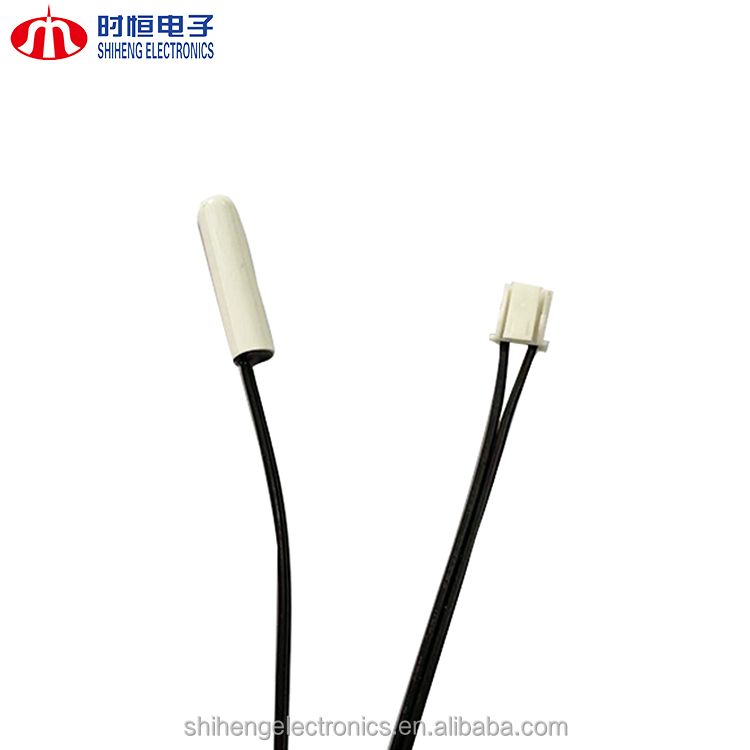

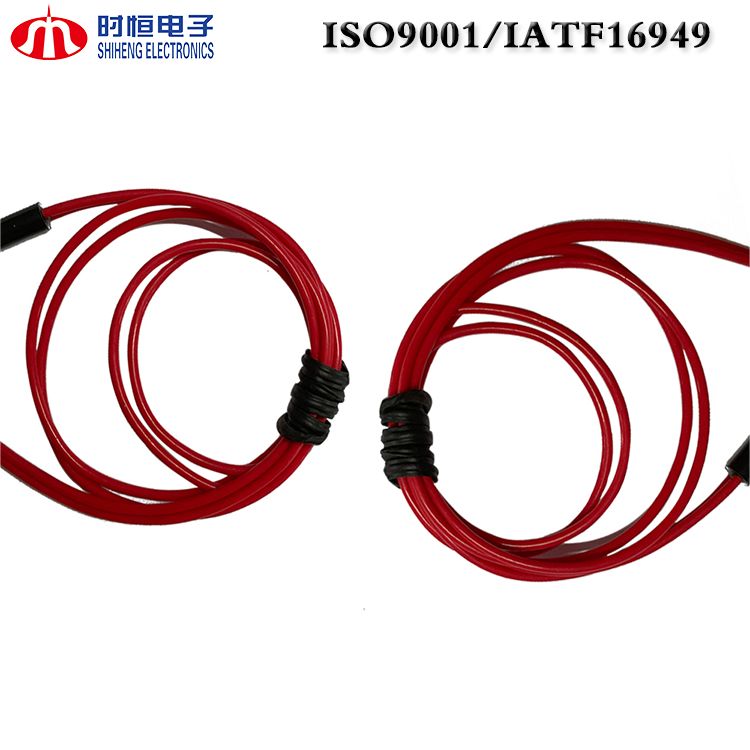

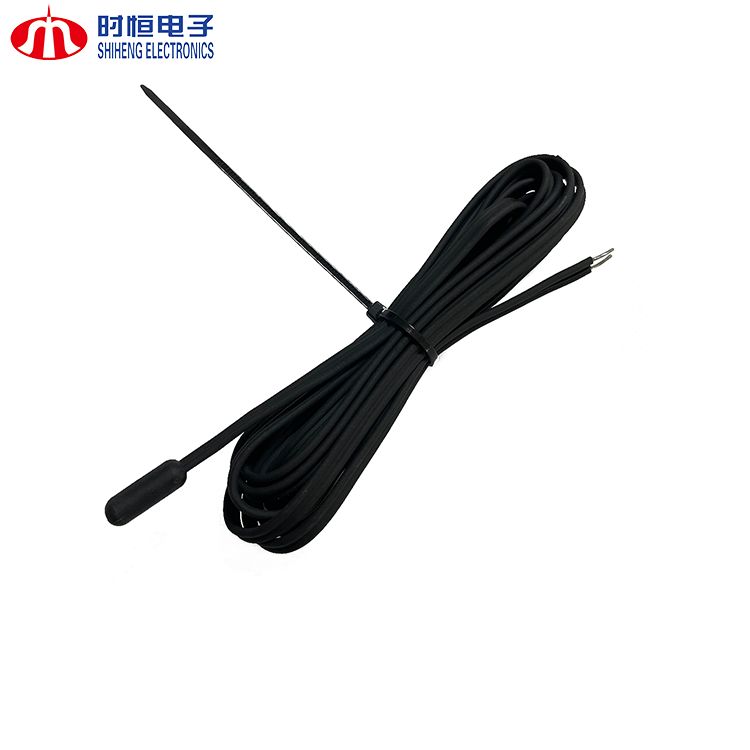

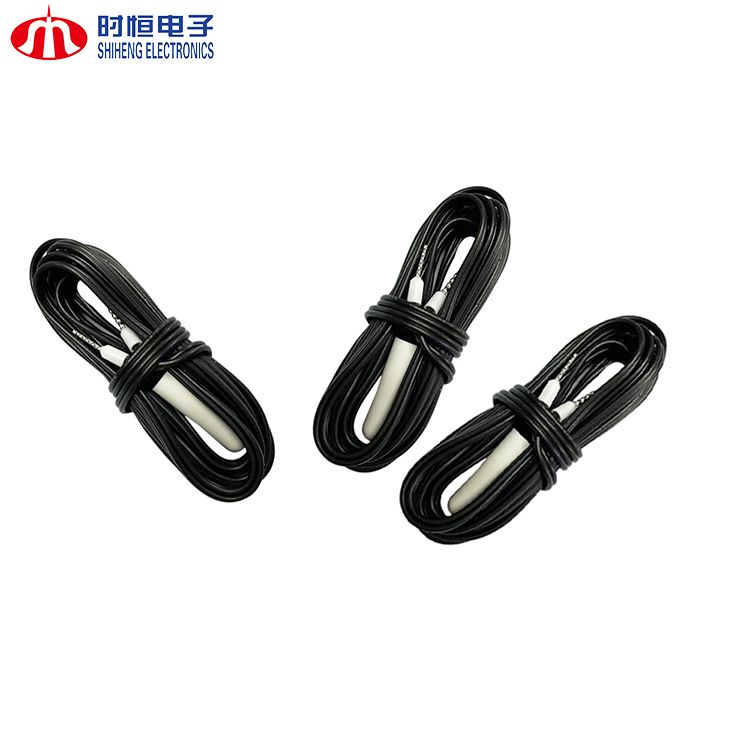

c)Φ diameter hole locking or wire harness fixing.Product Display

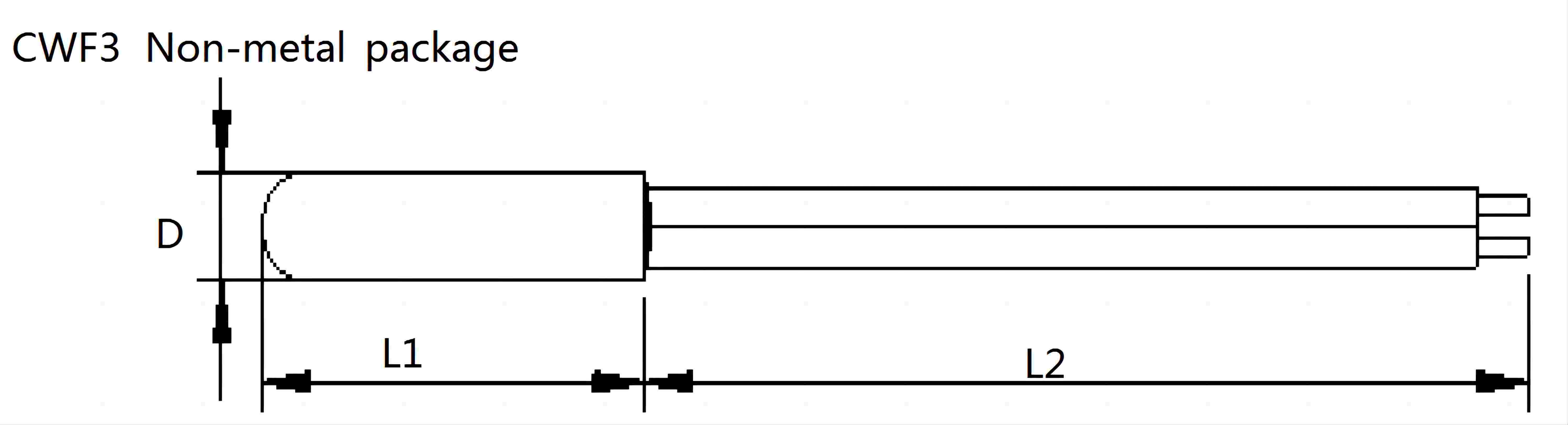

Product Specifications
NO | D | L1 | L2 |
CWF3 |
3.5/4 /5 /6 | 15/20 | Customized |
CWF3 |
4/8 |
10/35/50 | Customized |
Why Choose us?

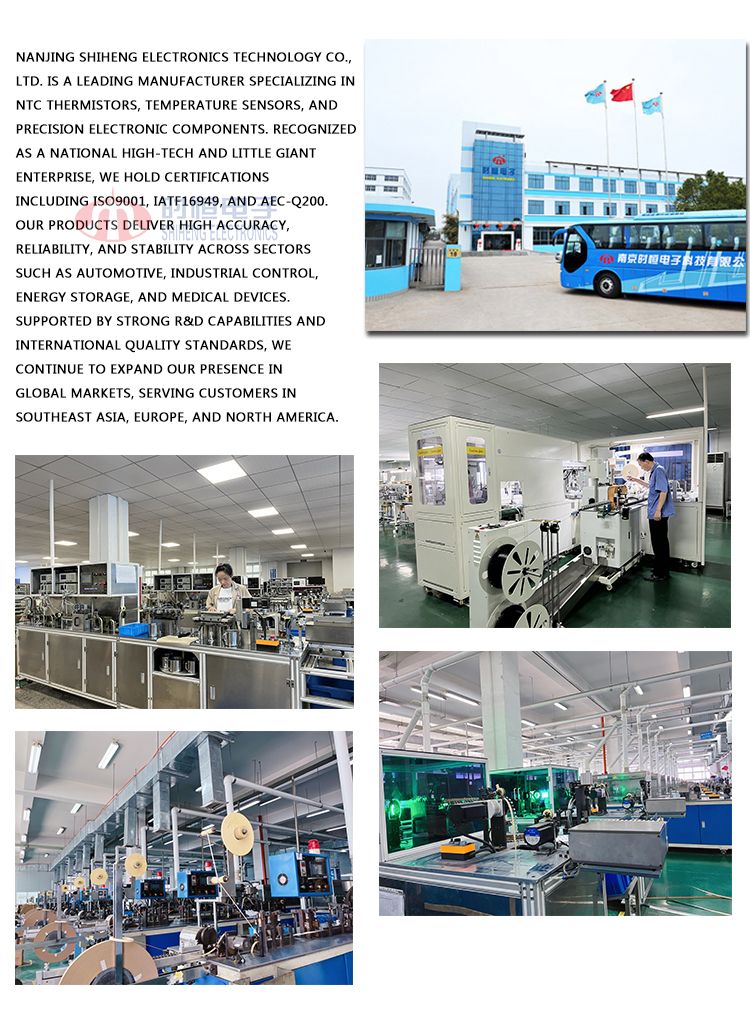

20+ Years Industry Experience
Founded in 2002. Four self-built factories.
Nanjing Shiheng Electronic Technology Co., Ltd. has a wide range of NTC thermistors and PTC, complete series, various packaging forms, and various shapes and structures, which are convenient for users to use and install. It has complete high-level inspection and testing equipment and implements strict and standardized testing procedures and standards.
The products have outstanding advantages and distinctive features such as high precision, high reliability, high stability, high interchangeability, and high versatility, and their performance is at the leading level in the industry. (The highest temperature measurement accuracy can reach ±0.02℃) (Annual drift rate ≤1%)
