CWF4 NTC Temperature Sensor OT Nickle-plated cooper Thermistor For Charging Pile

The sensor head of CWF4 is a metal shell with a fixed metal piece, special shape.



  • Item No :

    CWF 4
  • Resistance Value :

    1K, 5K, 10K, 50K, 100K, 15K
  • Resistance Tolerance :

    F±1%,G:±2%, H:±3%,J:±5%,K:±10%
  • B Value at 25/50°C :

    3950K, 3435K, 3470K, 4000K,4050K
  • Cable material :

    PVC TPE PFA TPE Support Customized
  • Withstand voltage :

    1500-3000V/AC
  • Temperature Range :

    -40~200℃
  • Certificate :

    ISO9001 ROHS REACH ISO14001 IATF16949
  • Probe Material :

    special shape of the fixed metal piece
  • Country of Origin :

    China

CWF4 Precision NTC Temperature Sensor Series

Product Description

The sensor head of CWF4 is a metal shell with a fixed metal piece, special shape. It is a special shape with fixed metal sheet, one-way lead-out, and resin-coated (potted) insulating structure.

Product Features

  1.  Application scope: Measuring evaporator temperature changes.
  2.  Features:

    ● Temperature control response speed is fast.

    ● The product is moisture-proof and waterproof.

    ● Resistance value and B value can be determined according to customer needs.

  3. Installation method:

      a) For use, use general soldering methods and install with epoxy resin potting (encapsulation);

      b) For vibration and impact tests, install by clamping the housing and wires.

      c)Bolted.

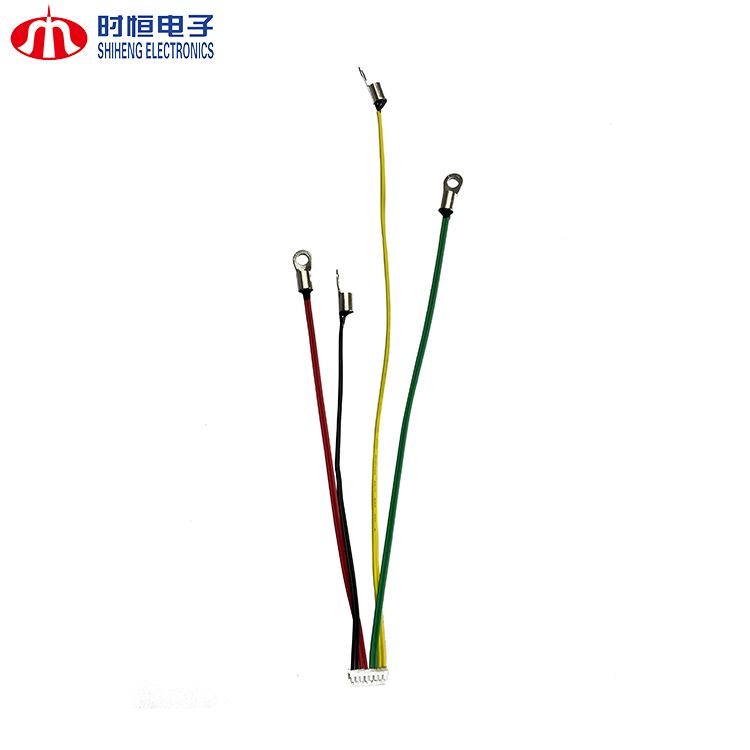

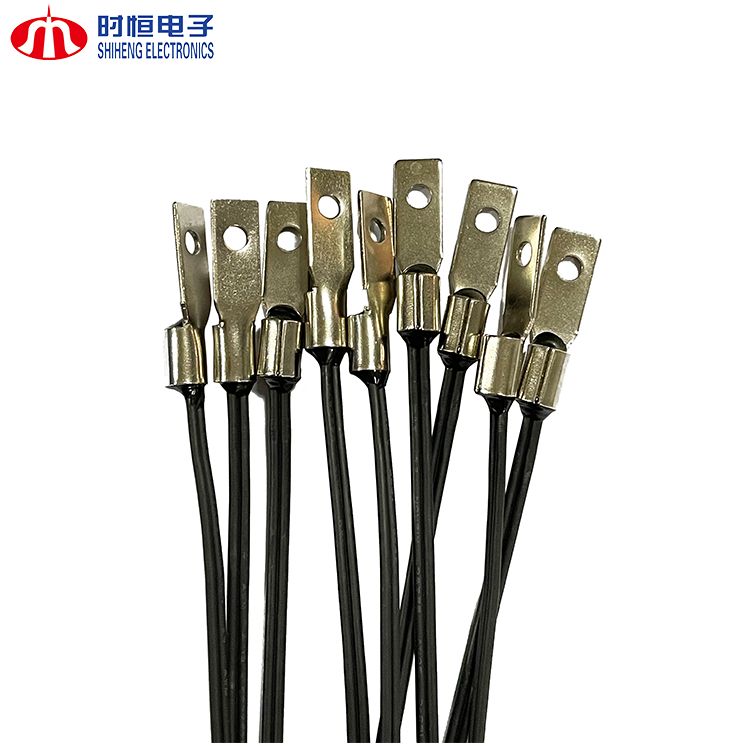

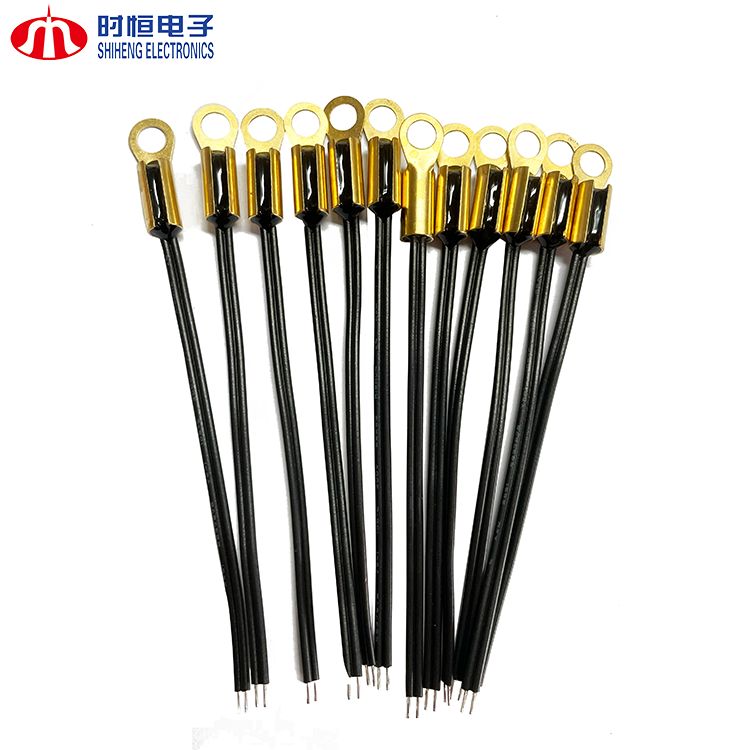

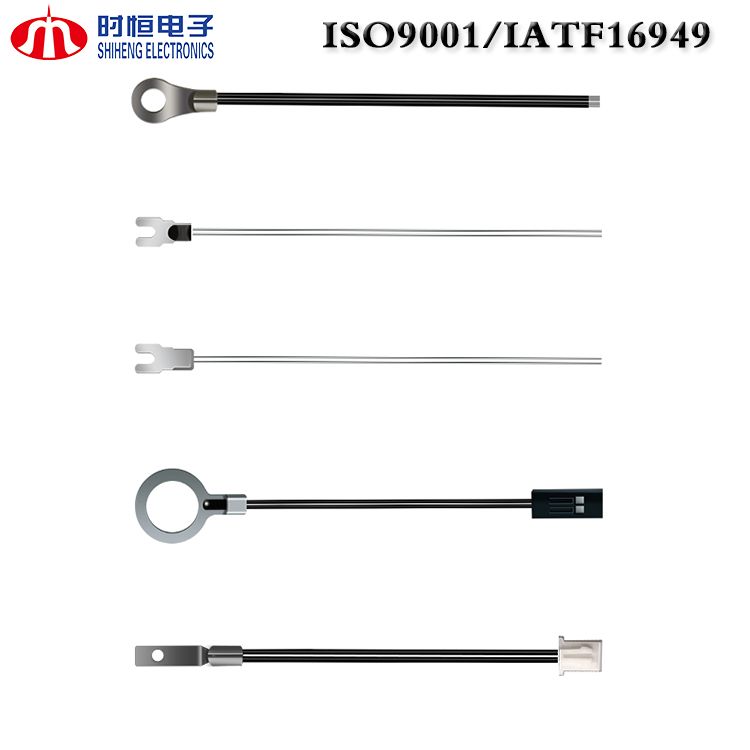

Product Display



Temperature Sensor

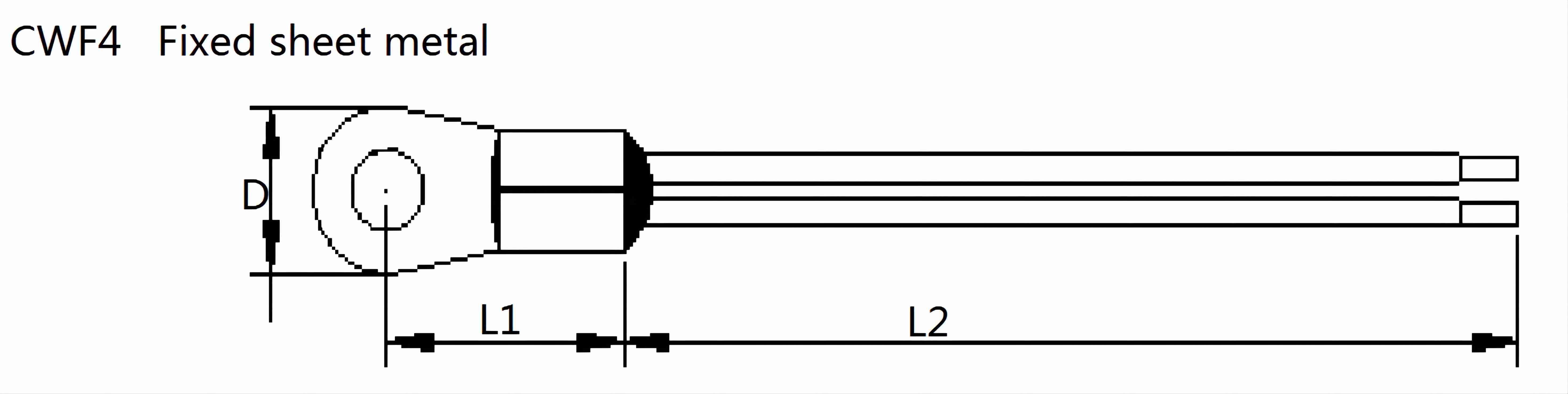

Product Specifications

CWF4 OT Nickle-plated cooper

NO D L1 L2

CWF4

Customized Customized Customized





Why Choose us?

20+ Years Industry Experience

Founded in 2002. Four self-built factories.

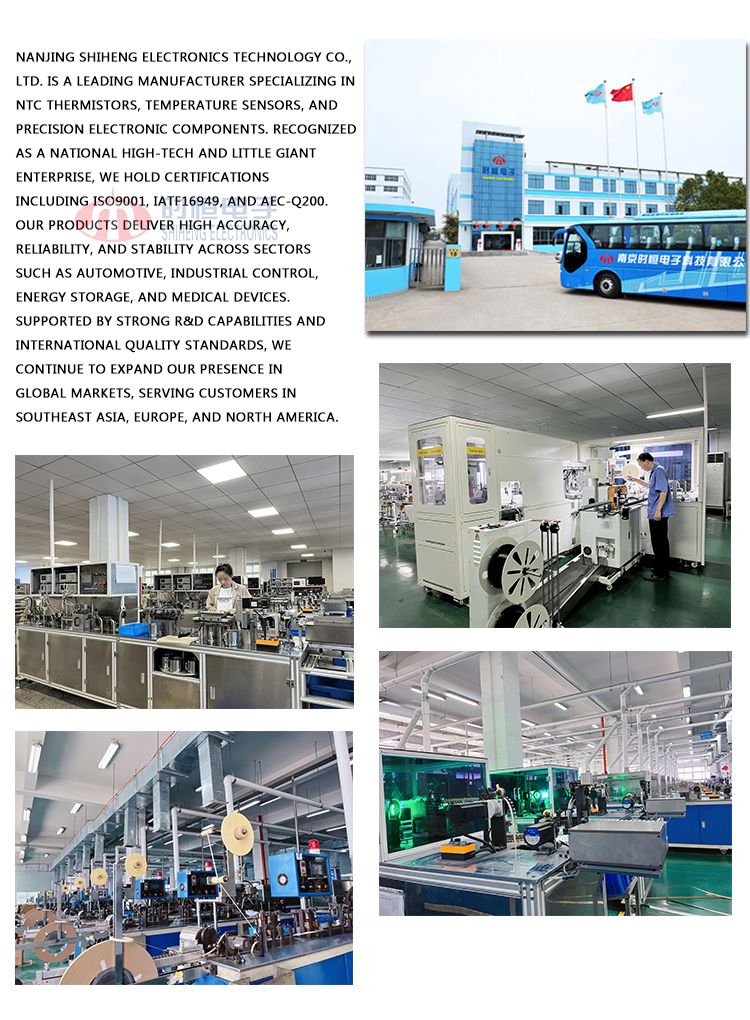

Nanjing Shiheng Electronic Technology Co., Ltd. has a modern production plant of 25,000 square meters, a full set of automated production equipment, and complete special testing instruments. It has an annual production capacity of more than 4.8 billion pieces of various sensitive electronic components. All products are environmentally friendly produced in accordance with the EU RoHS directive. The main products have passed CQC mark certification, German TUV certification and American UL and C-UL safety certification. Automotive-grade MF52, MF51, MF58 and MF59 series products have passed AEC-Q200 testing. MF58 series products have passed the 100,000-time durability test in the UL standard.

The company's research center covers an area of 1,700 square meters and has more than 50 sets of various test and analysis equipment and instruments, providing strong support and reliable guarantee for the continuous advancement of product technology, continuous updating of processes, and continuous improvement of performance and quality. .

Shiheng Electronics has 62 authorized and accepted patents, including 13 invention patents.
