Temperature Sensor

CWF Series Temperature Measurement Sensor NTC

CWF precision direct heating negative temperature coefficient temperature sensor, for detecting temperature.

Item No :
CWF
Resistance Value :
1K-2000K
B Value at 25/50°C :
3380 3435 3470,3600,3950,4050,4250k
Cable material :
PVC TPE PTFE FEP Support Customized
Withstand voltage :
1500-3000V/AC
Temperature Range :
-40~+200℃
Probe Material :
Epoxy Resin/Metal/ABS/Customized
Certificate :
ISO9001 ROHS REACH ISO14001 IATF16949
Country of Origin :
China

Inquiry now

product introduction

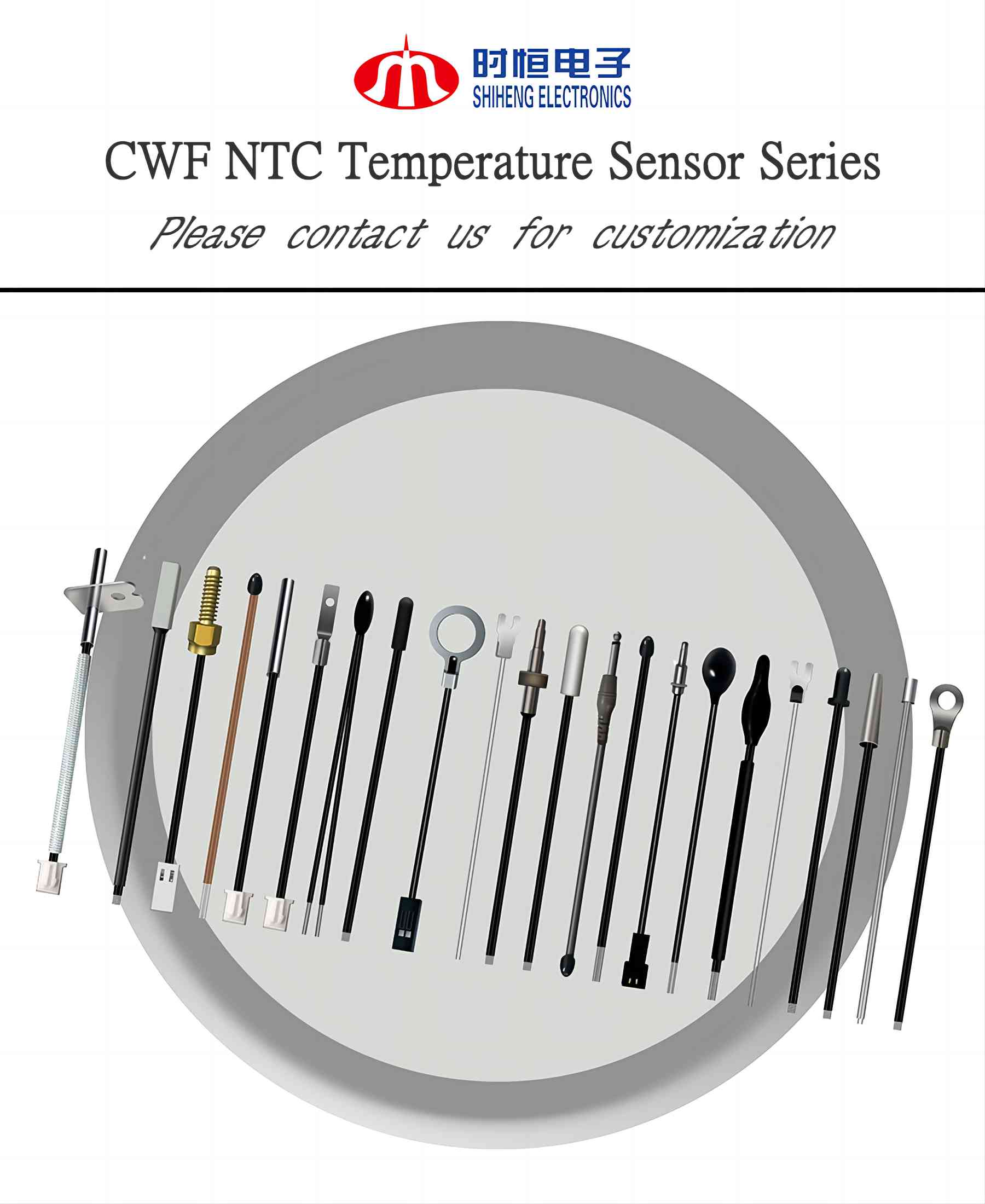

CWF Precision NTC Temperature Sensor Series

Product Description

Discover the simplicity and precision of our NTC Temperature Sensor, an essential component for accurate temperature measurements. Crafted with a focus on reliability and functionality, our sensor offers a dependable solution without compromising on performance.

Product Features

Application scope: energy storage, temperature measurement and control in automobiles, medical care, power tools, household appliances, communication information, industrial automation and other occasions.
Features:
● High sensitivity and fast response speed.

● Product performance is stable and can work for a long time

● Adopting injection molding process, it has good insulation, sealing, mechanical resistance and bending resistance!
Installation method:

a) For use, use general soldering methods and install with epoxy resin potting (encapsulation);

b) For vibration and impact tests, install by clamping the housing and wires.

Product Display

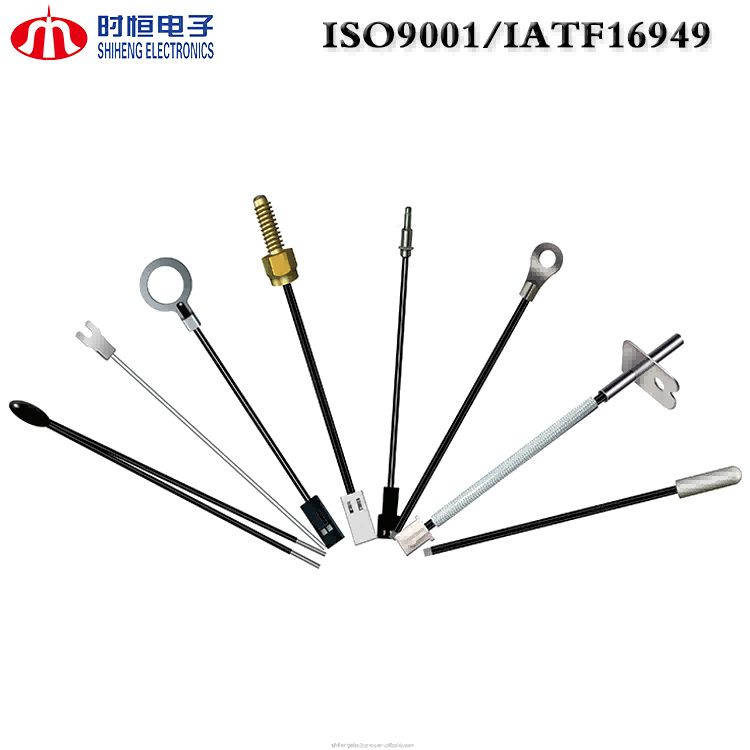

Temperature Sensor

Product Specifications

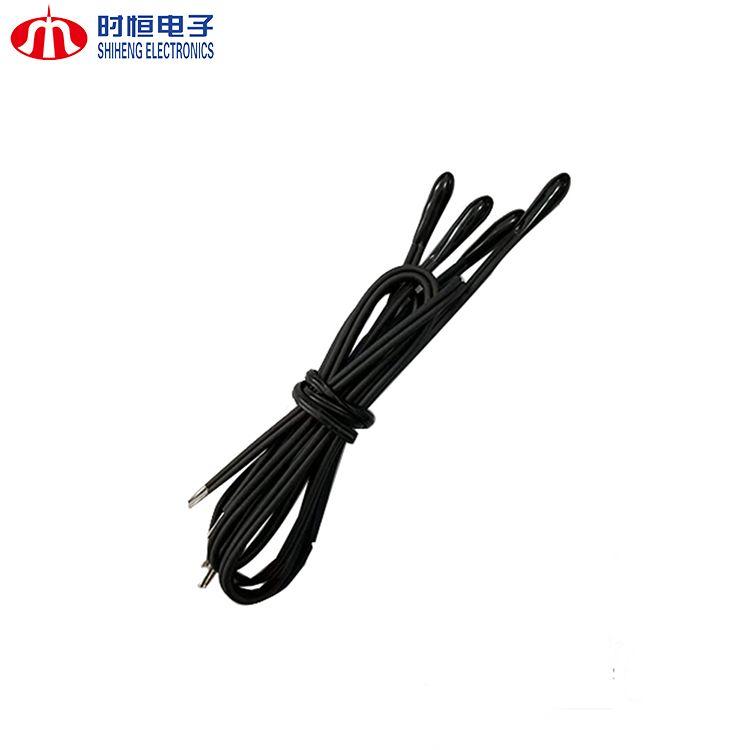

CWF1	encapsulated with epoxy resin
CWF2	metal cylindrical
CWF3	plastic cylindrical

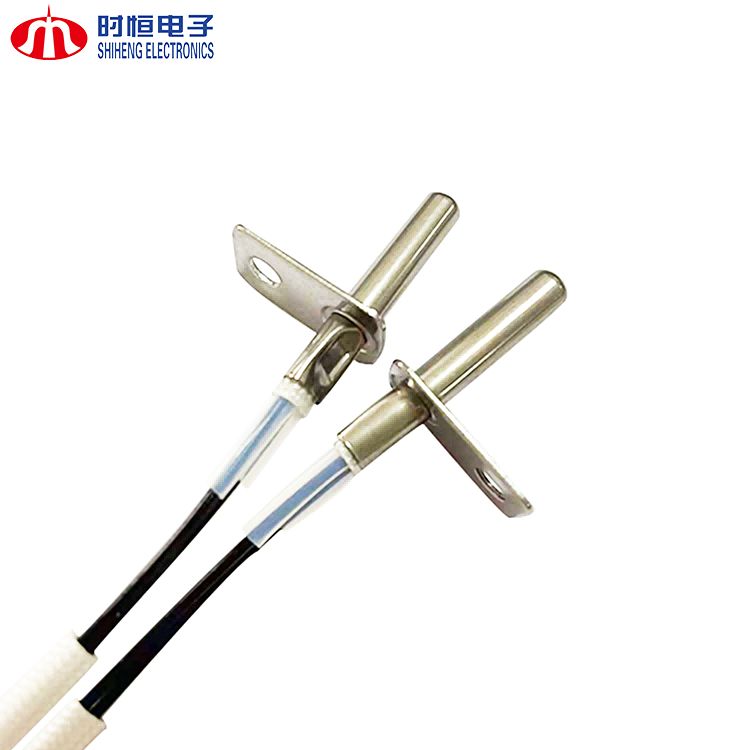

CWF4	special shape with a metal shell and a fixed metal piece
CWF5	metal shell, special shape

Type	NTC Temperature Sensor
Resistance	1K~5M Ω（1k 5k 4.7k 10k 20k 30k 50k 100k 150k 200k 300k Customized
Beta Value	3380k 3435k 3500k 3950k 4050k 4150k 4250k 4450k Customized
Housing	Cooper/Stainless/aluminum/Brass/Plastic/Nylon/Others Customized
Wire	20/22/24/26/28/30/32AWG PP/PVC/PTFE/PFA/TPE/FEP Customized
Connector	JST/SYP/MOLEX/DUPONT/TE Customized
Installation	Flanged/Surface/Threaded/Plastic/Straight/Film/LUG/SMD/THT Customized
Accuracy	0.1% 0.5% 1% 2% 3% 5% 10% Customized
Temperature range	-40~300 Customized
Wire Length	10mm~10000mm Customized

Why Choose us?

20+ Years Industry Experience

Founded in 2002. Four self-built factories.

R&D team of more than 50 people
Provide one-to-one customized service.
Highly automated mass production line
High-quality and cost-effective solutions.
Full range of self-developed products
One-stop NTC customizable solutions.

Nanjing Shiheng Electronic Technology Co., Ltd.is a national high-tech enterprise integrating research and development, production and sales. Sensitive components such as PTC thermistors and zinc oxide varistors, among which NTC thermistor series products cover surge suppression, temperature compensation, precision temperature measurement, temperature control and other applications. The company's registered trademark is "Jiangsu Famous Brand", and its products are "Nanjing Famous Brand Products". As a key enterprise in the industry, Shiheng Electronics was designated by the industry association to participate in the drafting of the national "13th Five-Year Plan" and "14thFive-Year Plan".
