MF73 Power Direct Heating Negative Temperature Coefficient Thermistor

The MF73 series R25(Ω):0.2~25     Imax(A):80A.

  • Item No :

    MF73
  • Zero Power Resistance at 25℃ :

    0.2~25Ω
  • B Value at 25/50°C :

    2600~3200K
  • Max steady current :

    13~80A
  • Max allowable capacity value :

    11500μF
  • Maximum rated power :

    36W

MF73 Power Direct Heating Negative Temperature Coefficient Thermistor

Product Description

Power type NTC suppresses the surge current at startup. Its zero power resistance value suppresses the surge current at the moment of startup so that the surge current at the moment of startup will not be too large.

Product Features

    1. Application scope:Various high-power switching power supplies, UPS power supplies, conversion power supplies.

    2.Features:

        ● Reliable structure and easy to install.

        ● Strong ability to suppress surge current and absorb large energy.

        ● The working steady-state current is large.

        ● Long life and high reliability.

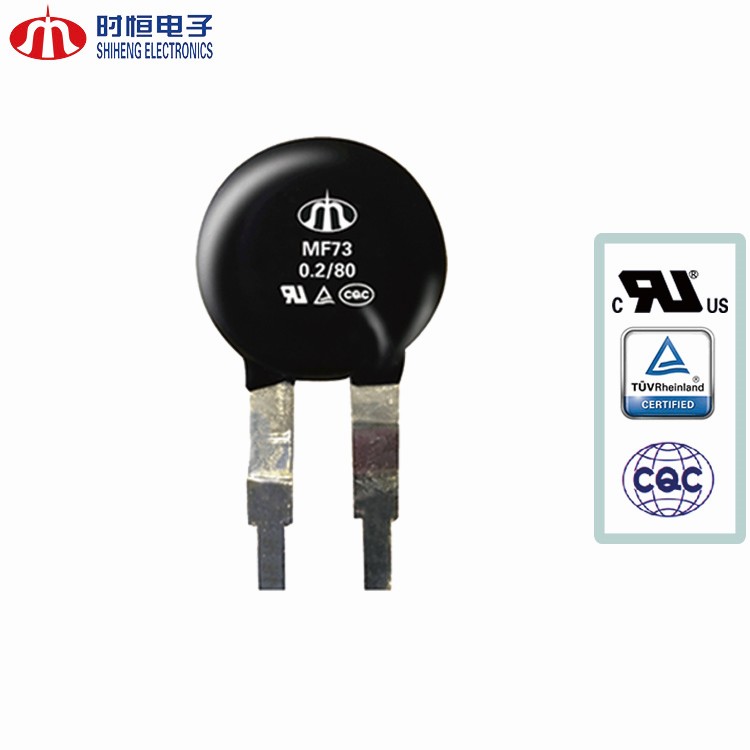

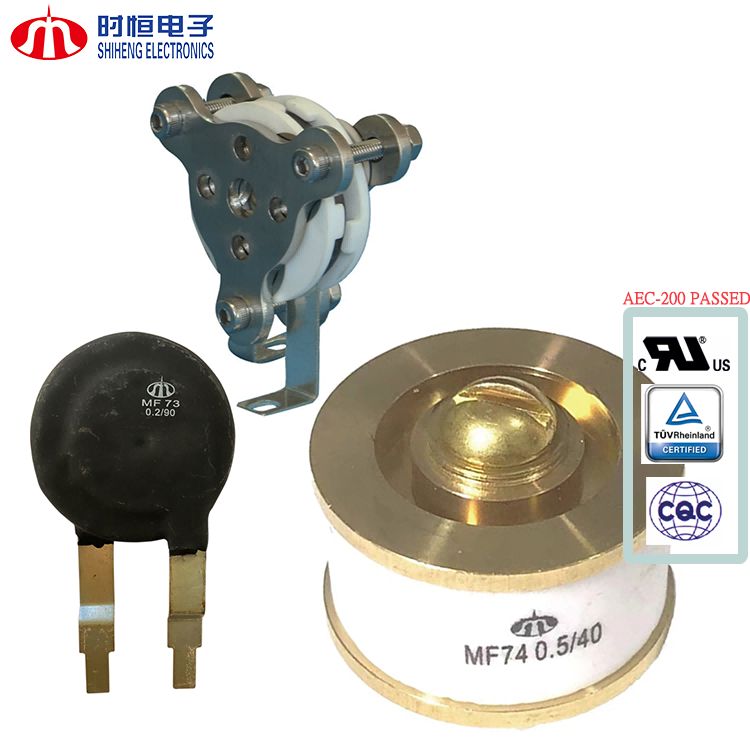

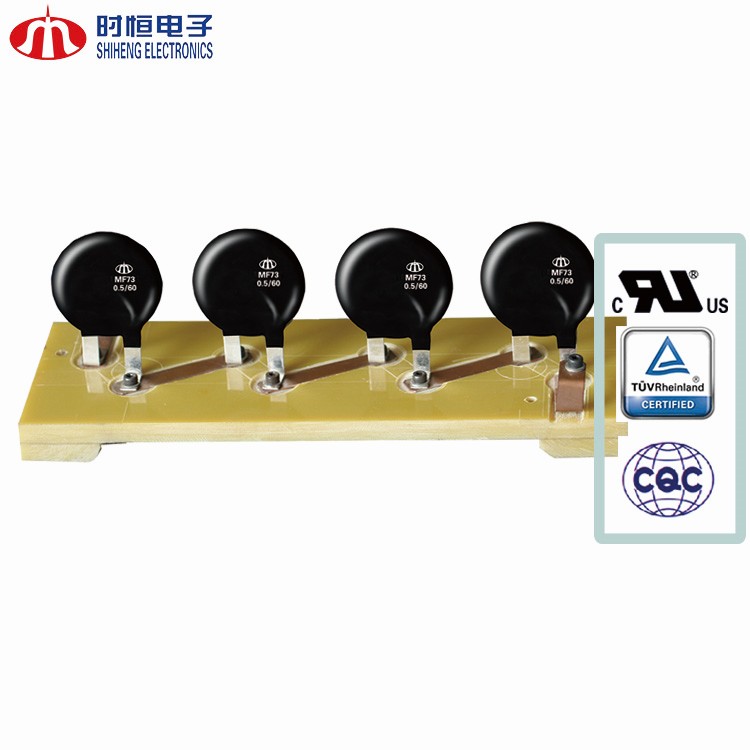

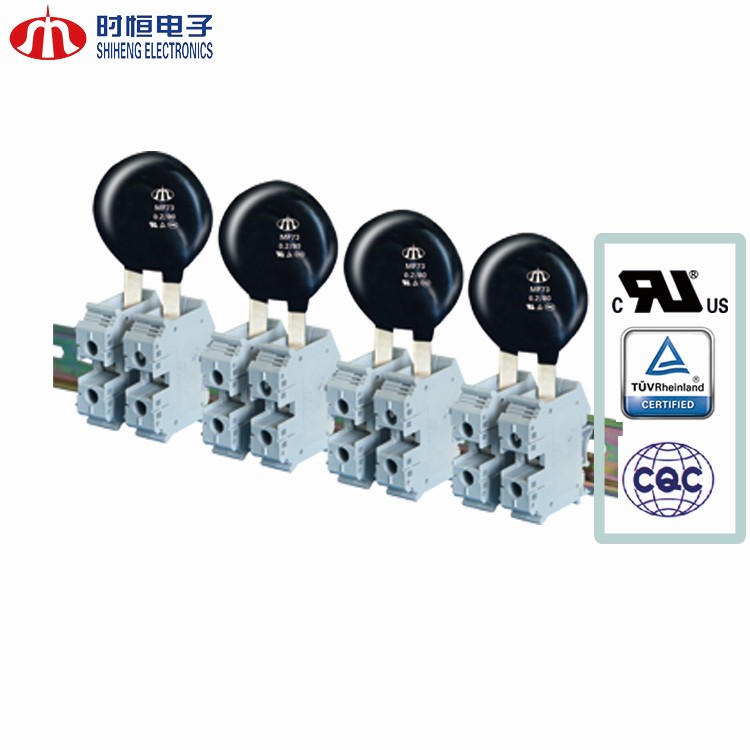

Product Display

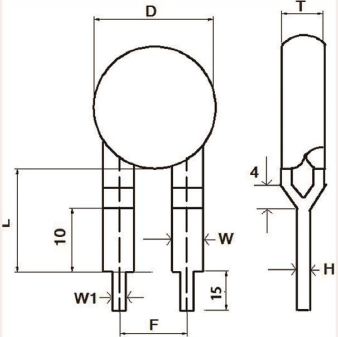

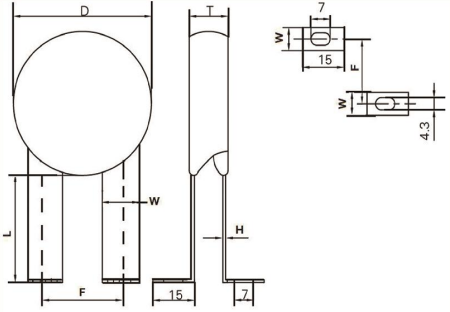

Product Specifications



Body size φ40 φ45 φ50
Dmax 45 50 55
Tmax 18 18 18
F±1.5 22.5 22.5 22.5
L±2 20 20 20
W±0.2 8 8 8
H±0.1 1.0 1.0 1.0





Body size φ40 φ45 φ50
Dmax 45 50 55
Tmax 18 18 18
F±1.5 22.5 22.5 22.5
L±2 20 20 20
W±0.2 8 8 8
H±0.1 1.0 1.0 1.0
W1±0.2 6 6 6

Why Choose us?

20+ Years Industry Experience

Founded in 2002. Four self-built factories.

The core component of all NTC temperature sensors, the high-performance temperature measuring NTC thermistor, is all produced in-house. It has a complete series and diverse structures, which can meet the precise temperature measurement in different temperature areas from low temperature to medium low temperature to medium and high temperature. These High-performance temperature measuring NTC thermistors have passed a series of safety certifications at home and abroad.
