High Power NTC Thermistor MF73T Series

The MF73T series R25(Ω):0.2~400 Imax(A):40A.

  • Item No :

    MF73T
  • Zero Power Resistance at 25℃ :

    1~400Ω
  • B Value at 25/50°C :

    2400~3400K
  • Max steady current :

    1~40A
  • Temperature Range :

    -40~200℃
  • Max allowable capacity value :

    8000μF
  • Thermal dissipation Coefficient :

    ≥55mW/℃
  • Thermalcooling time constant :

    ≤15sec
  • Maximum rated power :

    12W
  • Insulation resistance :

    ≥500MΩ
  • Withstand voltage :

    No breakthrough and flash over

High Power NTC Thermistor MF73T Series

Product Description

Power type NTC suppresses the surge current at startup. Its zero power resistance value suppresses the surge current at the moment of startup so that the surge current at the moment of startup will not be too large.

Product Features

    1. Application scope:

         ●High-power switching power supply, conversion power supply, UPS power supply

        ●High-power power battery charger, electric vehicle charger

        ●High-power LED lights, high-power electronic energy-saving lamps and other lighting fixtures

    2.Features:

         ● Small size, high power, strong ability to suppress surge current

        ●The material constant (B value) is large, the residual resistance is small, and its own power consumption is small

        ●High current, long life, high reliability

        ●Easy for circuit board installation, complete series, wide application range

    3.Installation method:

        a) For use, use general soldering method for installation;

        b) For vibration and impact tests, the leads are fixed and the fixed point is 6±1mm away from the resistor body.

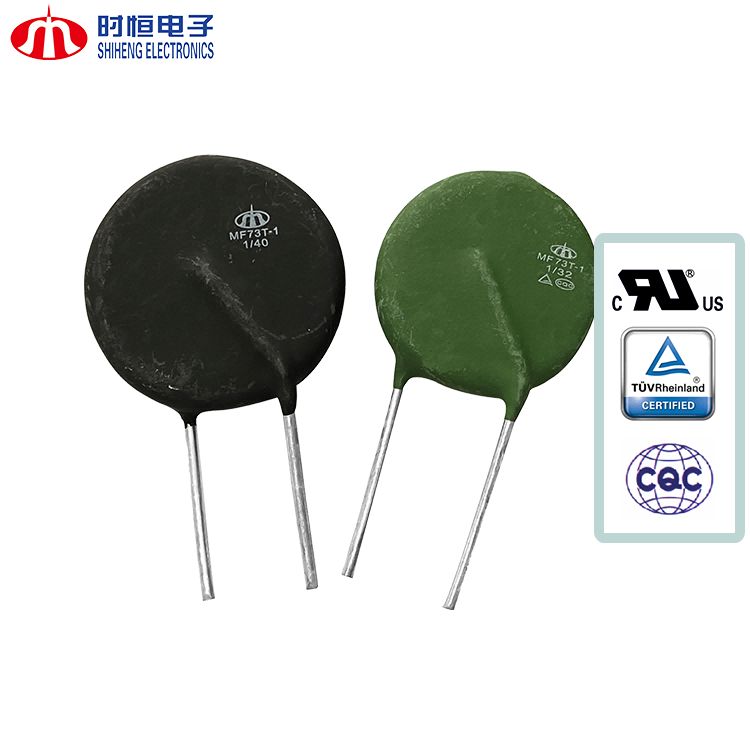

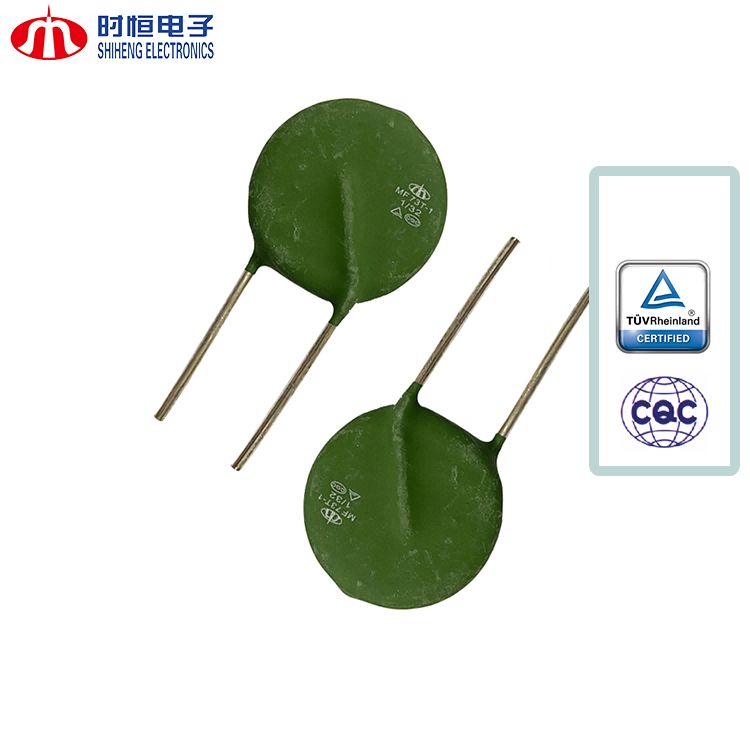

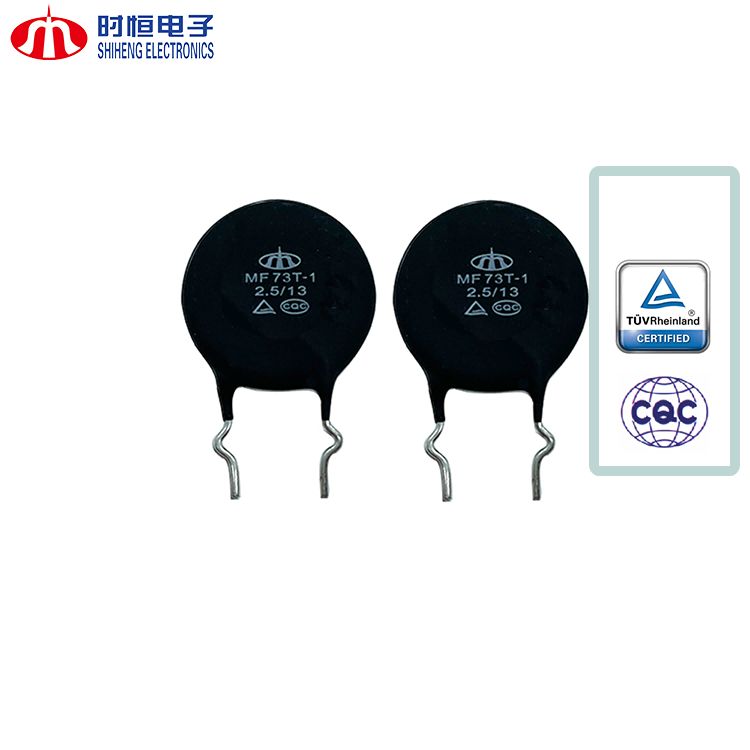

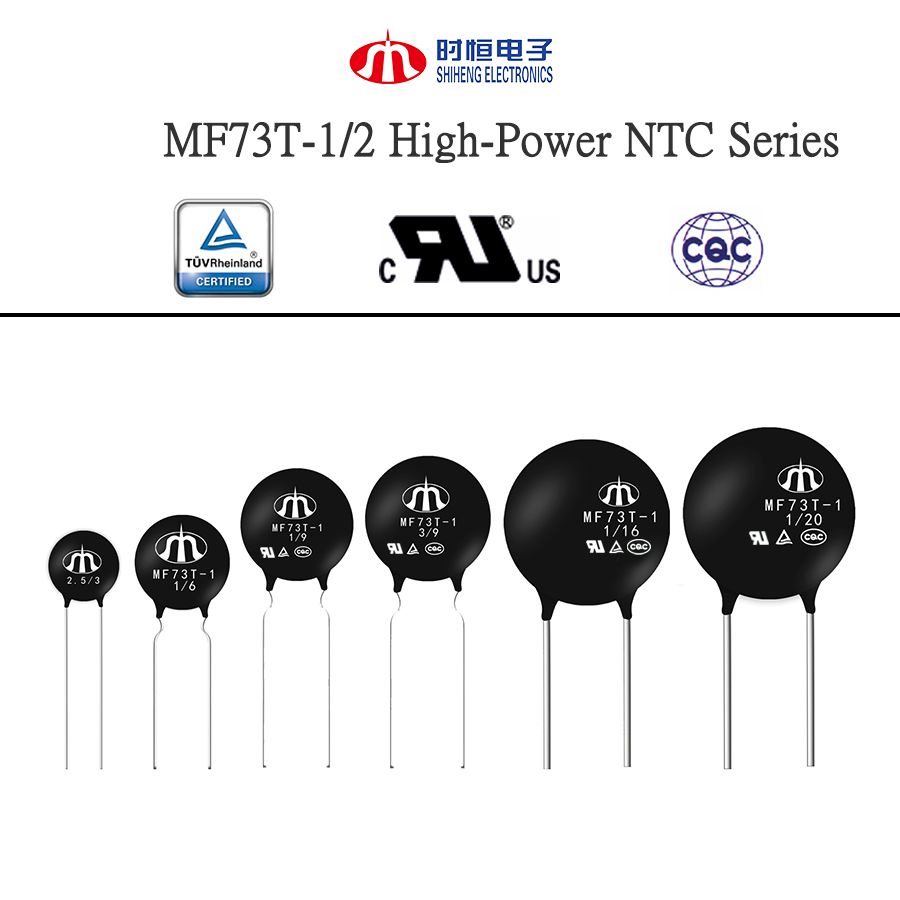

Product Display

Product Specifications

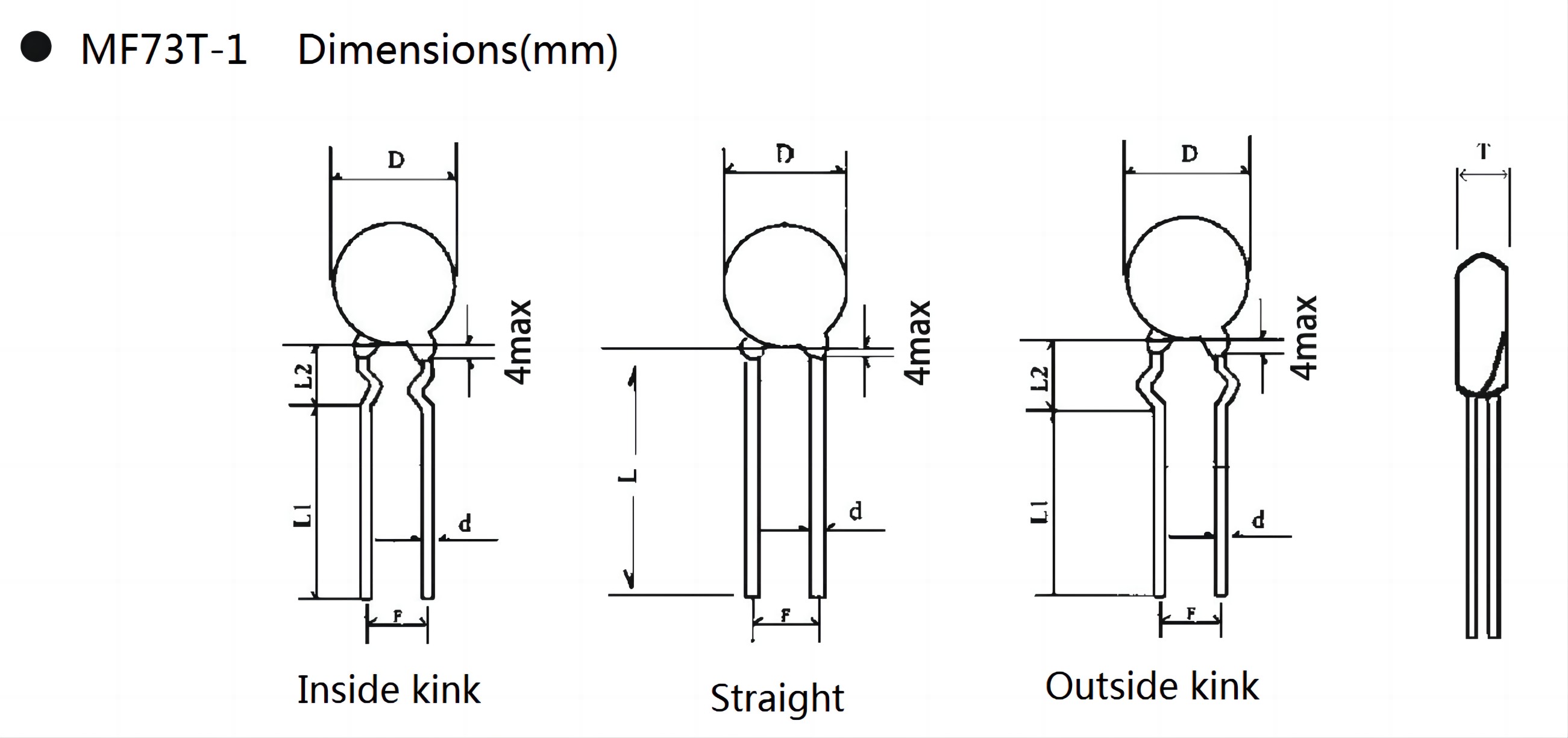

Body Dim φ3 φ5 φ7 φ8 φ10 φ13 φ15 φ20 φ25 φ30 φ35 φ40
Dmax 4.5 6.0 8.0 10.0 12.0 15.5 17.5 22.5 29 35 40 45
Tmax 4.5 5 5.0 5.5 5.5 6 6 7 8 10 12 12
F±1/1.5
(overφ30
2.5 2.5 5.0 7.5 7.5 7.5 7.5 10.0 10.0 18 18 18
d±0.05 0.45 0.45 0.6 0.8 0.8 0.8 0.8 1.0 1.0 1.6 2.0 2.0(2.6)
Lmin 25 25 25 25  25 25 25 25 25 25 25 25
L1min / / 17 17  17 17 17 17 17 / / /
Regular straight straight inside kink inside kink inside kink inside kink inside kink straight straight straight straight straight
Special / / straight straight straight straight straight outside kink outside kink

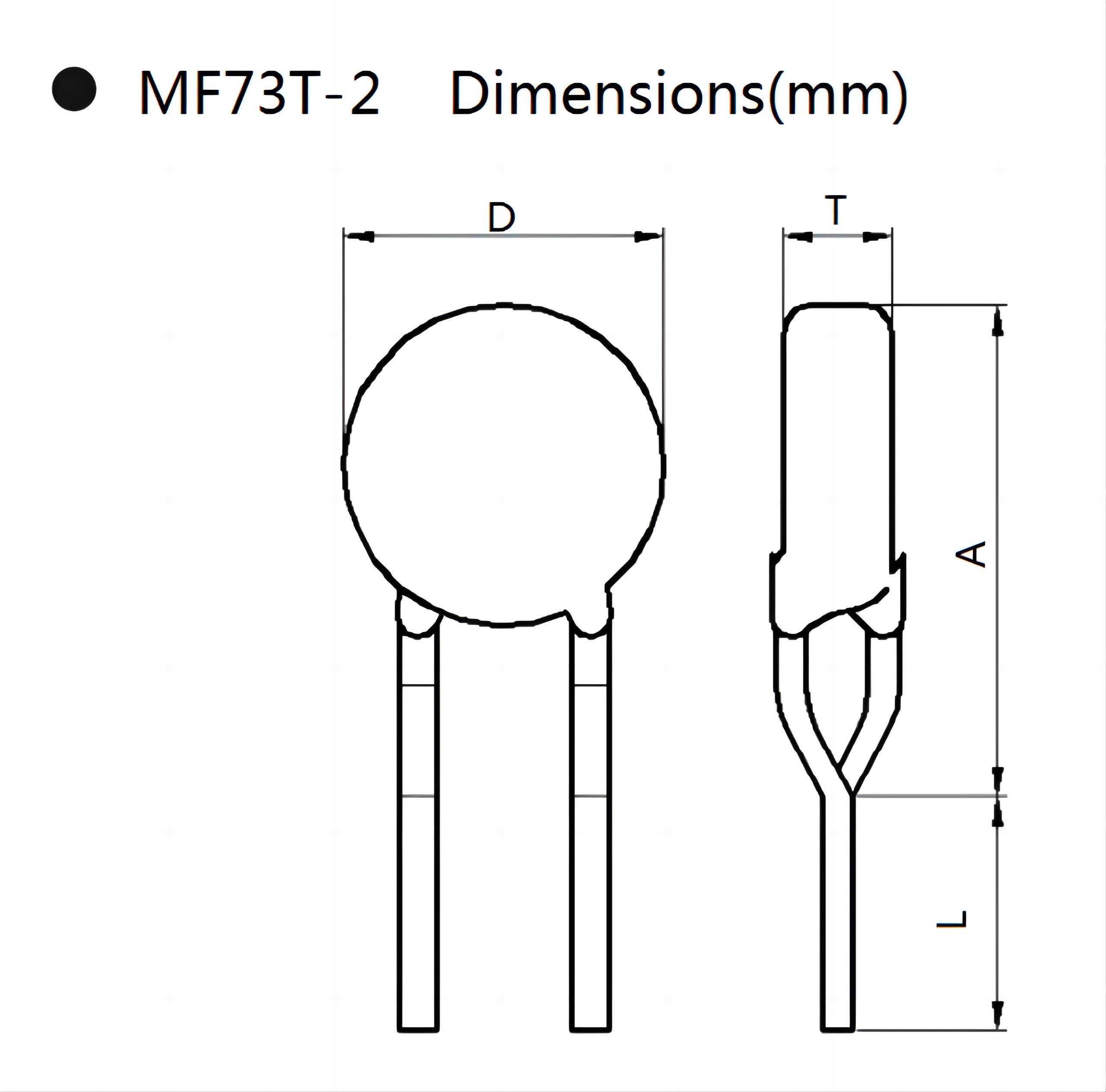

Body Dim(mm) φ20 φ25 φ30 φ35 φ40
Dmax 22.5 29 35 40 45
Tmax 10 12 15 18 18
F±1.5 10 10 18 18 18
d±0.05 1.2 1.2 1.6 2 2.0(2.6)
Lmin 17 17 17 17 17
Amax 38 40 55 58 60
Reqular Y kink Y kink Y kink Y kink Y kink

Why Choose us?

20+ Years Industry Experience

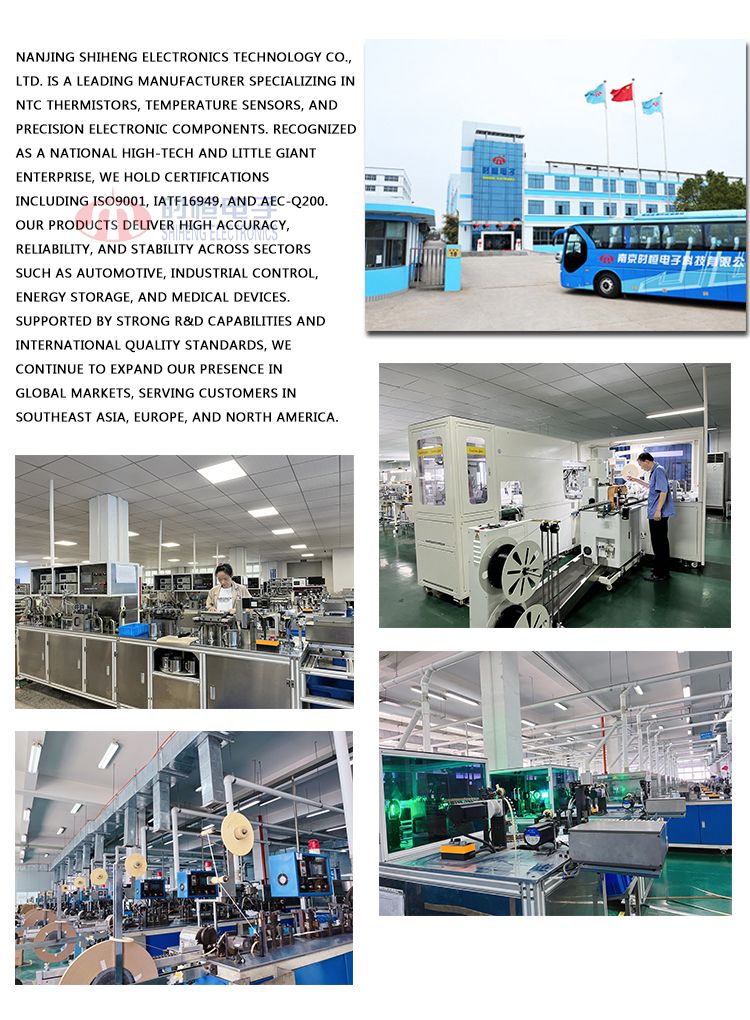

Founded in 2002. Four self-built factories.
