New horizontal NTC thermistor MF72 series
Product Description
The resistance chips of the new horizontal power NTC thermistor are welded to the leads on the upper and lower surfaces of the chip respectively. The leads are led out from the welding end of the chip in the same direction to form an extension section. After exceeding the range of the chip, they are bent downward to form a lower folding section. , the leads at the end of the lower folded section form the mounting end, and a protective shell is wrapped around the chip. The protective shell has a top plate, a side plate and a bottom plate. One of the side plates has an opening that is enough to plug in the resistor chip and the leads to form an opening. The space between the chip and the protective case is filled with thermally conductive glue.
Product Features
1. Application scope:
● Conversion power supply, switching power supply,
● UPS power supply
●Electronic energy-saving lamps, ballasts and various heaters
●Various types of picture tubes and monitorsIncandescent lamps, other lighting fixtures
2.Features:
● Height (T+B): 4.2mm.
●Unique “bump” design effectively ensures space and area for heat dissipation.
●Suitable for surface mounting and plug-in soldering processes.
●Can be used in various electronic products with low installation height requirements and small spacey.
3.Installation method:
a) For use, use general soldering method for installation;
b) For vibration and impact tests, the leads are fixed and the fixed point is 6±1mm away from the resistor body.

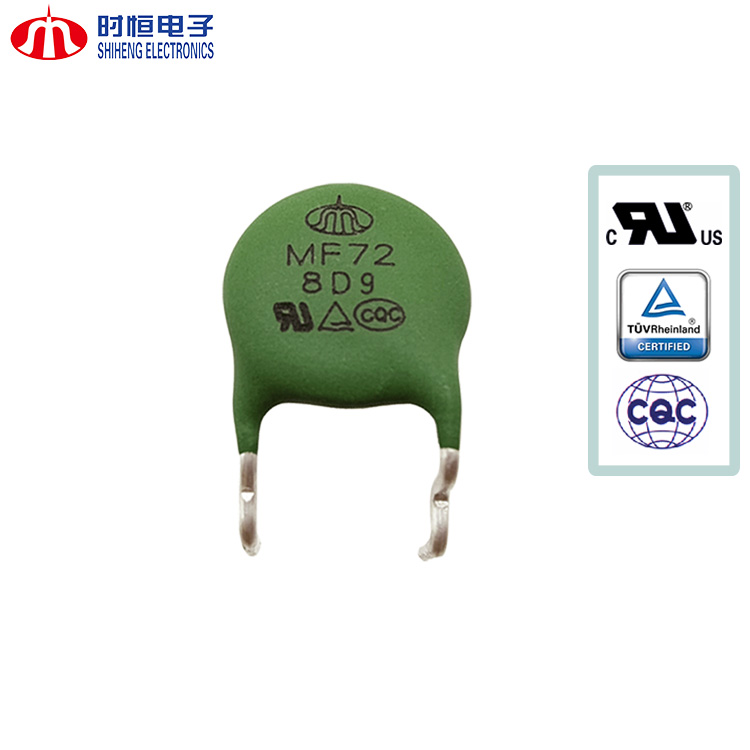

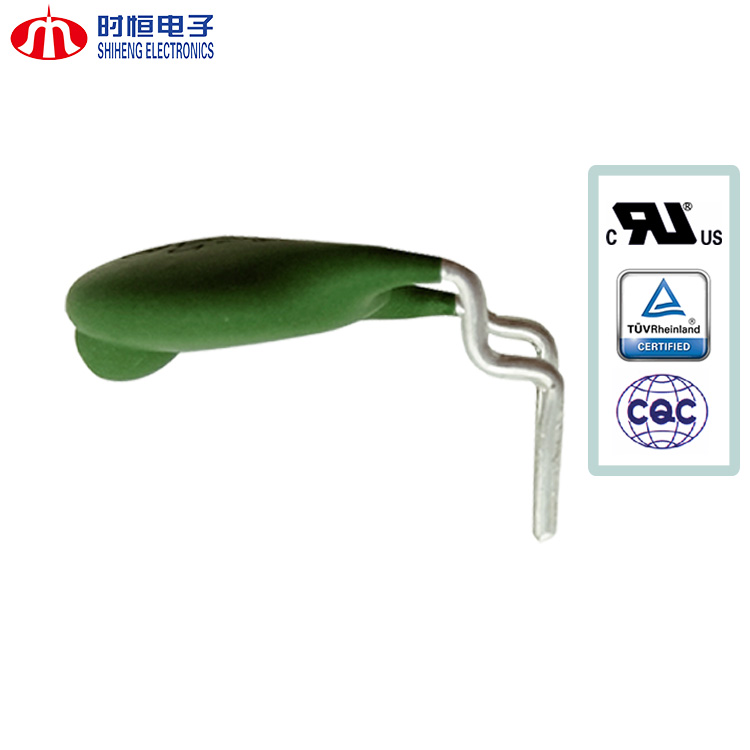

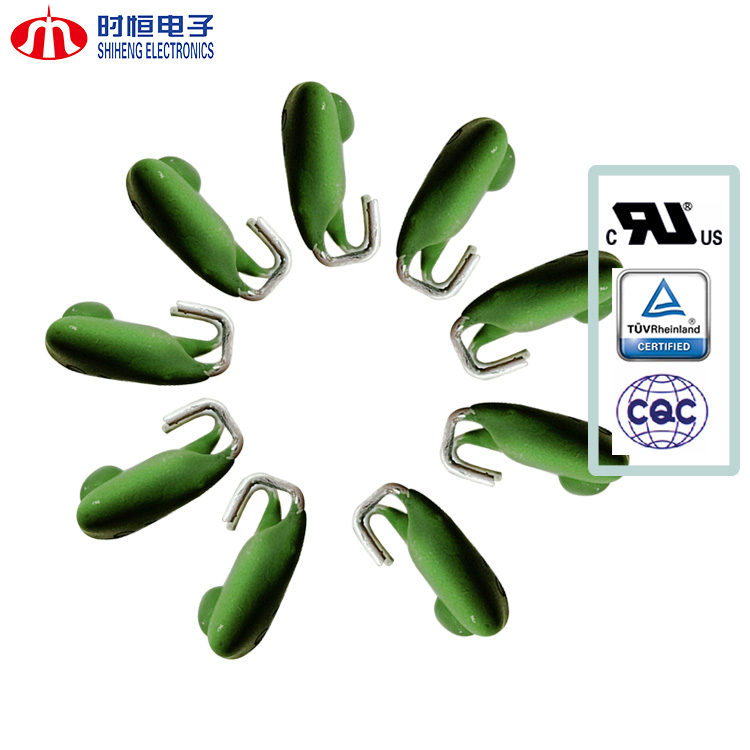

Product Display

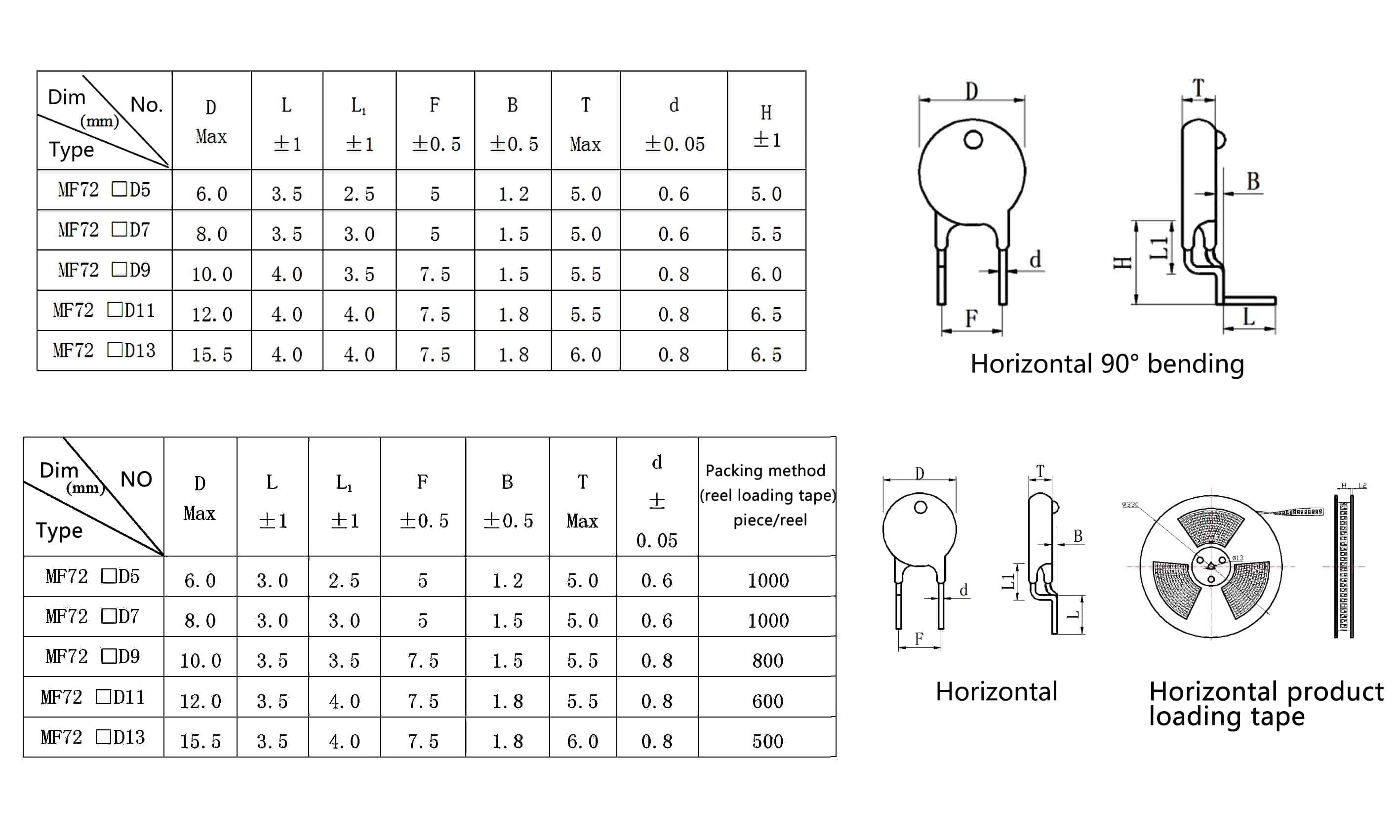

Product Specifications
