MF75 High Power NTC Thermistor Series

The MF75 series R25(Ω):0.2~20     Imax(A):90A

  • Item No :

    MF75
  • Zero Power Resistance at 25℃ :

    0.2~20Ω
  • B Value at 25/50°C :

    2600~3200K
  • Max steady current :

    90A
  • Temperature Range :

    -40~200℃
  • Max allowable capacity value :

    11500μF
  • Maximum rated power :

    55W

MF75 High Power NTC Thermistor Series

Product Description

Power type NTC suppresses the surge current at startup. Its zero power resistance value suppresses the surge current at the moment of startup so that the surge current at the moment of startup will not be too large.

Product Features

    1. Application scope:

         ●Nuclear magnetic resonance equipment, high-power professional audio amplifier, high-power toroidal transformer.

        ●Solar panel array with large capacity power inverter.

        ●Industrial robots driven by high-voltage power supply.

    2.Features:

         ●High power and strong ability to suppress surge current.

        ●The material constant (B value) is large, the residual resistance is small, and the power consumption is small.

        ●High current, long life and reliability.

        ●Easy for circuit board installation, complete series, wide range of applications.

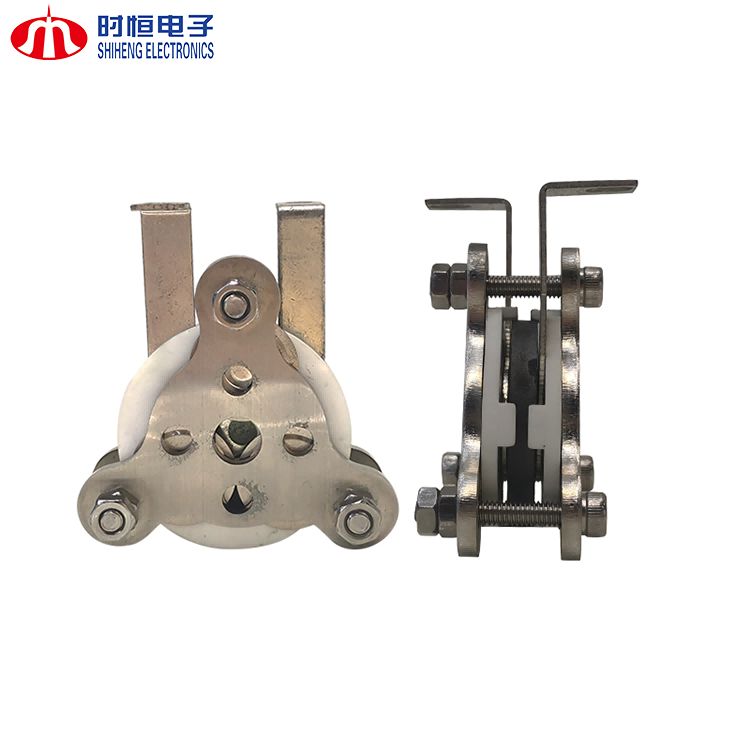

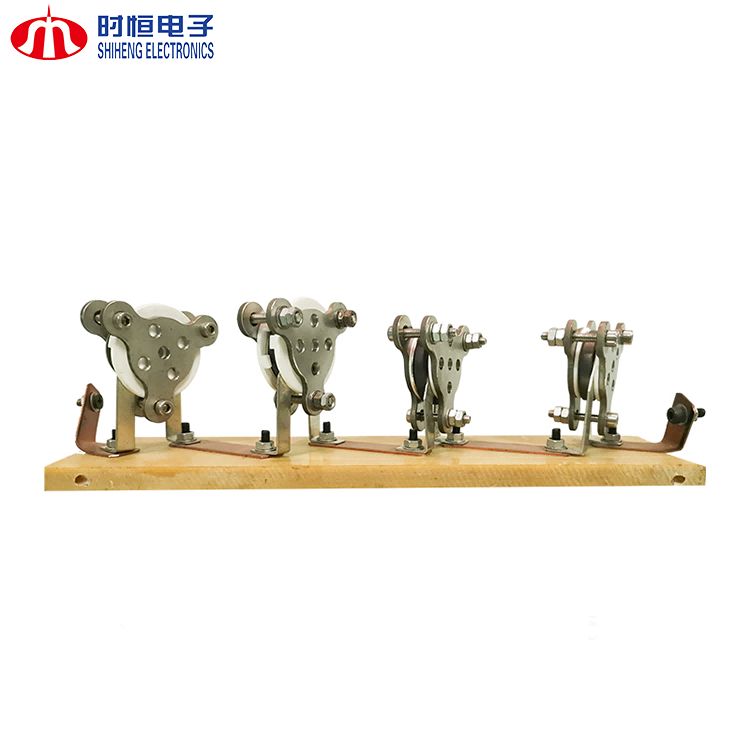

Product Display

MF75 NTC THERMIRTORS

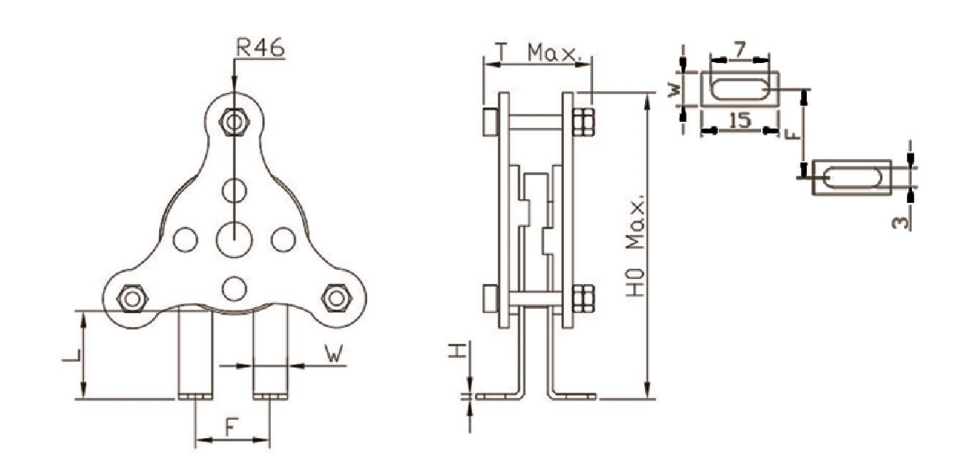

Product Specifications



Body size φ40 φ45 φ50
Tmax 46 46 46
F±1.5 30 30 30
L±2 40 40 40
Ho max 110 110 110
W±0.2 12 12 12
H±0.1 1.2 1.2 1.2



Body size φ40 φ45 φ50
Tmax 46 46 46
F±1.5 30 30 30
L±2 40 40 40
Ho max 110 110 110
W±0.2 12 12 12
H±0.1 1.2 1.2 1.2
W1±0.2 8 8 8

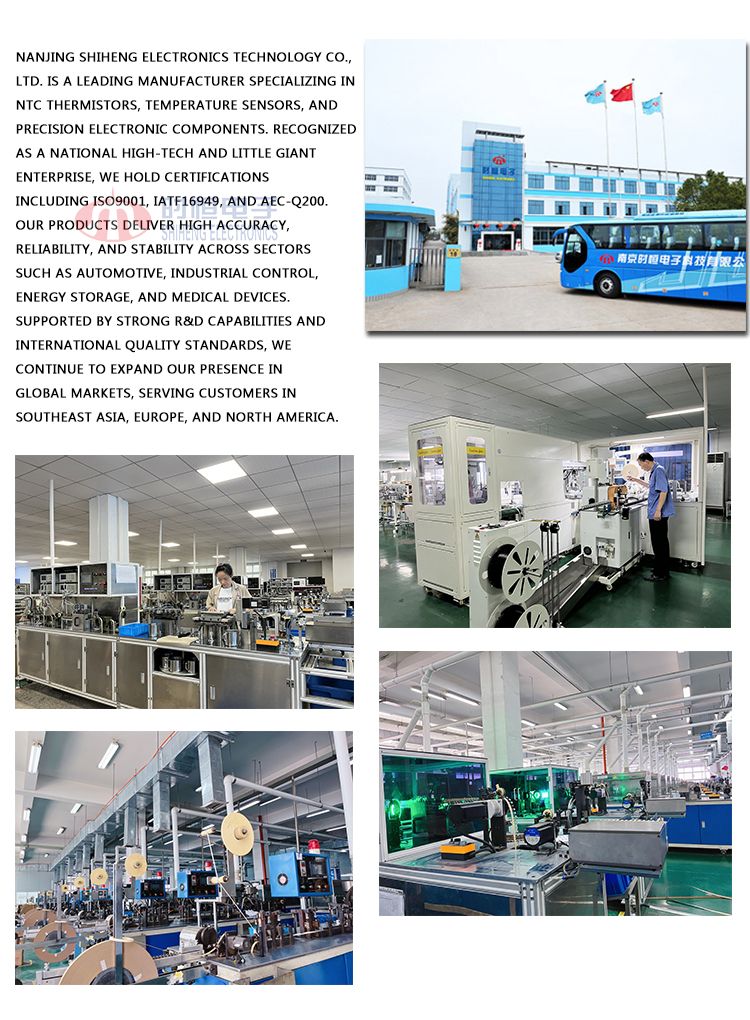

Why Choose us?
