High Quality Thermistor Certification
termistor ntc MF59
magnetic ntc sensor
ntc to modbus
7k thermistor ntc

MF59 Series Glass Bulb NTC Thermistor

The MF59 series R25(Ω):0.1K~1000K.



  • Item No :

    MF59
  • Resistance Tolerance :

    ±1%,±2%,±3%,±5%,±10%
  • Resistance Value :

    0.1~1000KΩ
  • B Value at 25/50°C :

    3380 3435 3470,3600,3950,4050,4250k
  • Insulation resistance :

    A:≥2mW/ ℃,B:≥1mW/ ℃
  • Temperature Range :

    -55~+200℃
  • Thermal dissipation Coefficient :

    A:≥2mW/ ℃,B:≥1mW/ ℃
  • Thermalcooling time constant :

    A:≤10s,B≤5s
  • Maximum rated power :

    A:≤10mW,B:≤5mW

MF59 Series Glass Bulb NTC Thermistor

Product Description

The MF59 series glass packaging, can be used in harsh environments such as high temperature and high humidity.



Product Features

  1.  Application scope: Office automation equipment, digital devices, rechargeable batteries, etc.
  2.  Features:

    ●Glass packaging, can be used in harsh environments such as high temperature and high humidity.

    ●High temperature measurement accuracy, good stability, and wide resistance range.

    ●Small volume, fast reaction speed, and high sensitivity.

    ●No leads, easy for SMT automation installation.

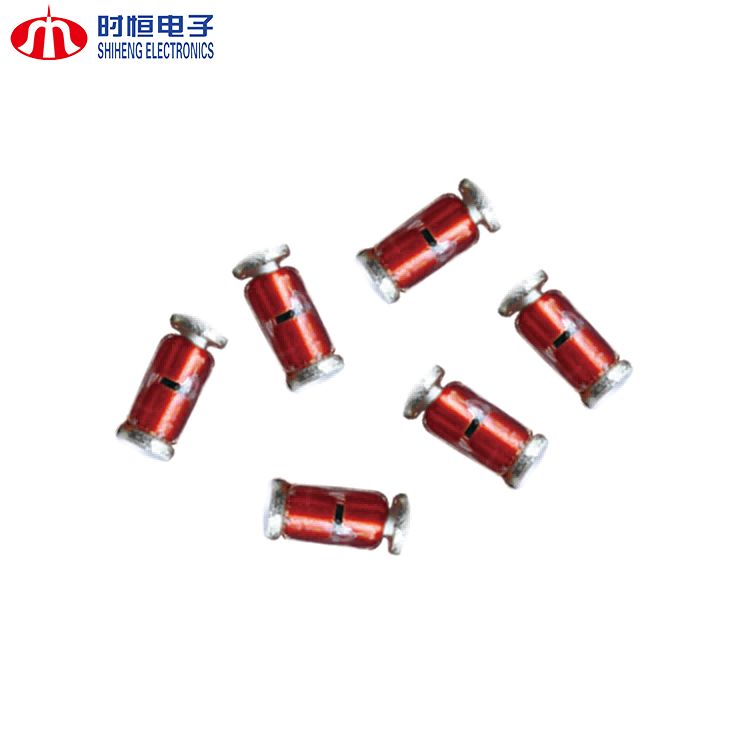

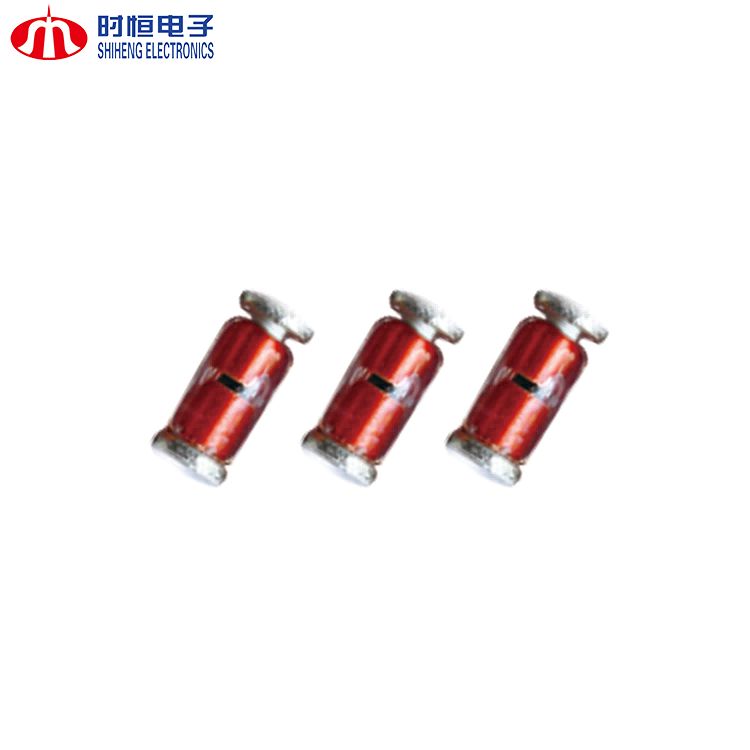

Product Display

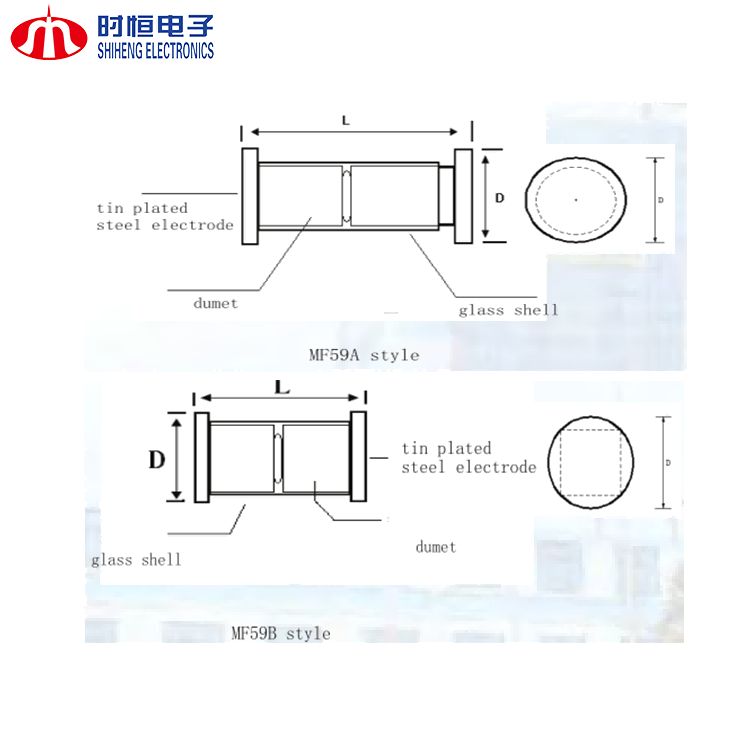

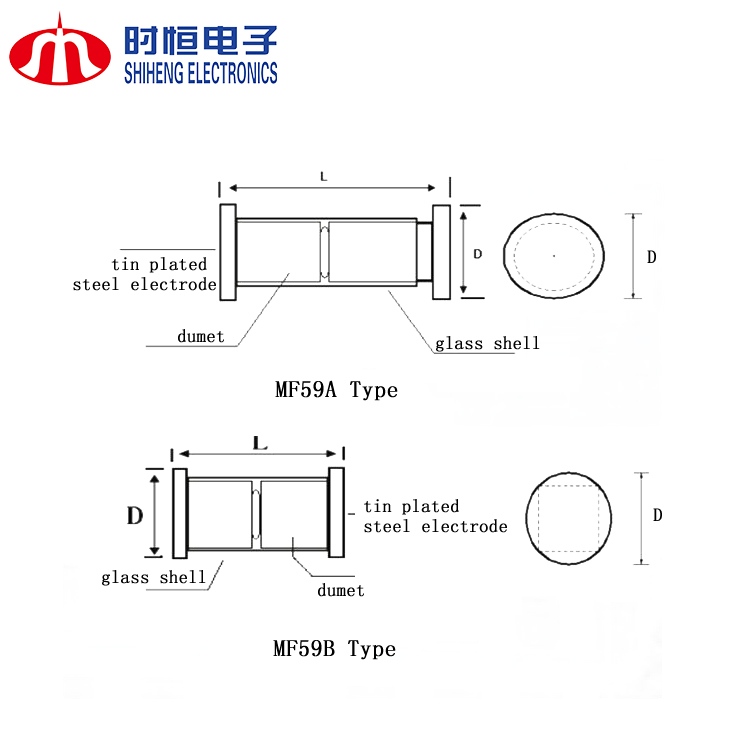

Product Specifications

Part   No L(mm) D(mm) Thermal Time Constants Dissipation coefficient Insulation resistance
MF59-□□□□(A) 3.6±0.2 1.5±0.2 10 2 DC/5O0V≥50MQ
MF59-□□□□(B 1.8±0.2 1.1±0.2 5 1 DC/5O0V≥50MQ
