Temperature Measuring Thermistor

MF52A Temperature Measuring NTC Thermistor

The MF52A series R25(Ω)：0.1K～1000K, Tolerance: F士1%, G土2%, H土3%, J士5%, K土10%.

Item No :
MF52A
Resistance Tolerance :
F士1%,G土2%,H土3%,J士5%,K土10%
Resistance Value :
0.1~1000KΩ
B Value at 25/50°C :
3380 3435 3470,3600,3950,4050,4300k
Insulation resistance :
≥100MΩ
Temperature Range :
-55~+125℃
Cable material :
Tinned copper or tinned copper-clad steel wire
Thermal dissipation Coefficient :
≥2mW/℃
Thermalcooling time constant :
≤7S
Maximum rated power :
≤50mW

Inquiry now

product introduction

MF52A Temperature Measuring NTC Thermistor

Product Description

The MF52A series is a thermistor that can be directly used in various home appliances and can also be used as the core component of a temperature sensor.

Product Features

1.Application scope:

● Air conditioning equipment.

● Heating equipment.

● Electronic thermometer.

● Liquid level sensor.

● Vehicle electronics.

● Electronic desk calendar.

● Cell phone battery.

2.Features:

● High test accuracy.

● Small size and fast response speed.

● Can work stably for a long time.

● Good interchangeability and consistency.

● Large-scale production, high-cost performance.

3.Installation method:

a) For use, use general soldering method for installation.

b) For vibration and impact tests, the leads are fixed, and the fixed point is 6±1mm away from the resistor body.

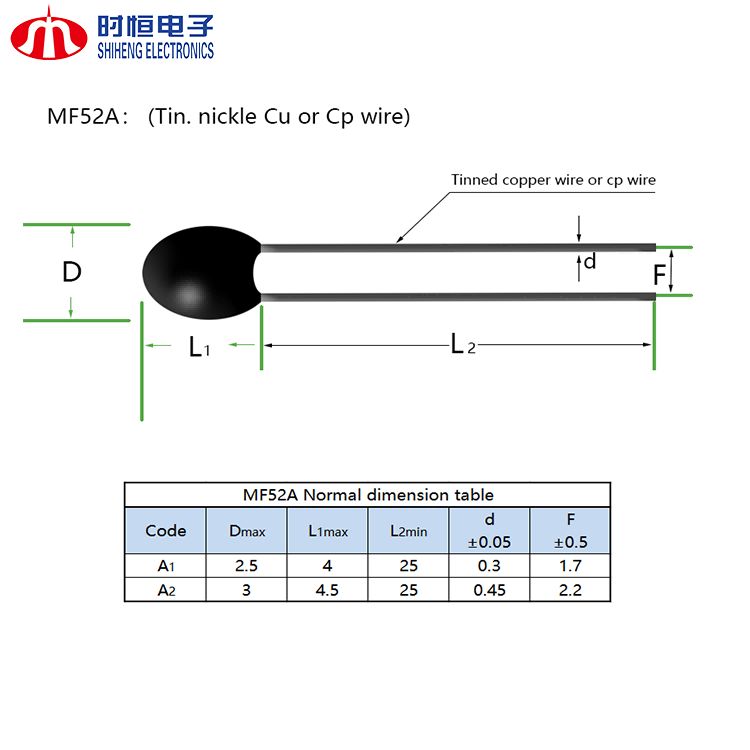

Product Display

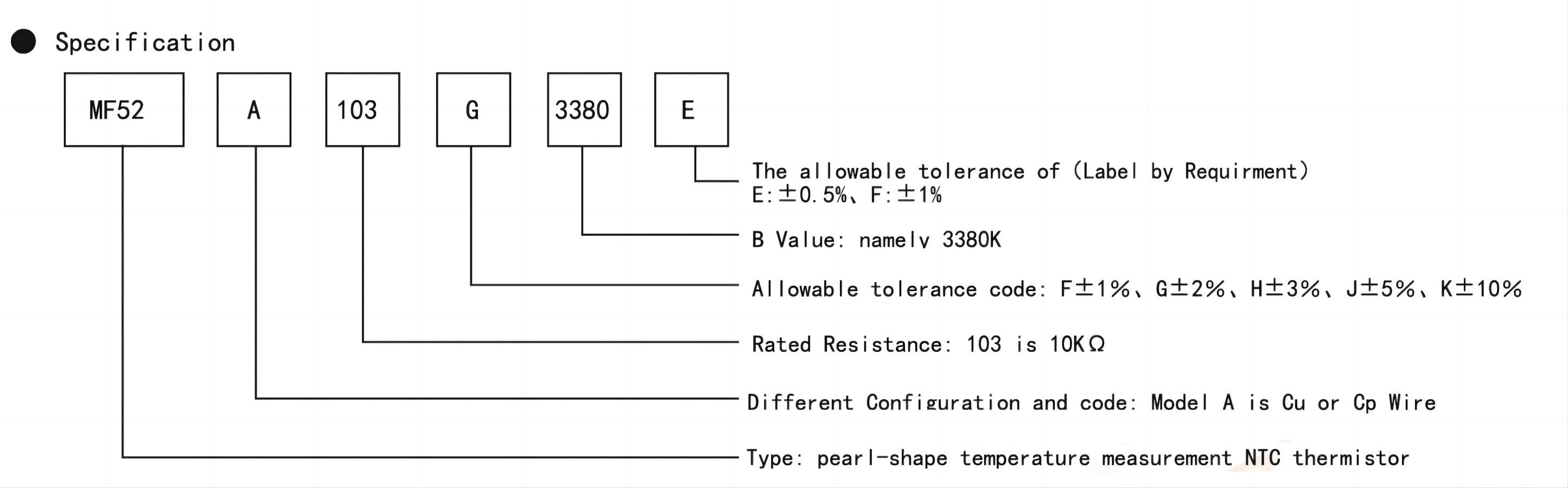

Product Specifications

Part No	Rated Resistance R25 (KΩ)	B Value (25/50℃) (K)	Rated Power (mw)	Dissi.Coef. (mw/C)	Thermal time Constant(S)	Operating Temp.(C)
MF52□□□3100 MF52□□□3270 MF52□□□3380 MF52□□□3470 MF52□□□3600 MF52□□□3950 MF52□□□4000 MF52□□□4050 MF52□□□4150 MF52□□□4300 MF52□□□4500	0.1～20 0.2～20 0.5～50 0.5～50 1～100 5～100 5～100 5～200 10～250 20～1000 20～1000	3100 3270 3380 3470 3600 3950 4000 4050 4150 4300 4500	≤100mW	≥2.0 In Still Air	≤12 In Still Air	-40～+125℃

Why Choose us?

20+ Years Industry Experience

Founded in 2002. Four self-built factories.

R&D team of more than 50 people
Provide one-to-one customized service.
Highly automated mass production line
High-quality and cost-effective solutions.
Full range of self-developed products
One-stop NTC customizable solutions.

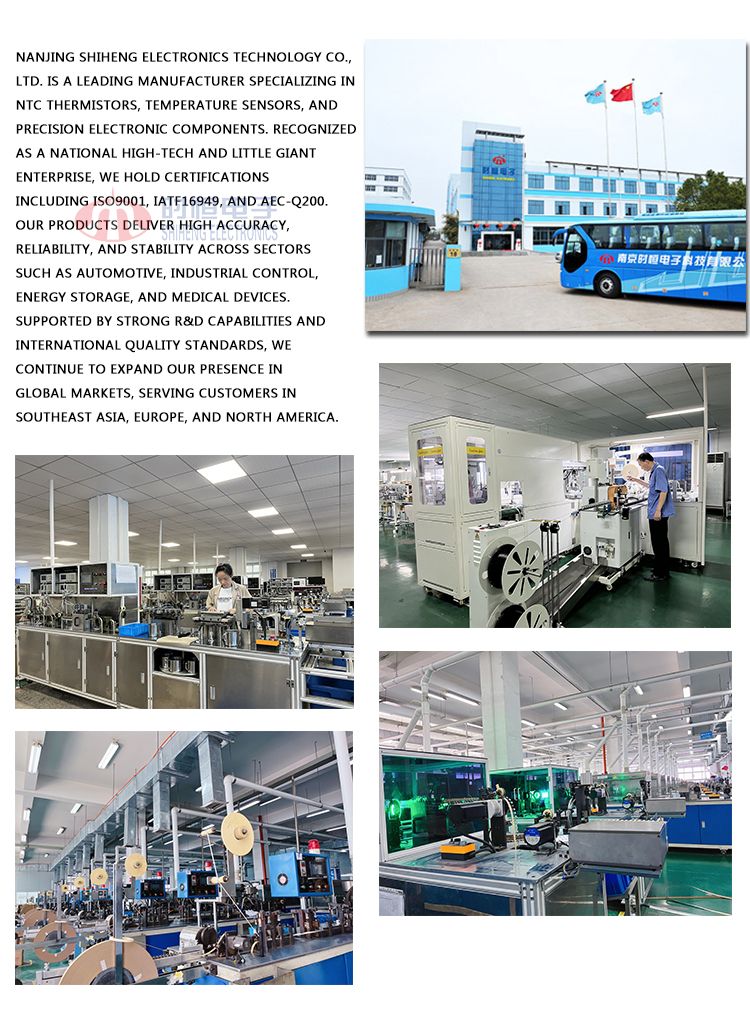

Nanjing Shiheng Electronic Technology Co., Ltd.is a national high-tech enterprise integrating research and development, production and sales. Sensitive components such as PTC thermistors and zinc oxide varistors, among which NTC thermistor series products cover surge suppression, temperature compensation, precision temperature measurement, temperature control and other applications. The company's registered trademark is "Jiangsu Famous Brand", and its products are "Nanjing Famous Brand Products". As a key enterprise in the industry, Shiheng Electronics was designated by the industry association to participate in the drafting of the national "13th Five-Year Plan" and "14thFive-Year Plan".
