The MF58 series R25:0.1~3780KΩ.
Item No :
MF58Resistance Tolerance :
±1%,±2%,±3%,±5%,±10%Resistance Value :
0.1~3780KΩB Value at 25/50°C :
3100~4500KTemperature Range :
-55~+250℃Thermal dissipation Coefficient :
≥2mW/℃Thermalcooling time constant :
≤20sMaximum rated power :
≤50mWMF58 Series Glass Sealed Temperature Measuring NTC Thermistor
Product Description
The MF58 series is a glass sealed product that is resistant to high temperatures, including leads, and can be welded with a soldering iron.
Product Features
1.Application scope:
●Temperature control and detection of household appliances (such as air conditioners, microwaves, induction cookers, toasters, electric fans, electric heaters, etc.);
●Temperature detection or compensation of office automation equipment (such as copiers, printers, etc.);
●Mobile phone batteries and battery packs;
●Temperature compensation for instrument coils, integrated circuits, quartz crystal oscillators, and thermocouples.
2.Features:
●Good stability and high reliability;
●Wide resistance range and high accuracy;
●Can be used in harsh environments such as high temperature and humidity;
●Small size, light weight, and sturdy structure;
●Easy for automated installation;
●Heat sensitivity should be fast and high.
3.Installation method: Lead soldering iron welding.

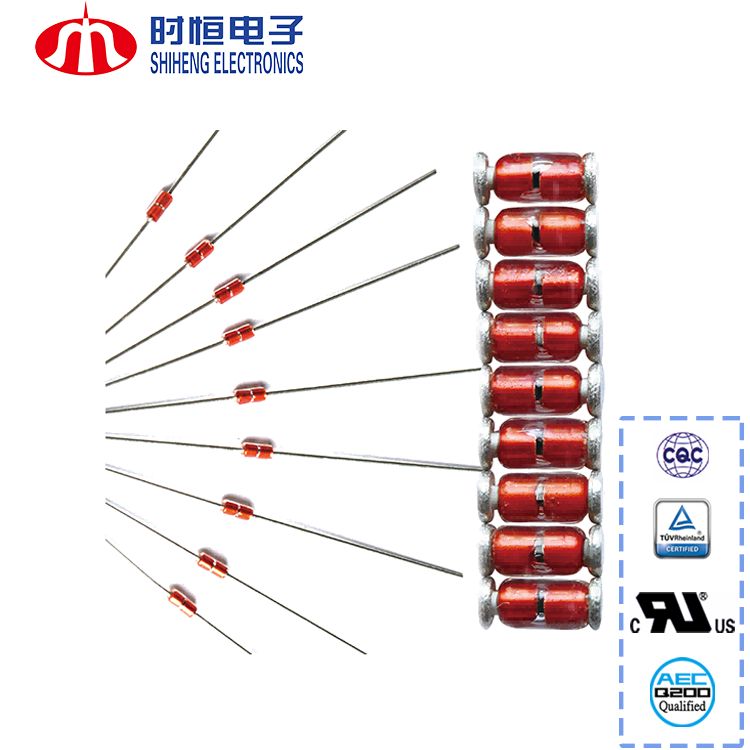

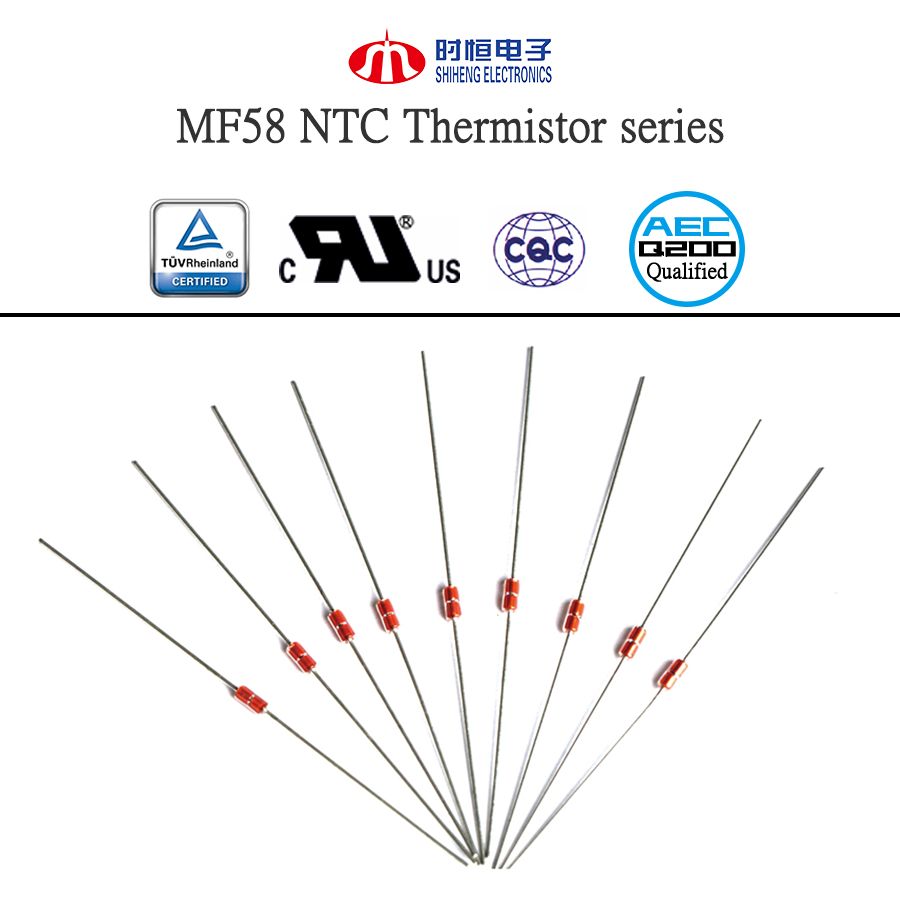

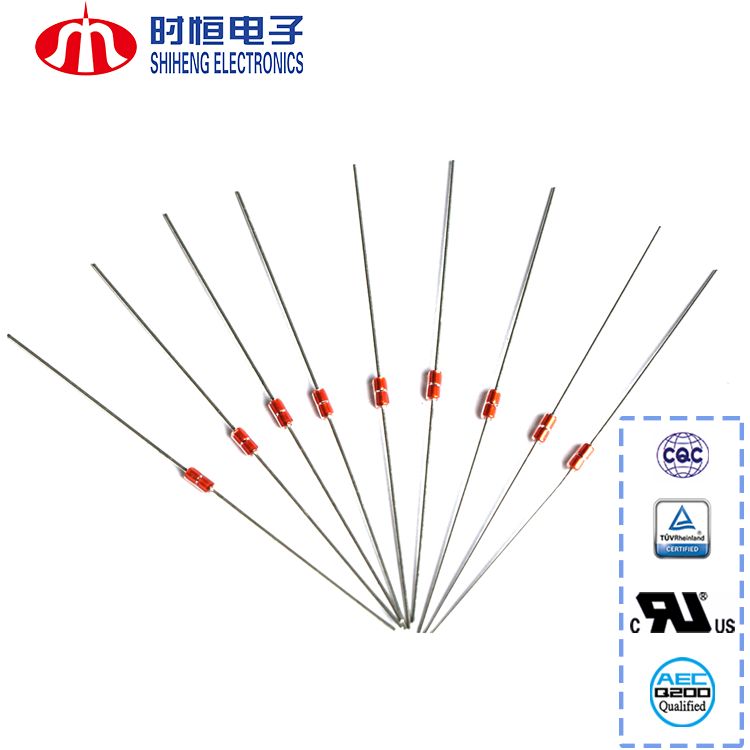

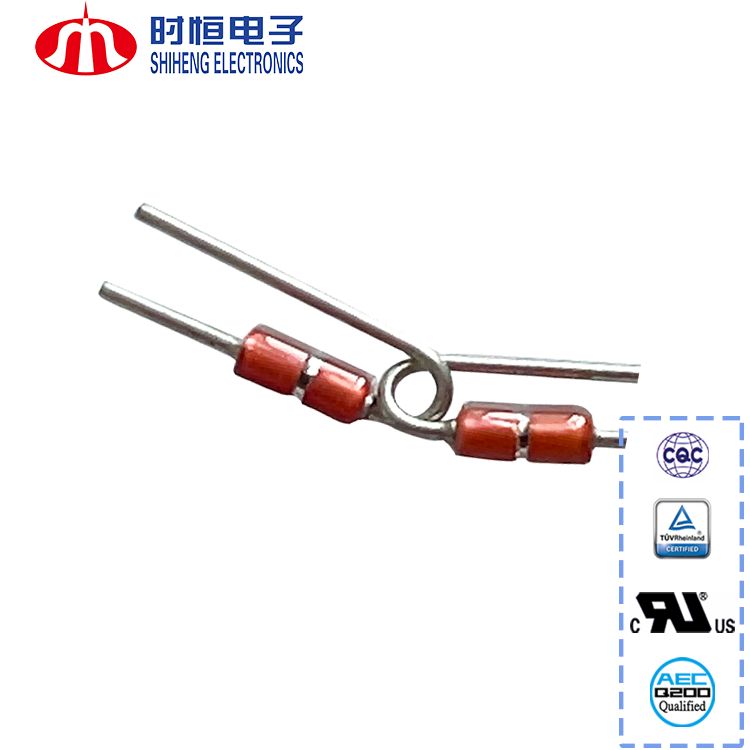

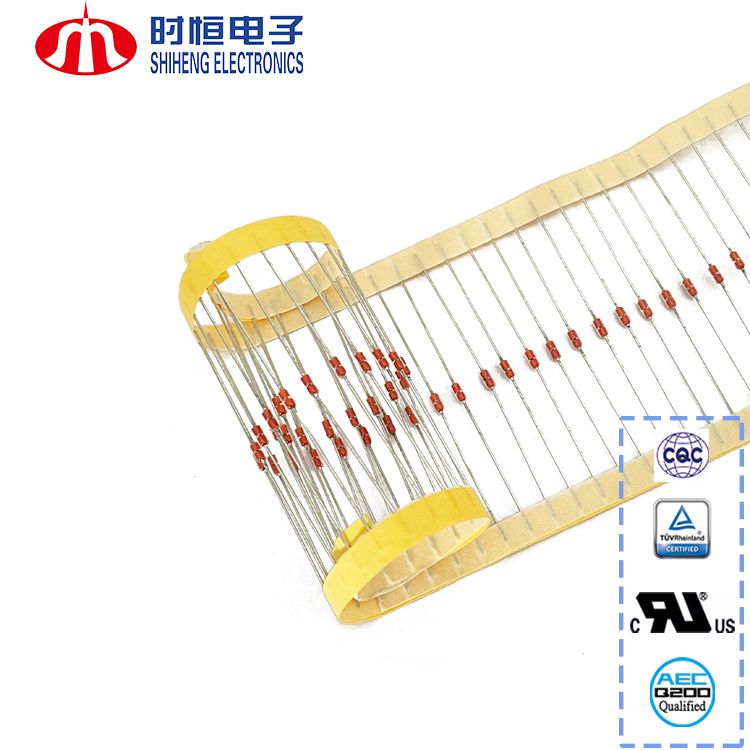

Product Display

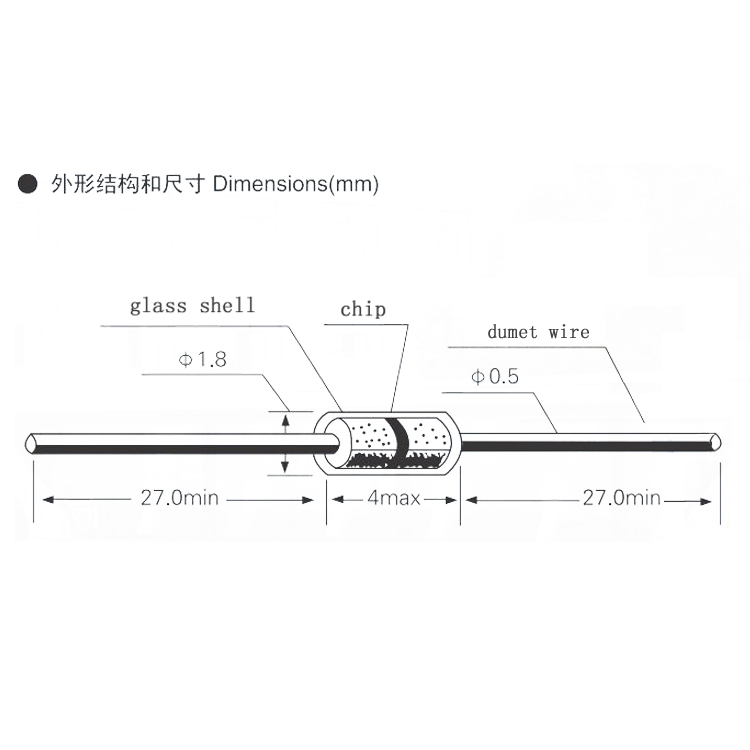

Product Specifications

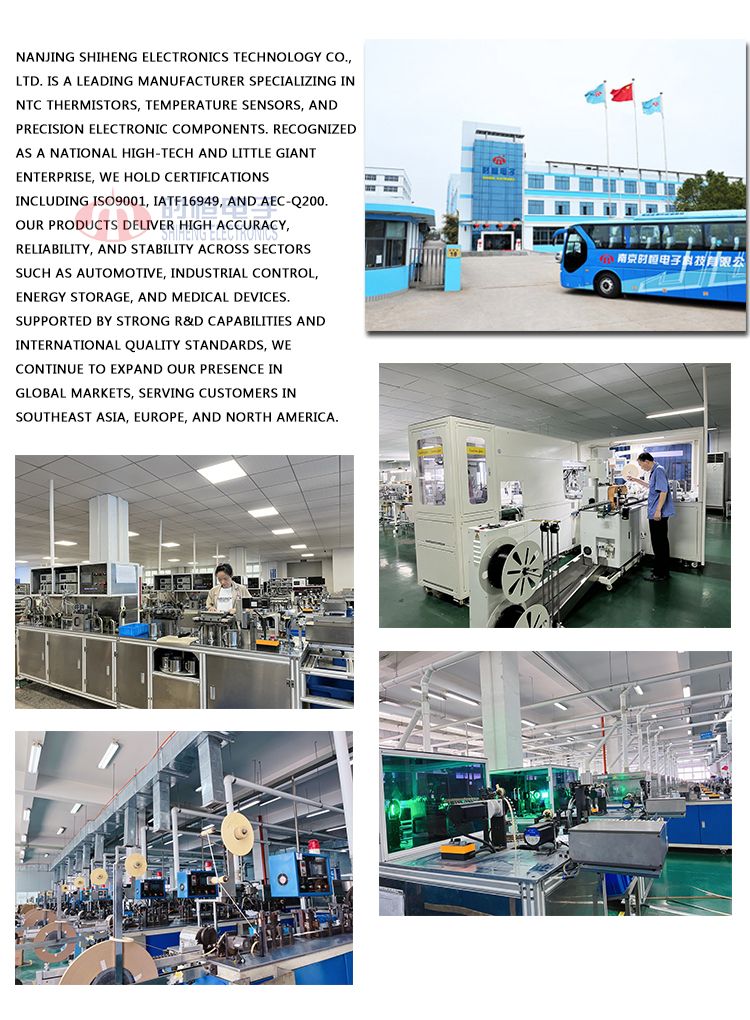

Why Choose us?
