CWF5 Lithium Battery Temperature Sensor using Thermistor and Ntc Electronic Component

The sensor head of CWF5 is a metal shell with a fixed metal piece, special shape.



  • Item No :

    CWF 5
  • Resistance Tolerance :

    F±1%,G:±2%, H:±3%,J:±5%,K:±10%
  • Resistance Value :

    1K, 5K, 10K, 50K, 100K, 15K
  • B Value at 25/50°C :

    3950K, 3435K, 3470K, 4000K,4050K
  • Cable material :

    PVC TPE PFA TPE Support Customized
  • Withstand voltage :

    1500-3000V/AC
  • Temperature Range :

    -40~200℃
  • Probe Material :

    special shape
  • Certificate :

    ISO9001 ROHS REACH ISO14001 IATF16949
  • Country of Origin :

    China

CWF5 Precision NTC Temperature Sensor Series

Product Description

CWF5 is an insulating structure with special shape, one-way lead, and resin potting (encapsulation).Can use temperature measuring thin film thermistor package

Product Features

  1.  Application scope: Can be used for temperature control instruments, indoor thermostats, heaters, and other small household appliances and constant temperature measurement, thermostats, breeding industry monitoring, floor heating thermostats, etc.
  2.  Features:

    ● Heat resistance and cold resistance

    ● Good stability and easy installation

    ●Sturdy structure, fast temperature sensing and fast sensitivity

    ● Hardware and wires can be customized.
  3. Installation method:

      a) For use, use general soldering methods and install with epoxy resin potting (encapsulation);

      b) For vibration and impact tests, install by clamping the housing and wires.

      c)Bolted,threaded fixation.

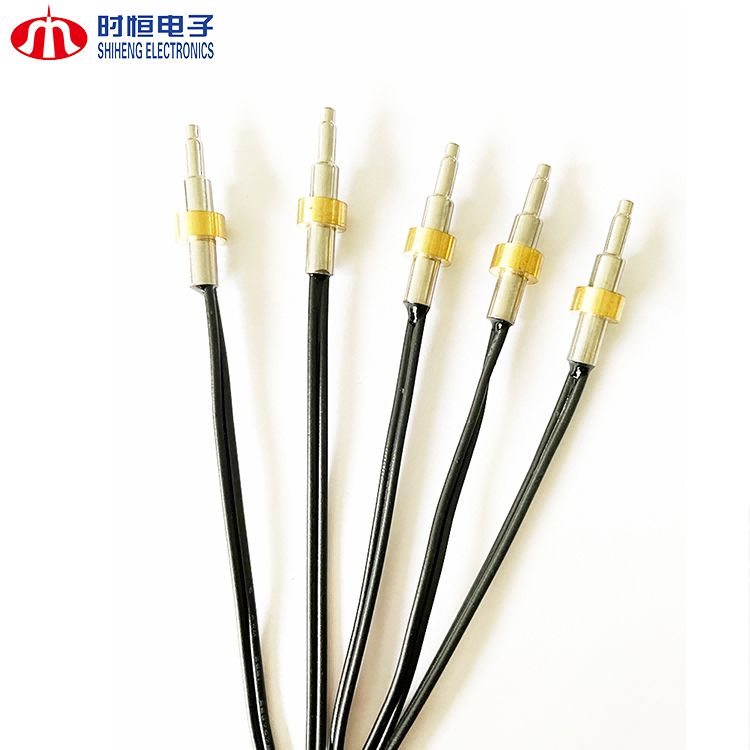

Product Display



Temperature Sensor

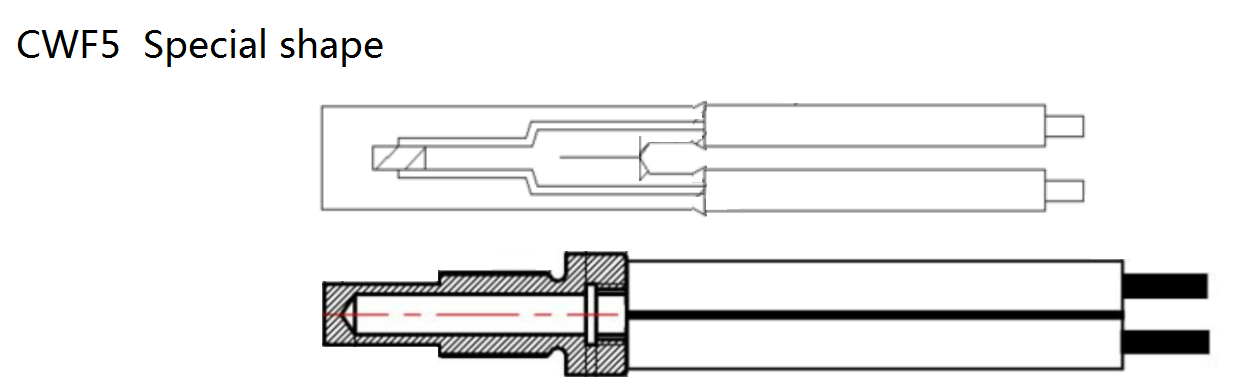

Product Specifications



Thread sensor



Different NTC thermistors using in the NTC temperature senors with the following different operating temperature:

  • Chip/MF52A/MF51E or MF55: temperature resist grade 125℃,actual temperature resist grade150℃.
  • MF58: temperature resist grade 200℃,actual temperature resist grade 250℃.
  • MF51: temperature resist grade 200℃,actual temperature resist grade250℃.
  • Special MF51: temperature resist grade250℃,actual temperature resist grade 300℃.
  • Weldless chip:  temperature resist grade 450℃,actual temperature resist grade500℃.

Why Choose us?

20+ Years Industry Experience

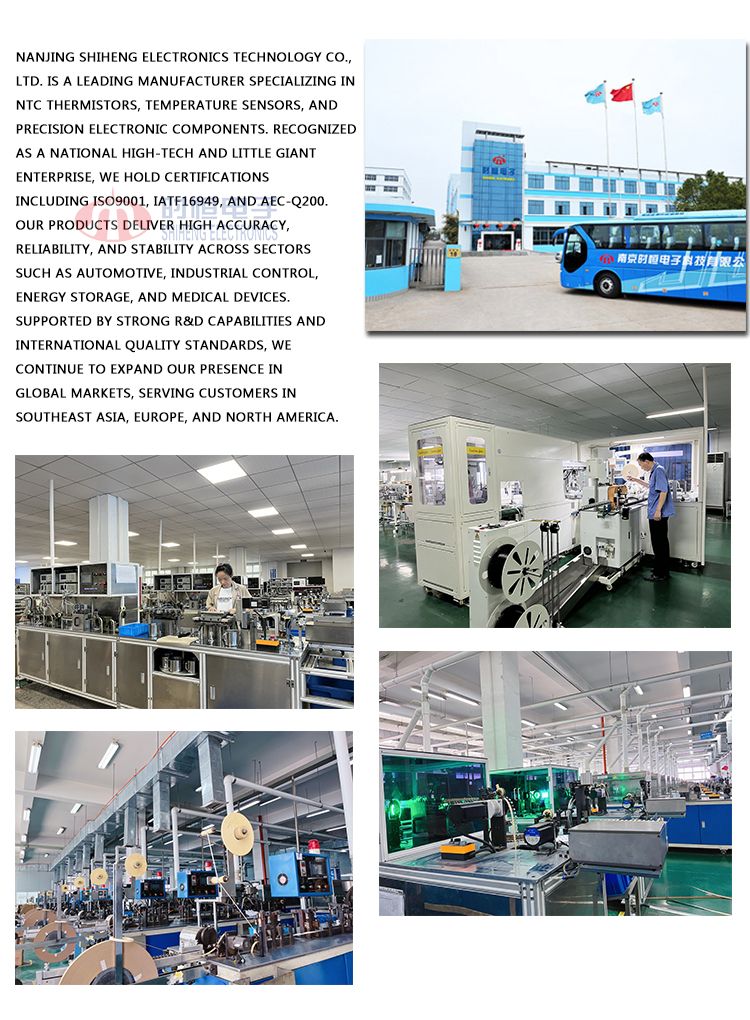

Founded in 2002. Four self-built factories.

Nanjing Shiheng Electronic Technology Co., Ltd. has a modern production plant of 25,000 square meters, a full set of automated production equipment, and complete special testing instruments. It has an annual production capacity of more than 4.8 billion pieces of various sensitive electronic components. All products are environmentally friendly produced in accordance with the EU RoHS directive. The main products have passed CQC mark certification, German TUV certification and American UL and C-UL safety certification. Automotive-grade MF52, MF51, MF58 and MF59 series products have passed AEC-Q200 testing. MF58 series products have passed the 100,000-time durability test in the UL standard.

The company's research center covers an area of 1,700 square meters and has more than 50 sets of various test and analysis equipment and instruments, providing strong support and reliable guarantee for the continuous advancement of product technology, continuous updating of processes, and continuous improvement of performance and quality. .

Shiheng Electronics has 62 authorized and accepted patents, including 13 invention patents.
