MF52DE Temperature Measuring NTC Thermistor

The MF52DE series R25(Ω):0.1K~1000K,Tolerance:F士1%,G土2%,H土3%,J士5%,K土10%.



  • Item No :

    MF52DE
  • Resistance Tolerance :

    F士1%,G土2%,H土3%,J士5%,K土10%
  • Resistance Value :

    0.1~1000KΩ
  • B Value at 25/50°C :

    3380 3435 3470,3600,3950,4050,4300k
  • Insulation resistance :

    ≥100MΩ
  • Cable material :

    Tinned copper or tinned copper-clad steel wire
  • Temperature Range :

    -45~+125℃
  • Thermal dissipation Coefficient :

    ≥2mW/℃
  • Thermalcooling time constant :

    ≤7S
  • Maximum rated power :

    ≤50mW

MF52DE Temperature Measuring NTC Thermistor

Product Description

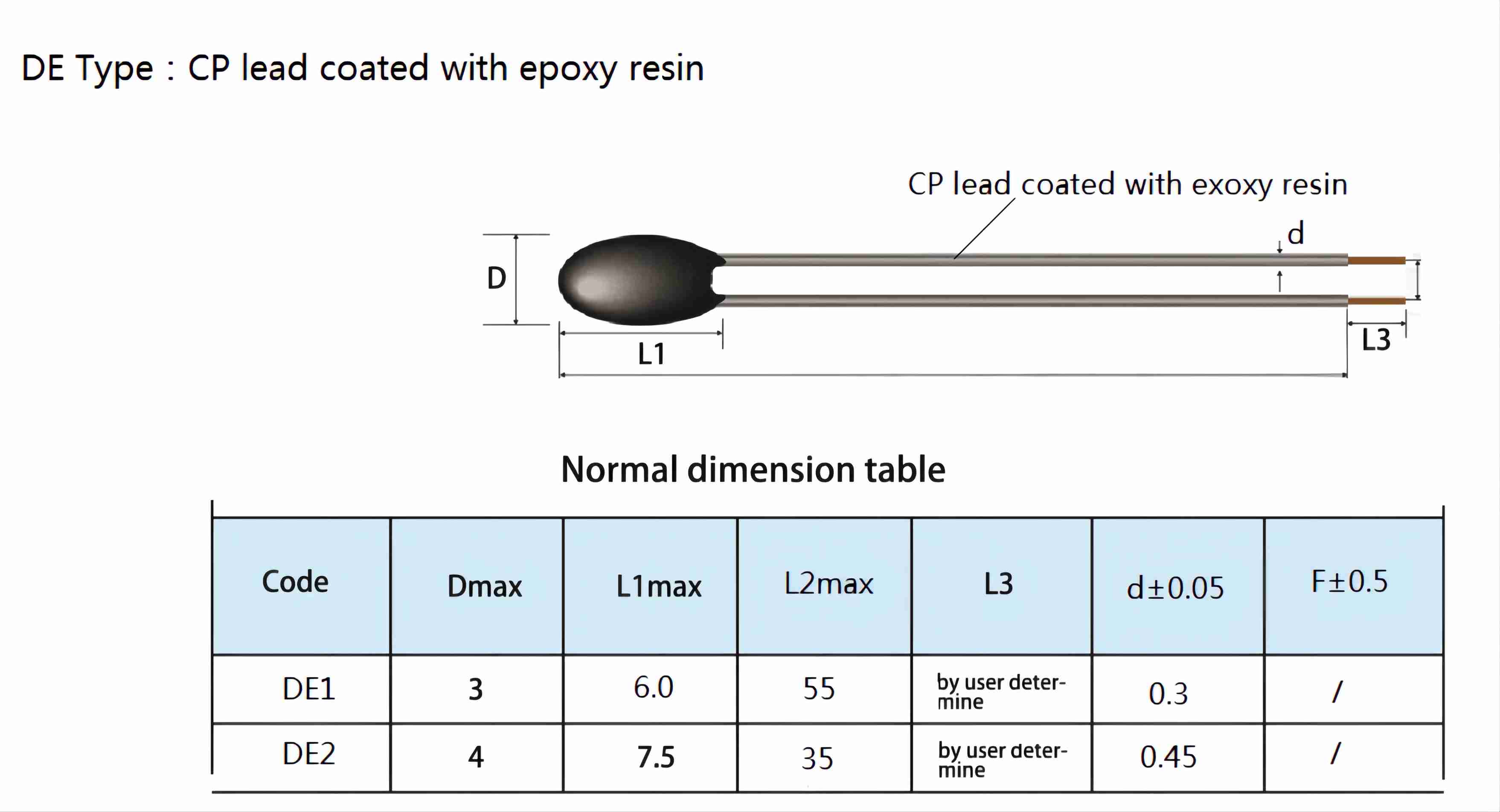

The MF52DE series is a tinned steel wire product with epoxy resin encapsulated leads.



Product Features

    1.Application scope:

        ● Air conditioning equipment;

        ● Heating equipment;

        ● Electronic thermometer;

        ● Liquid level sensor;

        ● Vehicle electronics;

        ● Electronic desk calendar;

        ● Cell phone battery.

    2.Features:

        ● High test accuracy;

        ● Small size and fast response speed;

        ● Can work stably for a long time;

        ● Good interchangeability and consistency;

        ● Large-scale production, high cost performance.

    3.Installation method:

        a) For use, use general soldering method for installation;

        b) For vibration and impact tests, the leads are fixed and the fixed point is 6±1mm away from the resistor body.



Product Display





Product Specifications
