The MF11 series R25:5Ω~1000KΩ,B 25/50=2600~4900K.
Item No :
MF11Zero Power Resistance at 25℃ :
1.5Ω~500KΩB Value at 25/50°C :
3380 3435 3470,3600,3950,4050,4250kTemperature Range :
-30~+125℃Thermal dissipation Coefficient :
4.5mW/℃Thermalcooling time constant :
20secMaximum rated power :
450mWInsulation resistance :

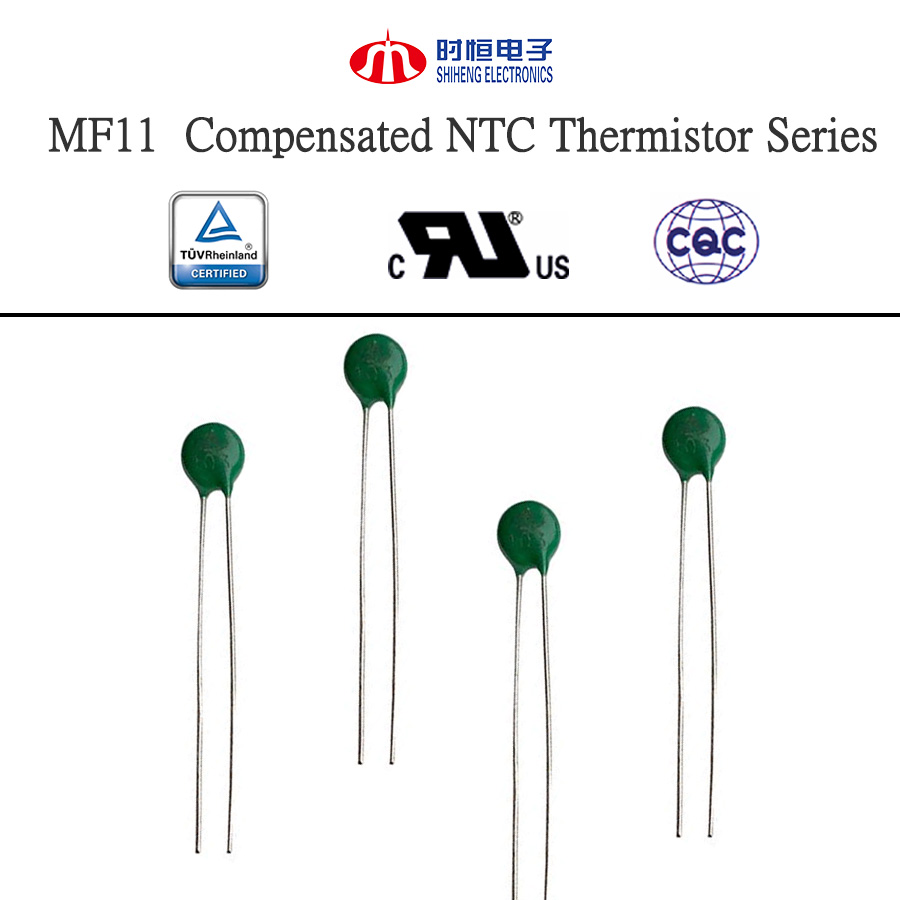

≥500MΩMF11 Series Compensated NTC Thermistor
Product Description
The compensating thermistor is used in conjunction with one or more NTC thermistors. The negative temperature characteristics of the NTC thermistor can be used to offset the influence of temperature on the characteristics of components in the circuit and play the role of temperature compensation, so that the circuit can Work stably and reliably over a wide temperature range.
Product Features

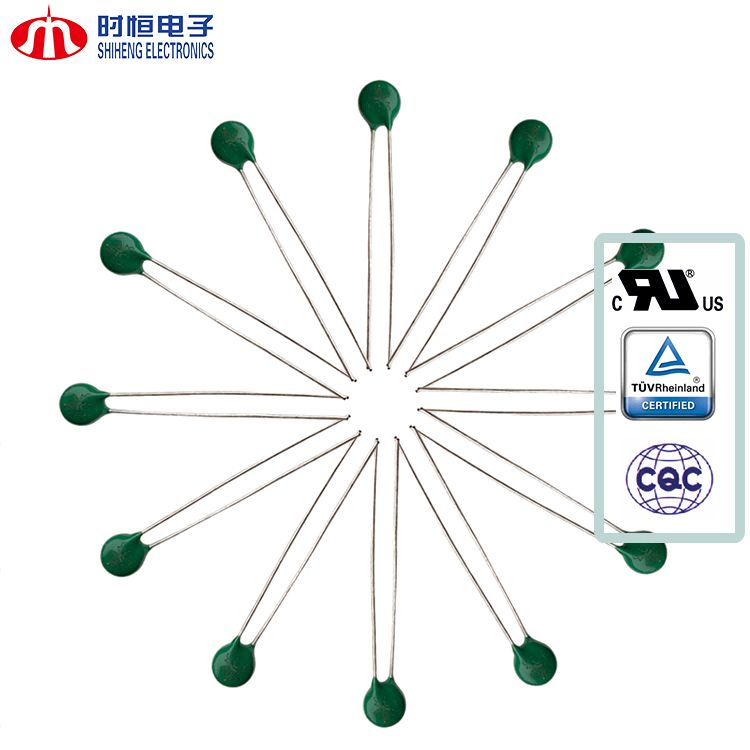

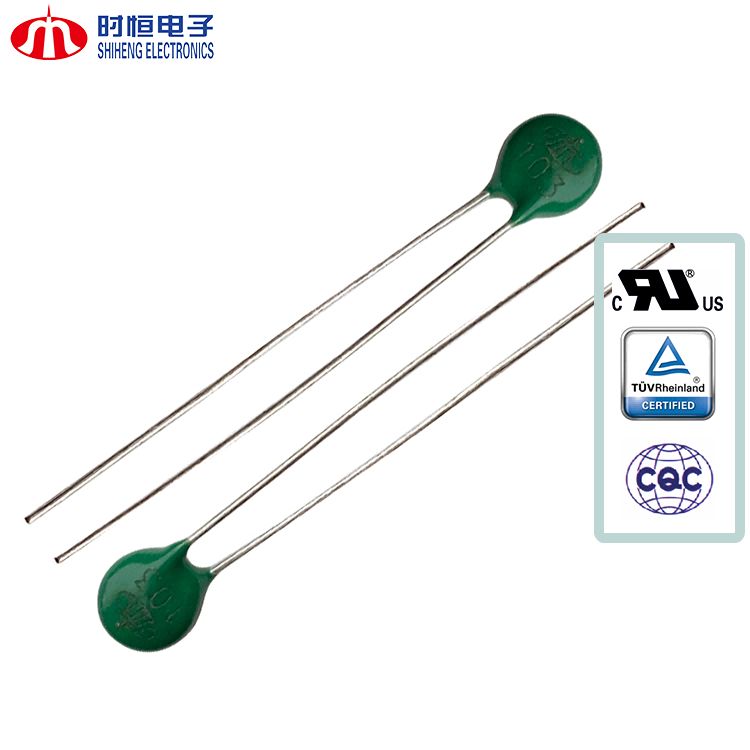

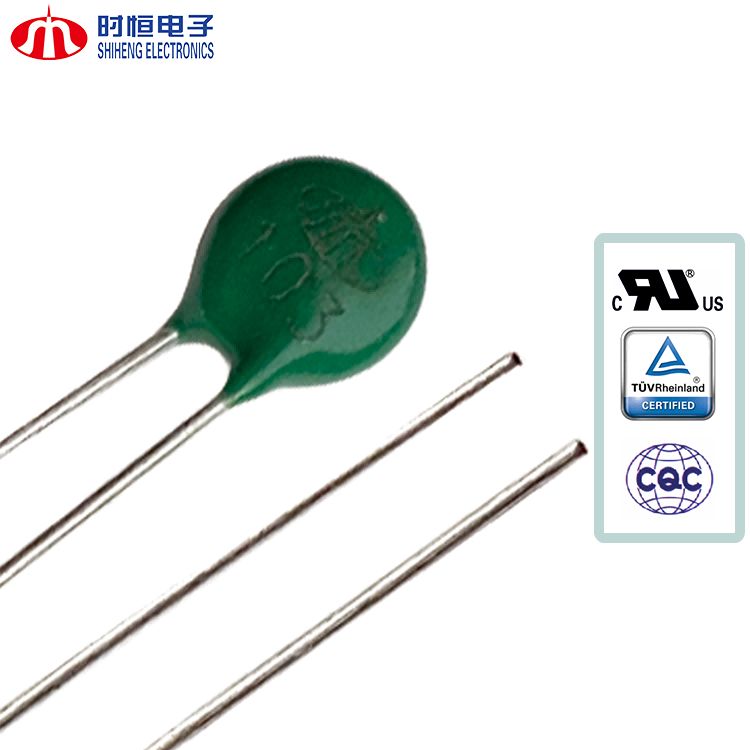

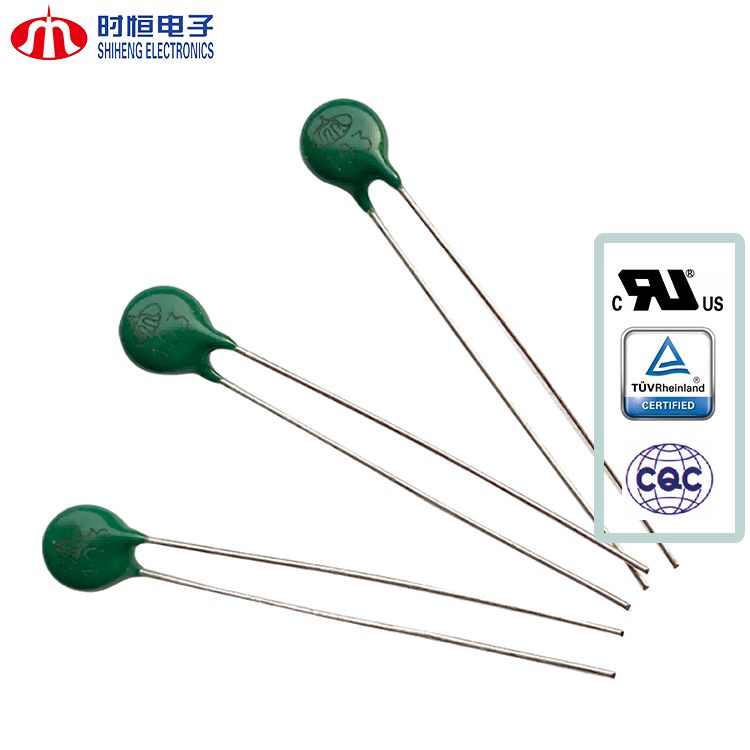

Product Display

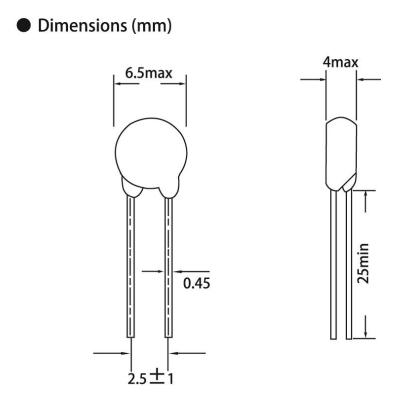

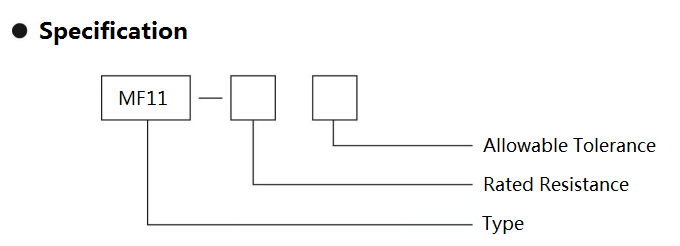

Product Specifications
| The table of resistance and B Value | ||||
| Part No | Rated zero-power resistance at 25℃ | B value(25/50℃) | ||
| Resistance range(Ω) | Allowable Tolerance(%) | Rated Value(K) | Allowable Tolerance(%) | |
| MF11 | 1.5-4.9 5-7 25-119 120-359 360-1400 1500-5900 6000-12000 13000-17000 18000-44000 45000-79000 80000-144000 145000-199000 200000-299000 300000-500000 |
±5 ±10 ±15 ±20 |
2500 2600 2800 3000 3200 3600 3950 4050 4150 4250 4300 4400 4500 4600 4750 |
±10 |
Why Choose us?
20+ Years Industry Experience

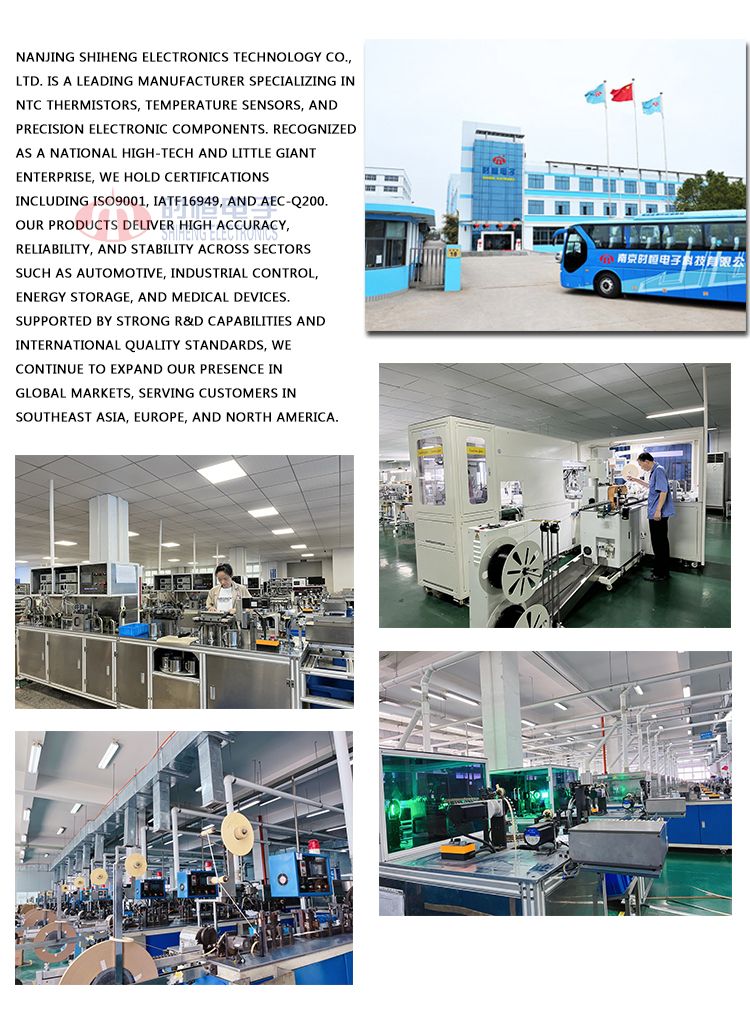

Founded in 2002. Four self-built factories.
