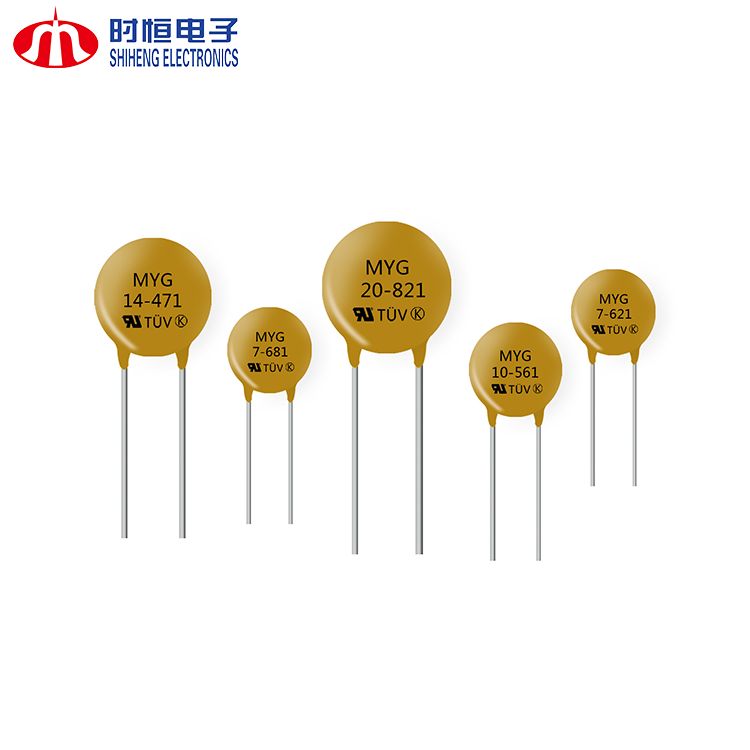

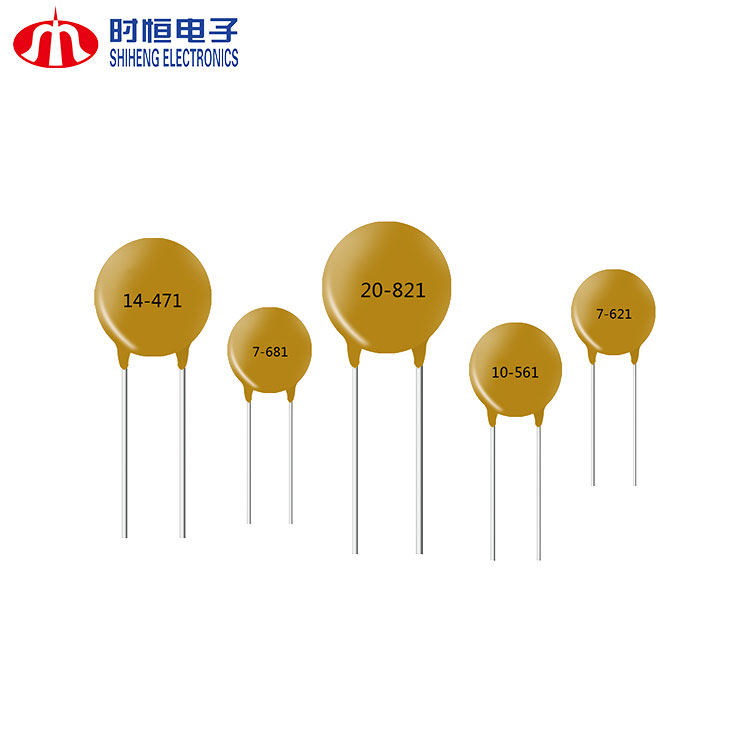

MYG Over voltage-protection Style Zinc Oxide Varistor

MYG is mainly used for voltage clamping when the circuit is subjected to overvoltage and absorbs excess current to protect sensitive devices.

  • Item No :

    MYG overvoltage-protection style varistor
  • Size / Dimension :

    7.5-56 mm
  • Varistor voltage :

    16-1200 V
  • Varistor voltage tolerance :

    K:±10%, L:±15%
  • Insulation resistance :

    ≥500 MΩ
  • Lead Style :

    straight,spire
  • Response time :

    <25 ns
  • Temperature Range :

    -40~85℃
  • Rated Power :

    0.01-1.4 W

 MYG Over voltage-protection Style Zinc Oxide Varistor

Product Description

MYG varistor is a resistive device with nonlinear volt-ampere characteristics. It is mainly used for voltage clamping when the circuit is subjected to overvoltage and absorbs excess current to protect sensitive devices.

Product Features

  1.  Application scope: Overvoltage protection and surge absorption for various electronic equipment.
  2.  Features:

    ● Small size, large flow capacity and energy tolerance.

    ●Epoxy resin insulation encapsulation.

    ●Varistor voltage temperature coefficient:-0.5%/℃.

    ●Chip diameter: 5, 7, 10, 14, 20, 25, 32, 40, 50mm.

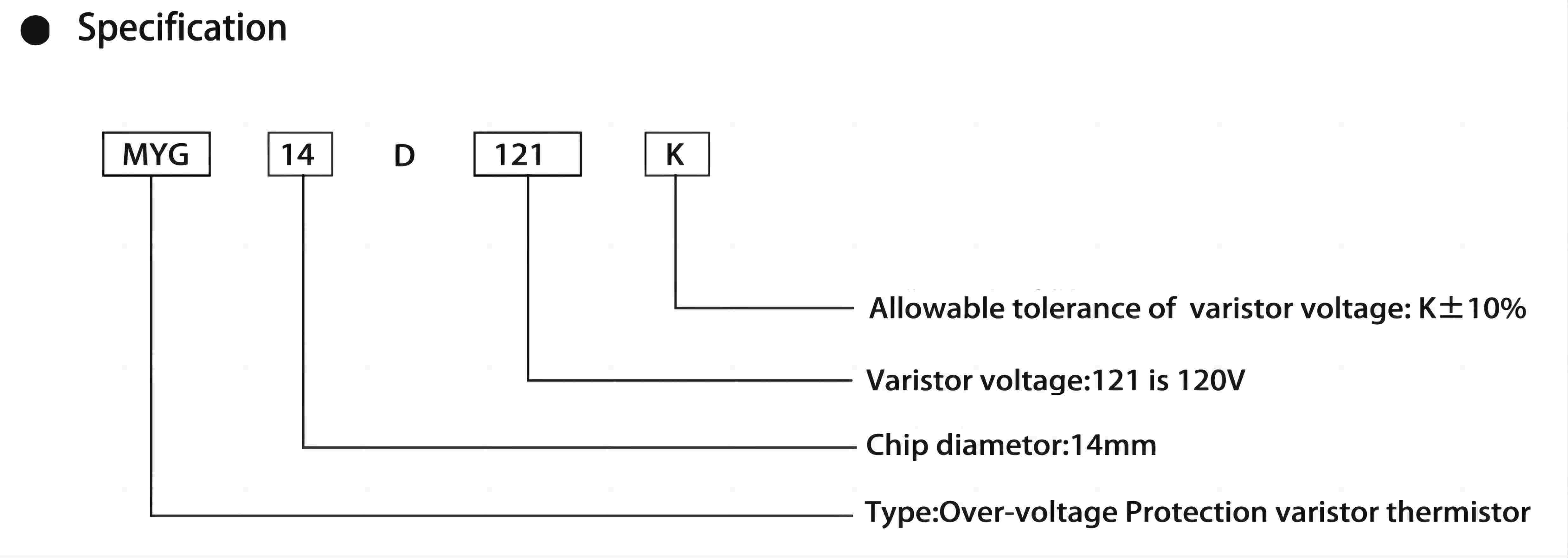

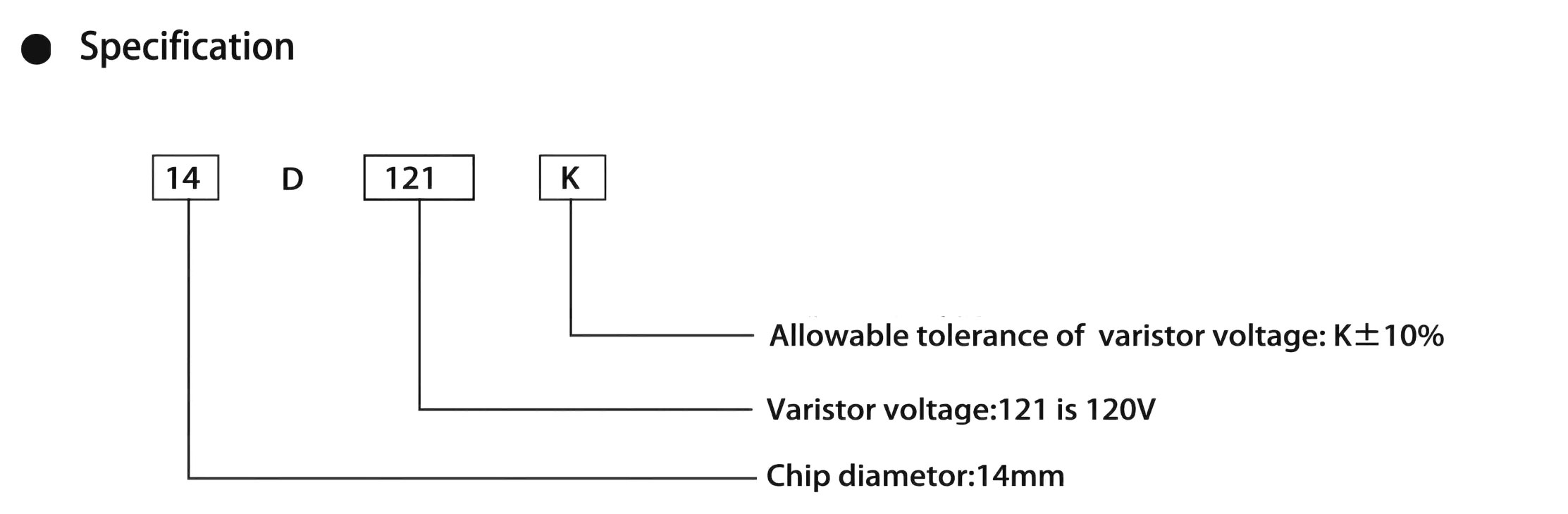

Product Specifications

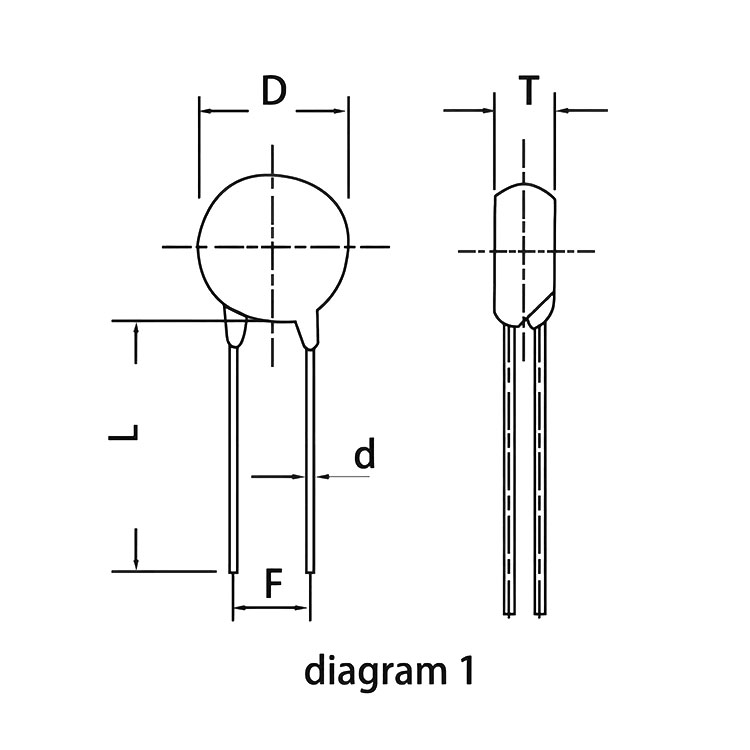

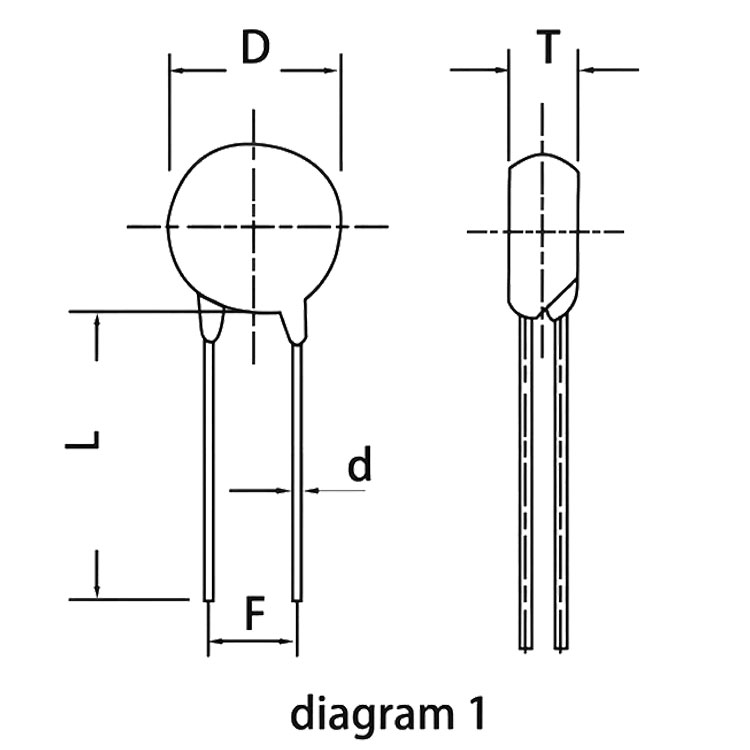

No(mm) Dmax Tmax Lmin F±1 d±0.1
0.5D 7.5 6 20 5

0.6

07D 9 6 20 5 0.6
10D 14 8 25 7.5 0.8
14D 17 12 25 7.5 0.8
20D 25 12 25 10 1.0
25D 30 12 25 12.5 1.0

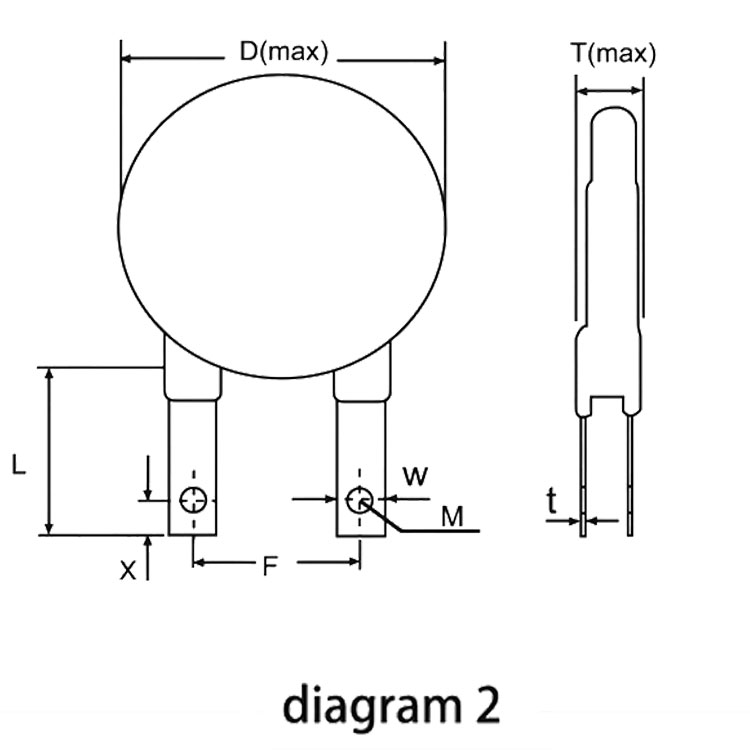

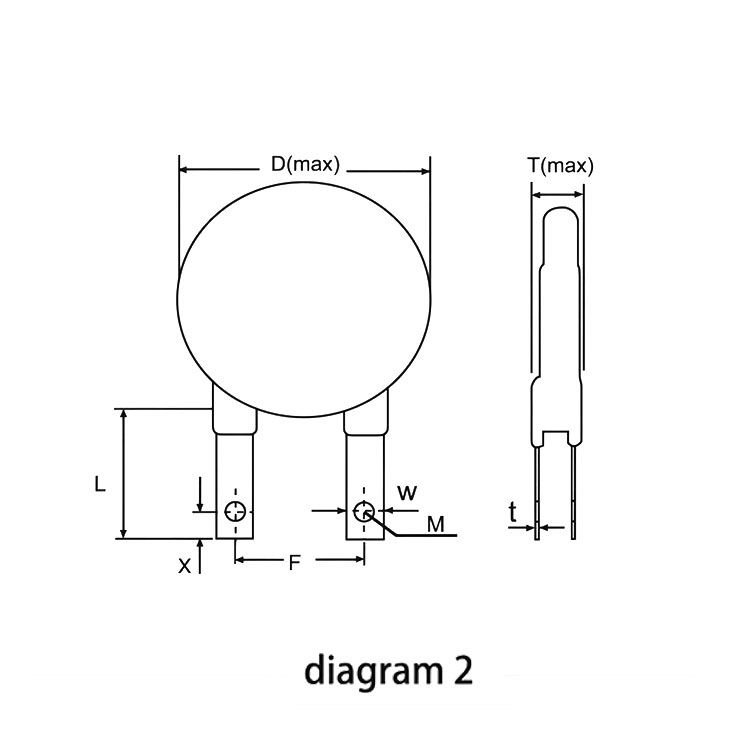

No(mm) Dmax Tmax Lmin F±1 W±0.5  t±0.1  M±0.5  X±0.3
32D 39 14.5 25 25 7.0 0.5 3.8 3.4
40D 46 15 25 25 7.0 0.5 3.8 3.4
50D 56 16 16.5 25 8.0 0.5 3.8 3.4





Why Choose us?

20+ Years Industry Experience

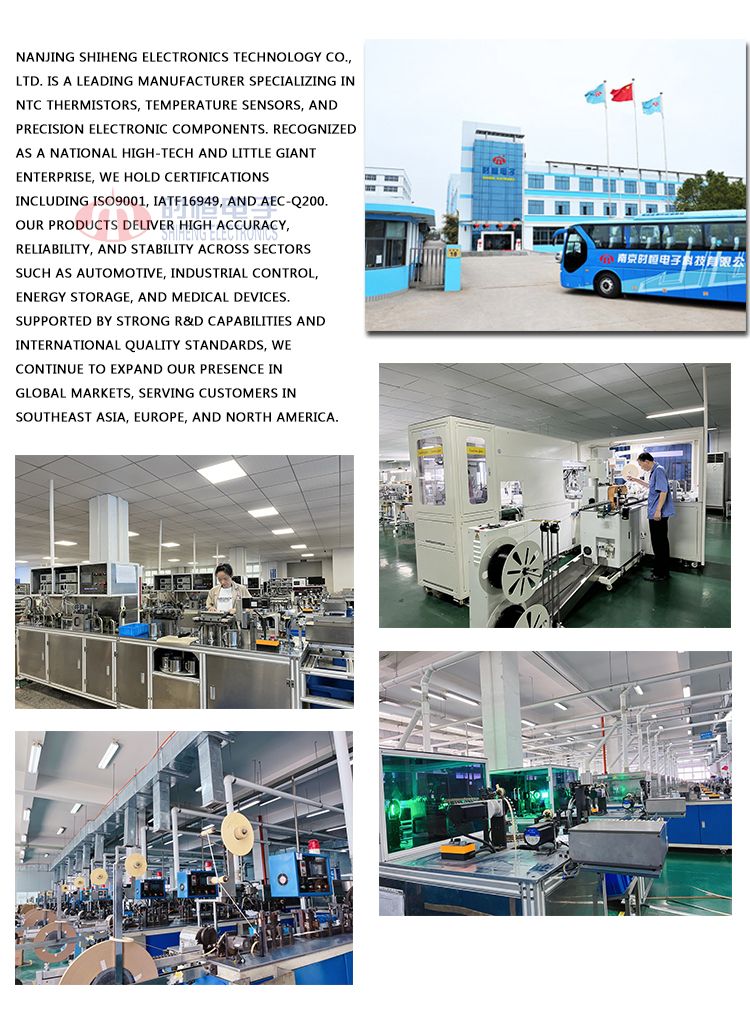

Founded in 2002. Four self-built factories.

Nanjing Shiheng Electronic Technology Co., Ltd.is a national high-tech enterprise integrating research and development, production and sales.Sensitive components such as PTC thermistors and zinc oxide varistors,among which NTC thermistor series products cover surge suppression, temperature compensation, precision temperature measurement, temperature control and other applications.The company's registered trademark is "Jiangsu Famous Brand", and itsproducts are "Nanjing Famous Brand Products". As a key enteprise in the industry, Shiheng Electronics was designated by the industry association to participate in the drafting of thenational "13th Five-Year Plan" and "14thFive-Year Plan".

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related Products

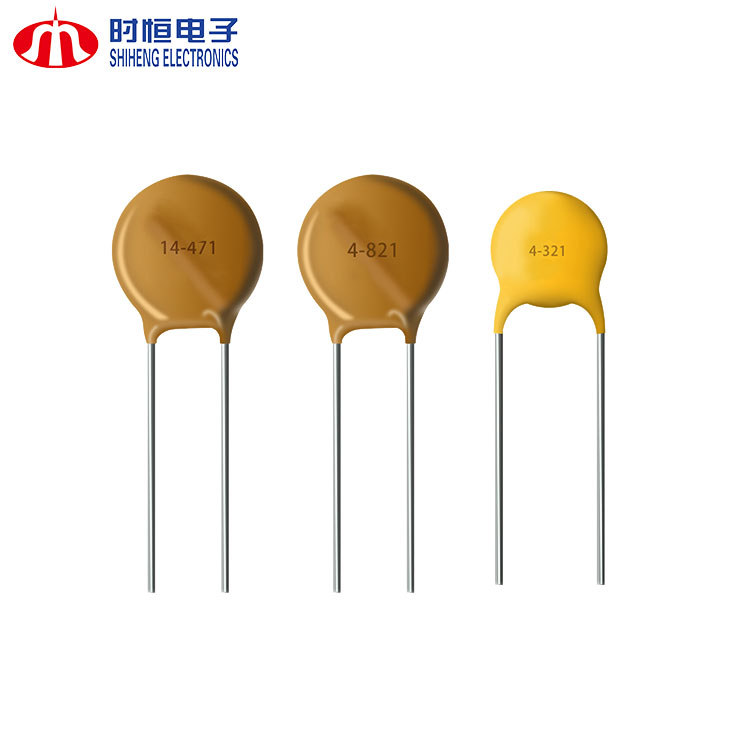

MYG Over voltage-protection Style Zinc Oxide Varistor
MYG is mainly used for voltage clamping when the circuit is subjected to overvoltage and absorbs excess current to protect sensitive devices.
read more

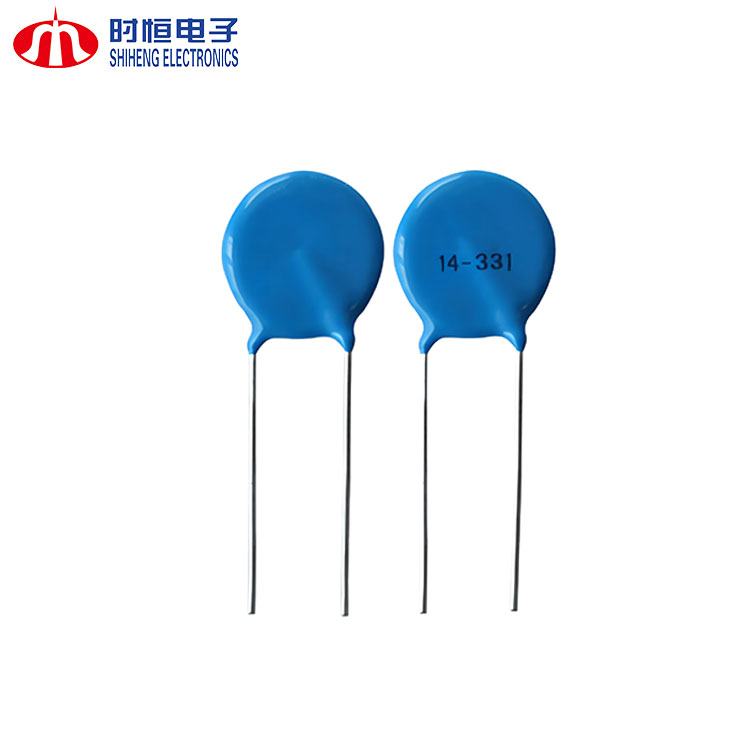

GNR overvoltage protection varistor
