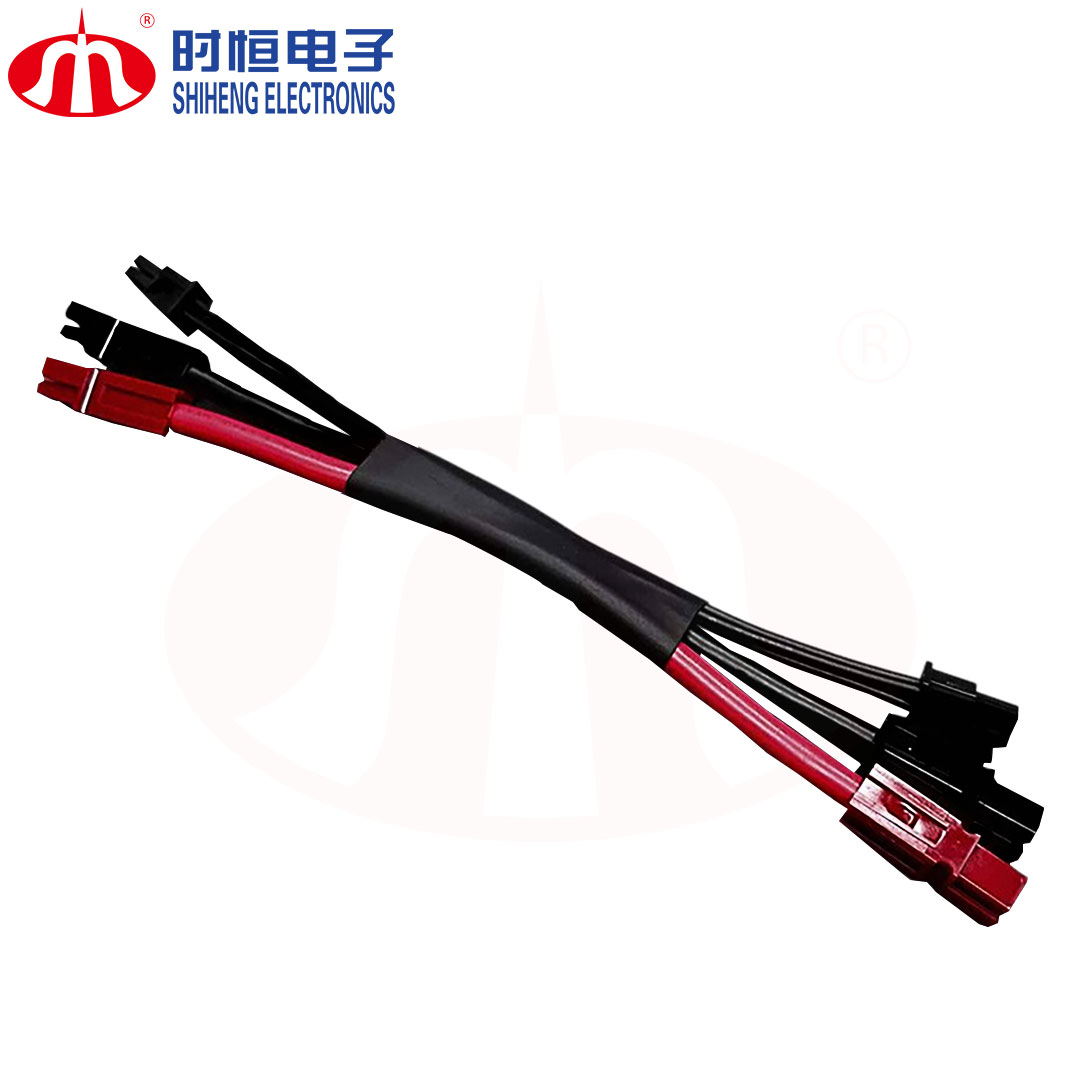

1.What Is a Cable Assembly?

A cable assembly is a combination of wires, connectors/terminals, and protective materials designed to deliver power or signals between different parts of a device. Think of it as the circulatory system of an electronic product—without it, nothing communicates or powers up.

Cable assemblies can be fully customized to match the device’s internal layout, routing path, voltage/current requirements, and environmental demands.

2. Key Considerations When Selecting a Cable Assembly.

a.Wire Selection.

Different applications demand different levels of heat resistance, flexibility, voltage rating, and durability:

• UL1007 / UL1015 – common for appliances and power supplies.
• UL2464 – signal and control wiring.
• Silicone wire – high-temperature equipment such as heaters.
• PTFE (Teflon) – extreme temperatures, abrasion, chemical exposure.
• Shielded wire – noise-sensitive industrial or data applications.

Choosing the wrong wire type can lead to excessive heat, voltage drop, premature aging—or worse, electrical failure.

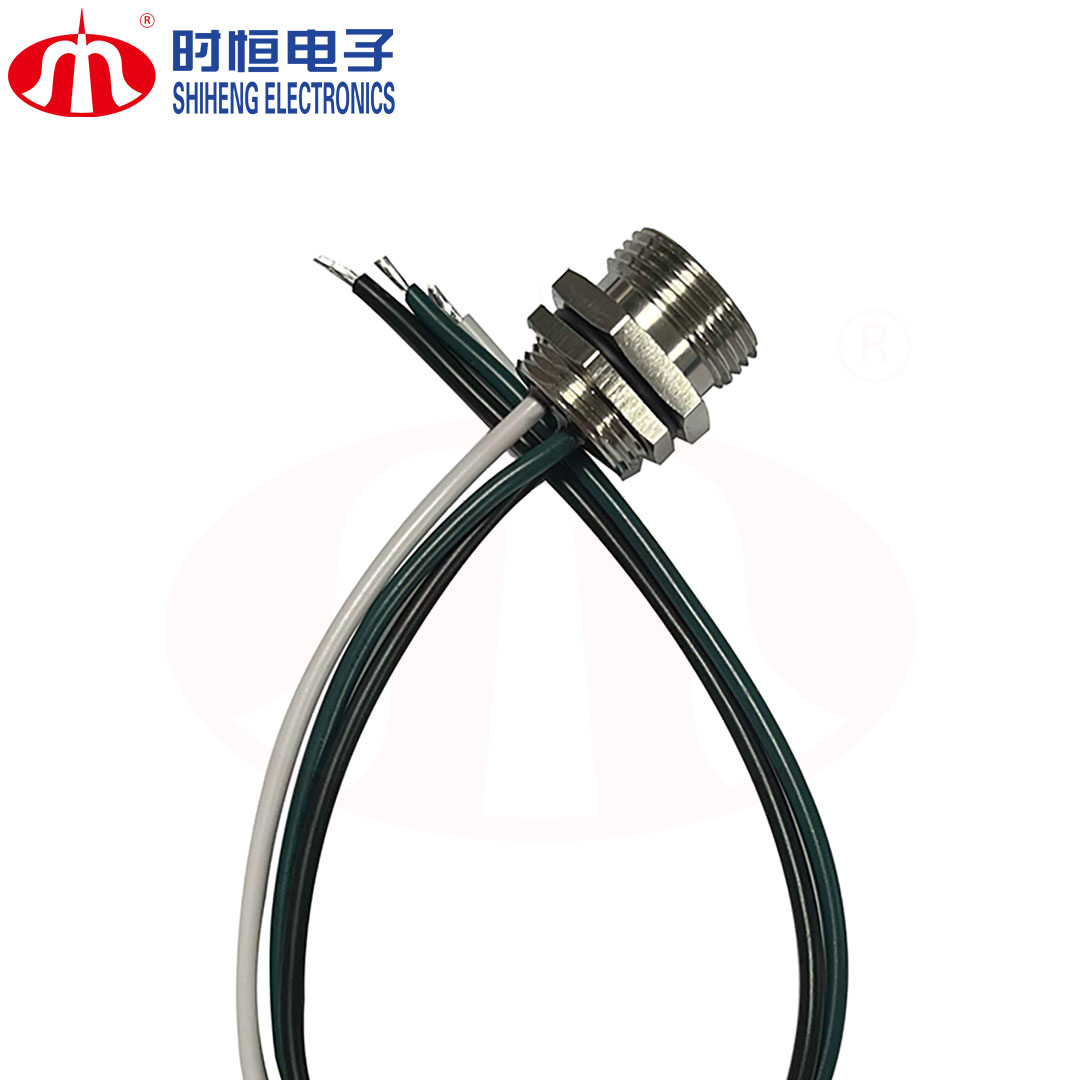

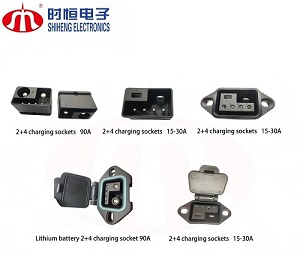

b. Connector & Terminal Compatibility.

The connector must precisely match the device interface. Otherwise you risk:

Poor mating. Unstable connections. Intermittent signals. Terminal overheating or damage.

c. Protective Materials.

Protection should be chosen based on the working environment:

• Heat-shrink tubing / waterproof shrink.

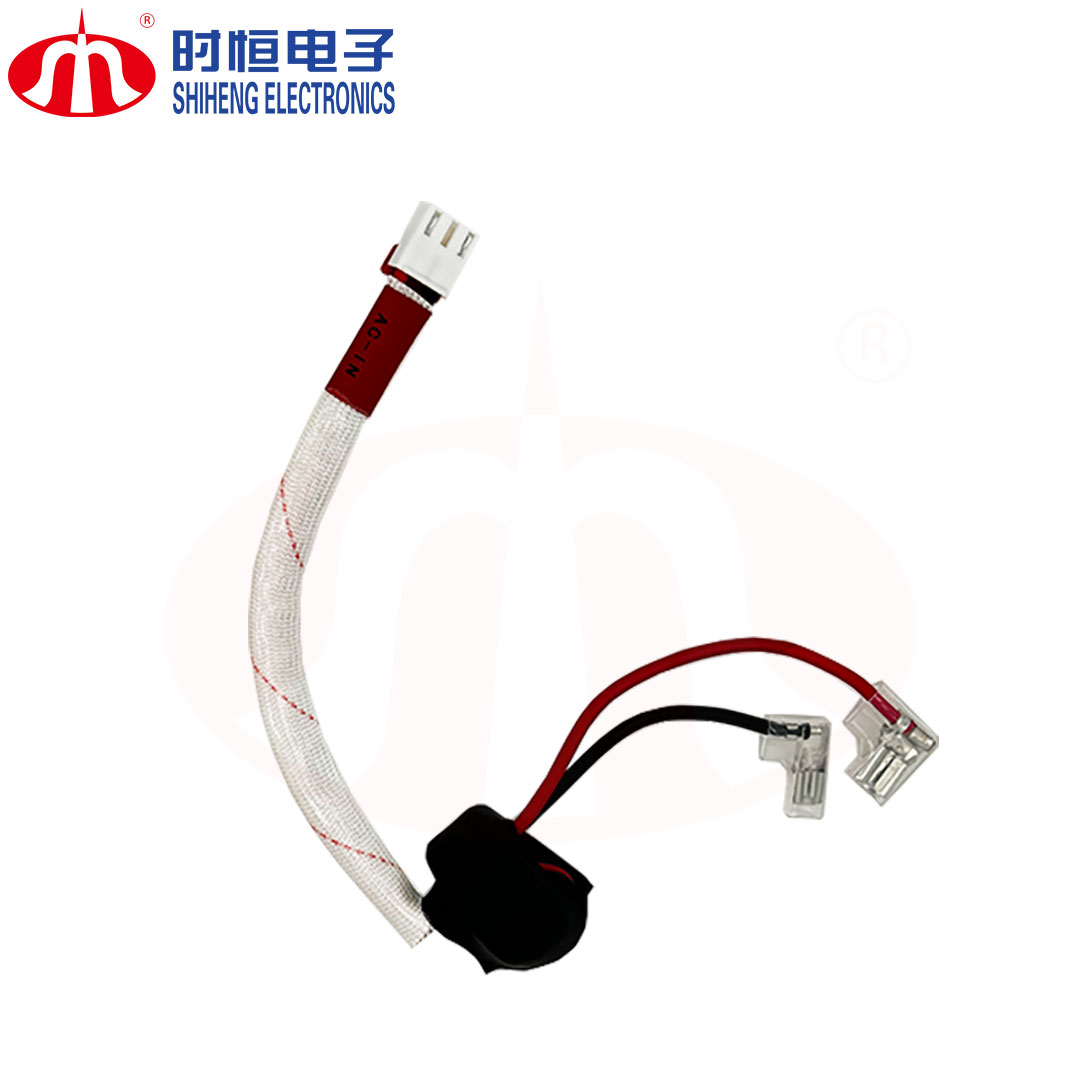

• Fiberglass sleeves for high heat.
• PVC or woven tape for abrasion protection.
• Nylon mesh for anti-friction and bend resistance.
• EMI shielding for noise-sensitive circuits.

The harsher the environment, the more robust the protection needs to be.

d. Assembly Structure Design.

To improve routing and ease of installation, cable assemblies can be formed into:

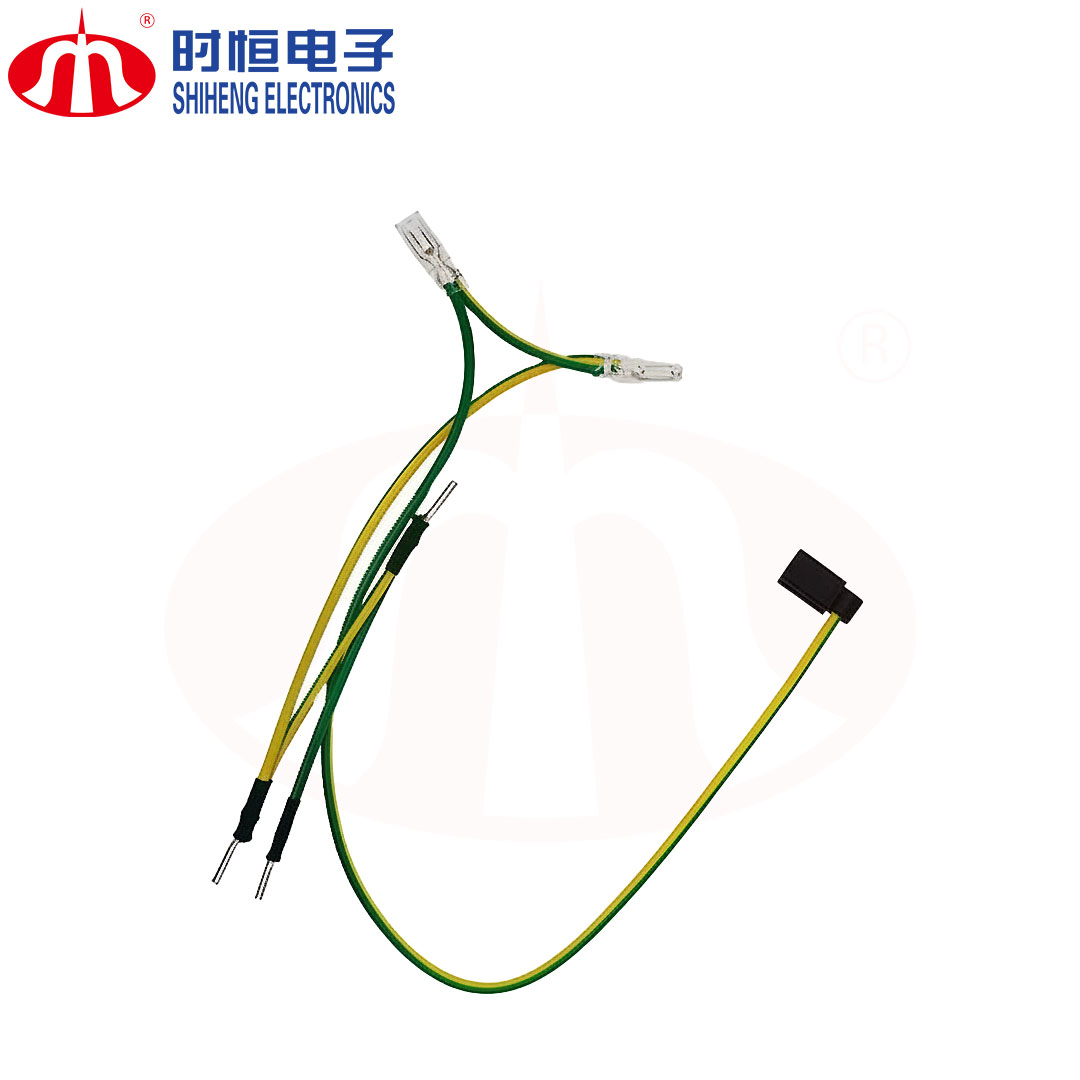

• Y/T branches.
• Flat or ribbon-style structures.

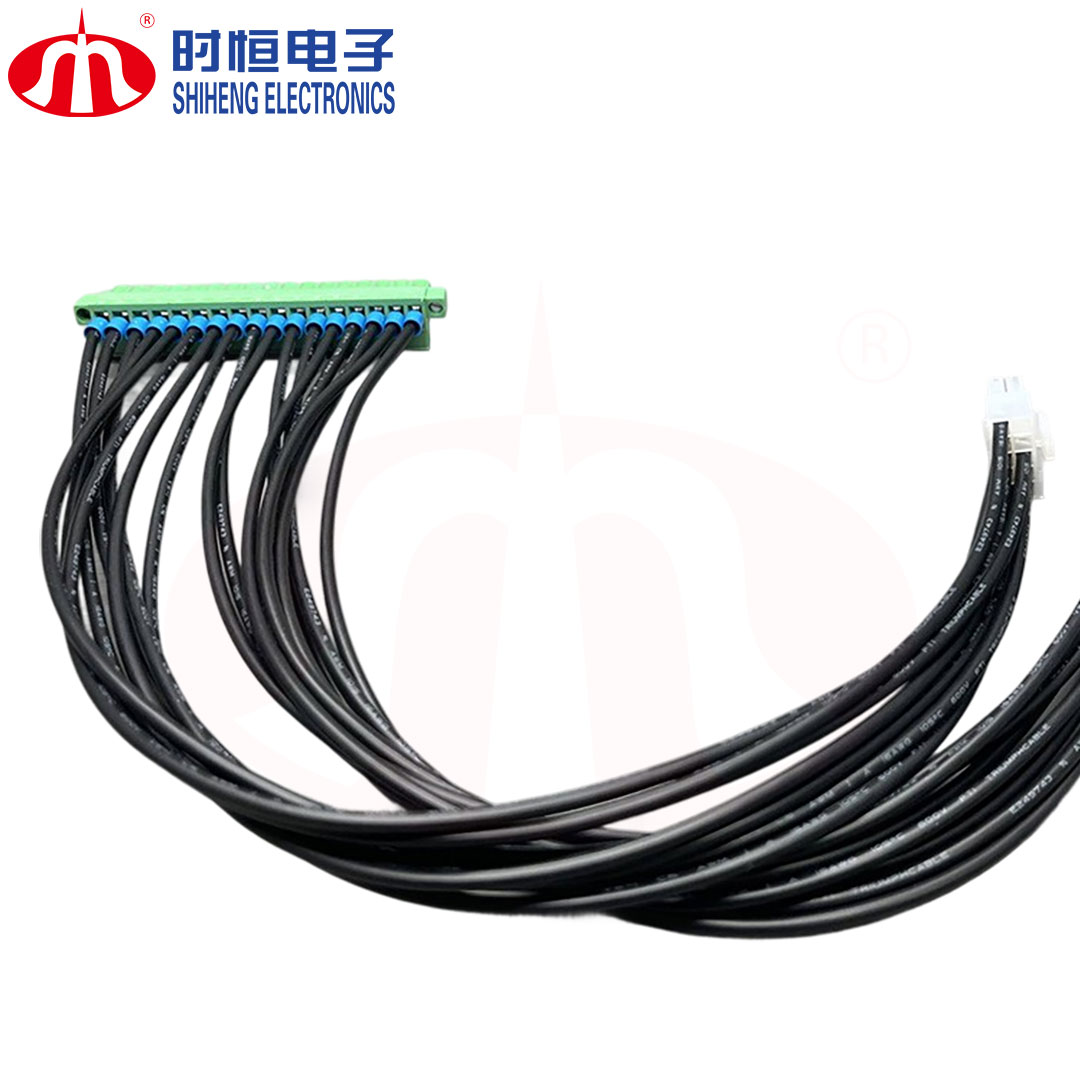

• Multi-core bundled harnesses.
• Pre-formed harnesses to avoid interference in tight spaces.

The right structure improves production efficiency and long-term reliability.

e. Functional Integration.

Some applications require the cable assembly to perform additional functions, such as:

• Integrating an NTC thermistor for temperature monitoring.
• Adding a fuse, TVS diode, or ferrite ring.
• Built-in temperature probe for BMS, heaters, or motors.

Missing functional requirements often leads to expensive redesigns later.

3. Common Issues to Avoid.

Even experienced engineers encounter these pitfalls:

• Undersized wire → overheating & reduced lifespan.
• Wrong connector model → poor mating or no fit.
• Insufficient protection → wear, moisture ingress, electrical leakage.
• Poor harness routing → assembly problems or mechanical interference.
• Bad crimping → unstable contact or intermittent failure.

Cable issues may seem minor, but they often show up after mass production, making them costly to fix.

4. Why Work With Shiheng Electronics?

Shiheng offers professional, reliable, and fully customized cable assembly solutions backed by years of component manufacturing experience.What we provide:

• Engineer-to-engineer support for wire selection, connector matching, routing design, and DFM optimization.
• Full customization across structure, connector brands, wire types, and protection methods.
• Strict quality assurance: RoHS/REACH, UL-certified wires, ISO9001, and 100% functional testing.
• Fast sample lead times: 3–7 days for prototypes.
• Integrated NTC temperature sensing options for batteries, motors, heaters, and appliances.

A cable assembly is far more than a few wires bundled together—it’s a core component that affects the safety, performance, and durability of your product. Understanding how to select the right wire, connector, protection material, and structure helps reduce design risks and improves long-term reliability.

At Shiheng, we act as an extension of your engineering team—providing DFM support, proactive technical insights, and dependable solutions that scale with your production.
