When a quadruped robot sprints across rubble or a six-legged bionic robot climbs rugged terrain, we marvel at its lifelike movement and intelligence.  Behind this performance lies an invisible thermal challenge — inside each joint motor, high energy conversion generates heat that can threaten system reliability.  At the core of this protection is a high precision NTC thermistor, embedded in enameled wire — the “temperature lifeline” safeguarding every motion and stride.

1. The Hidden Thermal Challenge of Robotic Motion

Multi-legged robots achieve stability and agility through synchronized, high-frequency joint movements.  However, these operations create significant thermal stress for precision motors:

• High-frequency, high-impact loads: Rapid acceleration and climbing require motors to output peak torque repeatedly, producing intense Joule heat.
• Compact integration space: To achieve lightweight, bionic proportions, joint motors must remain small and efficient, leaving minimal room for heat dissipation.
• Sealed environments: Dust-proof and moisture-resistant designs trap heat inside, forming a “thermal enclosure”.
• Overheating consequences: Excessive heat causes magnet demagnetization, insulation aging, and torque loss — leading to irreversible failure.

Without accurate real-time temperature feedback, each extreme motion risks degrading the robot’s long-term reliability.

2. Embedded Thermal Sensing with Enameled Wire NTC Thermistors

The enameled wire NTC thermistor integrates a precision thermistor chip with insulated fine copper wire, enabling seamless embedding into motor windings.  Its high accuracy thermistor design ensures fast response and excellent stability, providing reliable real-time thermal feedback.  This compact yet powerful component forms a smart thermal sensing network within each robotic joint.

3. Three Core Advantages for Robotic Systems

1️⃣ Real-Time Overheating Protection.

By monitoring resistance changes, the robot’s control system can detect even the slightest temperature rise.  When heat increases abnormally, the controller instantly:

• Reduces motor torque.
• Adjusts gait coordination.
• Initiates active cooling.

This protects motors from irreversible thermal damage — a hallmark feature of every high precision thermistor solution.

2️⃣ Dynamic Thermal Management and Load Balancing.

In high-end robotics, thermal sensing data supports intelligent performance management.  By reading temperature values from each precision NTC thermistor, the controller can dynamically balance load distribution.

Example: if the right-front motor’s temperature spikes, control logic reallocates workload to cooler legs, creating thermal equilibrium and ensuring continuous operation under heavy load.

3️⃣ Health Monitoring and Predictive Maintenance.

The accumulated temperature data from each motor becomes a thermal health record.  By analyzing heat patterns, the system can predict potential failures:

• Gear friction → temperature rise.
• Lubrication degradation → reduced efficiency.
• Bearing misalignment → local overheating.

Such proactive diagnostics transform passive repairs into predictive maintenance, reducing downtime and maintenance cost — an increasingly essential feature in modern thermistors for sale in robotics applications.

4. Applications Across Robotic Platforms

• Quadruped & Dog-Type Robots:
  Focus on agility and speed — precision thermistors prevent shoulder and hip motors from overheating during high-impact running or jumping.
• Six-Legged & Heavy-Duty Robots:
  Prioritize stability and endurance — high accuracy thermistors maintain consistent joint temperatures under prolonged heavy loads.

5. Shiheng Electronics’ High Precision NTC Solutions

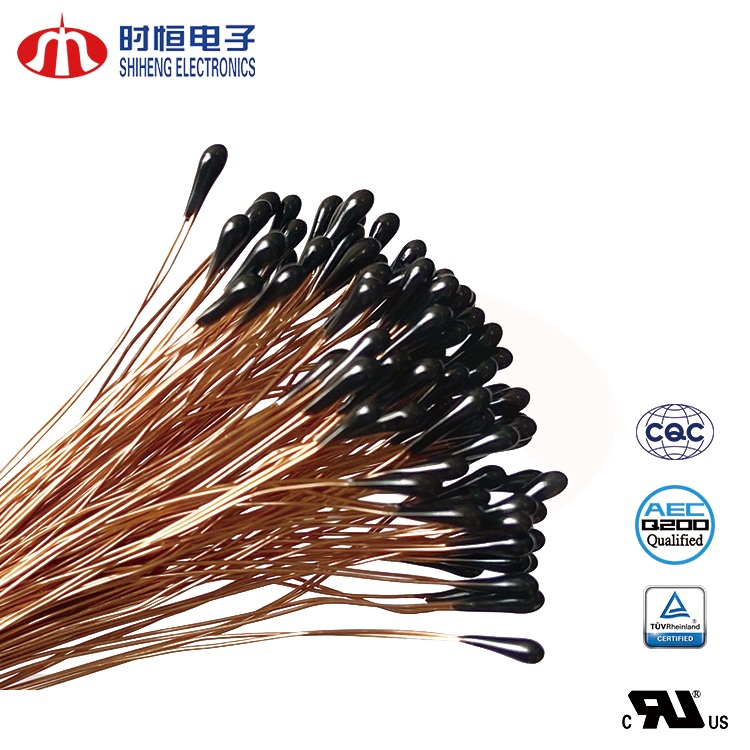

Nanjing Shiheng Electronics Co., Ltd. specializes in the R&D and production of high precision NTC thermistors and temperature sensors for advanced applications in robotics, power electronics, and automation.  Our MF52 series measuring-type NTC thermistors are widely used in temperature control using thermistor designs, ensuring reliable heat management for robotic joint motors.

Key Advantages:

• High accuracy, high sensitivity
• Compact design, easy for automated assembly
• Safe insulation and wide operating temperature range
• Full certifications and model diversity

With strong reliability and consistent performance, Shiheng Electronics’ precision NTC thermistors provide the foundation for safe, stable, and intelligent temperature control — making them the trusted choice among thermistors for sale worldwide.
