As electric vehicles (EVs) become the cornerstone of modern transportation, the importance of managing temperature within their critical systems cannot be overstated. High-voltage cables, which transmit energy between the battery and motor, are among the most crucial components requiring temperature monitoring to ensure efficiency and safety. NTC thermistors, including innovative options like the micro NTC Thermistor and advanced thin film NTC thermistors, play a pivotal role in achieving this goal.

 Why Monitor Temperature in High-Voltage Cables?

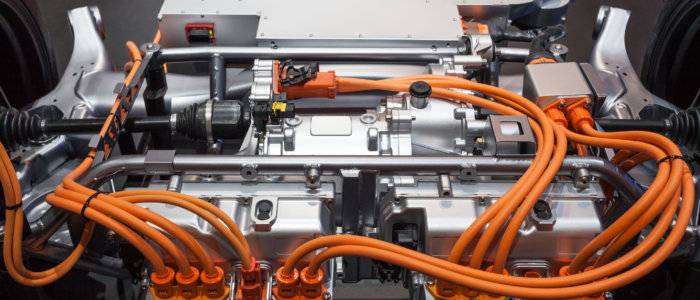

High-voltage cables in EVs carry significant amounts of electrical energy, which generates heat during operation. Overheating can degrade cable insulation, compromise performance, and, in extreme cases, lead to safety hazards. Real-time temperature monitoring ensures:

- Operational Safety: Prevents overheating and reduces the risk of electrical fires.

- System Efficiency: Ensures optimal energy transmission between the battery and motor.

- Component Longevity: Protects cables from thermal damage, extending their lifespan.

 How NTC Thermistors Support High-Voltage Cable Monitoring ：

NTC thermistors (Negative Temperature Coefficient thermistors) are highly sensitive resistors whose resistance decreases as temperature increases. This characteristic makes them ideal for real-time temperature monitoring in high-voltage cables.

1. Precision and Responsiveness:

   - Thermistors like the micro NTC Thermistor offer high accuracy, providing precise temperature data even in dynamic environments.

   - Their fast response times ensure that any temperature changes are quickly detected, allowing for immediate corrective actions.

2. Compact and Versatile:

   - Advanced designs, such as thin film NTC thermistors, feature ultra-slim profiles, making them easy to integrate into the confined spaces of high-voltage cable assemblies.

3. Durability:

   - These thermistors are built to withstand harsh conditions, including vibrations, moisture, and extreme temperatures, making them ideal for EV applications.

In EVs, NTC thermistors are strategically placed along the high-voltage cable to monitor temperature changes in real time. Here’s how they work:

• The thermistor detects heat generated during power transmission.
• The resistance change in the thermistor is converted into a temperature reading by the vehicle's thermal management system.
• If the temperature exceeds safe limits, the system adjusts power flow or activates cooling mechanisms to prevent overheating.

While NTC thermistors are widely used, other temperature sensors like the PT 100 temperature sensor are also employed in specific scenarios. Here’s how they compare:

While PT 100 temperature sensors excel in industrial and scientific applications, NTC thermistors remain the preferred choice for EV high-voltage cable monitoring due to their size, cost, and responsiveness.

Future Trends: Intelligent Cable Systems

As EV technology evolves, high-voltage cables are becoming smarter with integrated thermal management features. Innovations include:

- Smart Cables: Combining thin film NTC thermistors with microcontrollers for autonomous thermal management.

- Wireless Monitoring: Leveraging wireless communication to provide real-time temperature data without complex wiring.

- Sustainability: Using recyclable materials in thermistor production to align with the green energy goals of EVs.

The synergy between NTC thermistors and high-voltage cables is essential for the safe and efficient operation of electric vehicles. Whether it’s a robust micro NTC Thermistor or a compact thin film NTC thermistor, these components ensure precise temperature monitoring and thermal protection. While alternatives like the PT 100 temperature sensor have their place, the versatility and cost-effectiveness of NTC thermistors make them the ideal choice for modern EV systems.

As the EV market continues to expand, integrating advanced thermistor technologies into high-voltage cables will be key to enhancing safety, performance, and sustainability.
