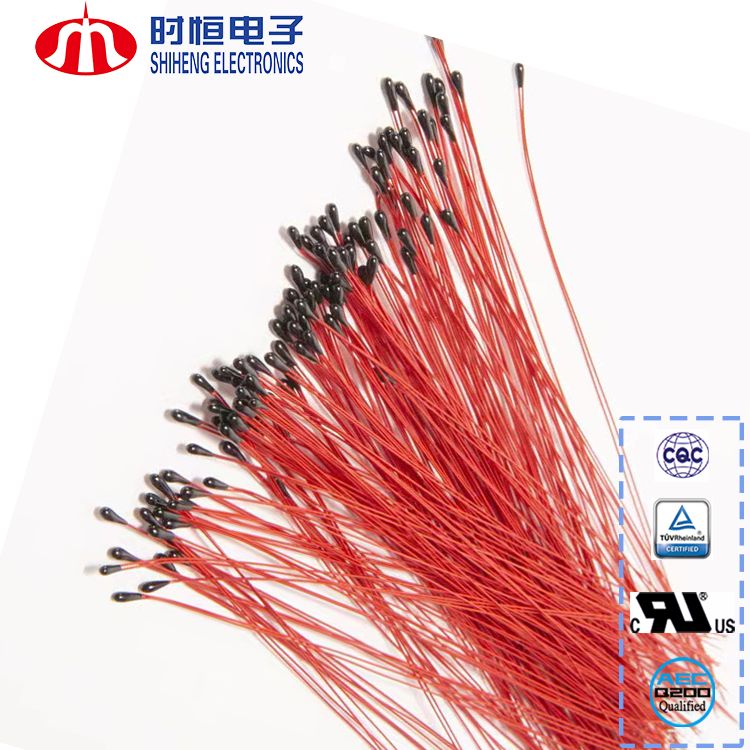

High-altitude sondes are critical instruments for measuring temperature, pressure, and humidity in the atmosphere, reaching altitudes up to 36 km. Carried by detection balloons that ascend at an average speed of 6 to 10 m/s, these sondes play a vital role in atmospheric research. Given the rapid and extreme temperature changes in high-altitude environments, precise and reliable temperature measurement is essential. The MF51E NTC thermistor from Nanjing Shiheng Electronics provides unmatched accuracy and sensitivity, making it an ideal choice for these demanding applications.

The MF51E NTC thermistor features a resistance value accuracy of ±0.05% and a temperature measurement precision of ±0.1°C, even across wide temperature ranges. This level of accuracy is crucial for ensuring reliable data collection in high-altitude sondes, which must operate under challenging conditions.

The application of thermistors in high-altitude sondes requires components to meet several unique demands. Measurement instruments in sondes must:

1. Operate effectively while moving vertically and horizontally, accounting for potential deviations between measured and true values, especially in atmospheric layers with sharp gradients.

2. Rapidly convert meteorological data into signals for easy identification and transmission to ground observation stations via radio channels.

3. Handle the significant temporal and spatial variability of atmospheric conditions, requiring sensors with a broad dynamic range.

4. Be lightweight, compact, and cost-effective due to the single-use nature of sondes.

To address these challenges, the MF51E NTC thermistor is specifically designed with:

- Fast thermal response: Reducing measurement lag and improving data accuracy.

- Compact size and lightweight design: Minimizing thermal inertia and enabling easy integration with protective coatings.

- High resistance output sensitivity: Enhancing measurement resolution in dynamic conditions.

- Robust structure and reliability: Ensuring consistent performance in harsh environments.

These attributes make the MF51E an essential component for high-altitude sondes, providing stable and precise temperature measurements under extreme conditions. Additionally, its cost-effectiveness and ease of production make it a practical choice for single-use devices.

Nanjing Shiheng Electronic Technology Co., Ltd. specializes in the research, development, production, and sales of high-performance NTC thermistors and temperature sensors. Our products have earned certifications including UL, C-UL, and TUV, and automotive-grade thermistors such as the MF52, MF51, MF58, and MF59 series have successfully passed the AEC-Q200 performance test. The MF51E thermistor is not only widely used in high-altitude sondes but is also highly regarded in the medical, household appliance, and industrial sectors for its exceptional quality and reliability.

With a proven track record of innovation and excellence, Nanjing Shiheng Electronics continues to deliver cutting-edge solutions that meet the demands of diverse industries worldwide.
