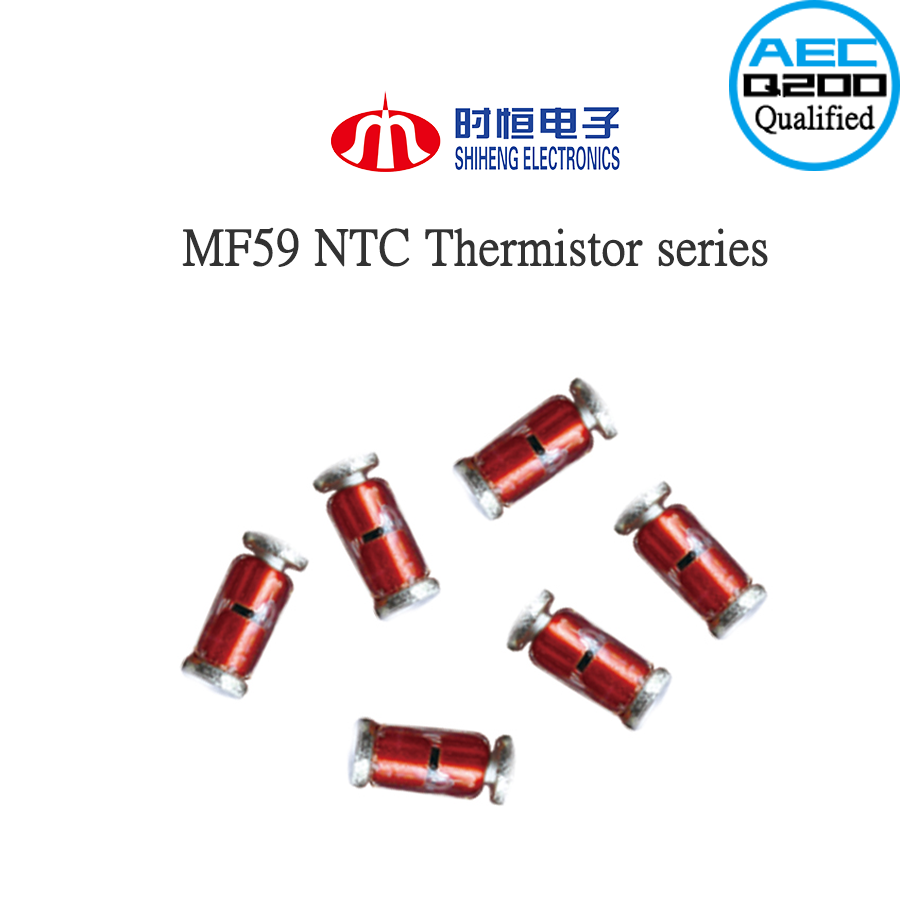

MF59 Glass Shell SMD NTC Thermistor Series
$0.8
Please leave us a message for accurate price
Brand:
Shiheng Electronics
Product origin:
Nanjing China
Delivery time:
Spot goods
Supply capacity:
Self-produced
MF59 Glass Shell SMD NTC Thermistor Series

Glass package, can be used in harsh environments such as high temperature and high humidity
The temperature measurement accuracy is high. Good stability, wide resistance range
Small size, fast response, high sensitivity
Leadless, convenient for SMT automatic installation

●Characteristics

◎Glass encapsulation, capaility of operating in the bad environment of high temperature and high humidity because of the glass encapsulation framework.

◎High precision of temperature testing,good stability and broad range of resistance.

◎ Small size, fast response, high sensitivity.

◎ Without leads, convenient for SMT automatic installation.

smd glass ntc

●Applications

◎ Automatic work facilities (such as lap-top,copycat,printer and so on)

◎ Digital equipment(such as mobile phone,PDA and etc.)

◎ Rechargeable battery(lithium battery, ni-mh battery)

◎ Temperature compensation of loops of instrument,integrated circuit, quartz crystal monofier and thermocouple.




●Main techno-parameter

◎The range of resistance under the rated zero power(R25): 0.1~1000K Q

◎The allowable tolerance of R25:±1%、±2%、±3%、±5%、±10%

◎The allowable tolerance of B value:±0.5%、±1%

◎Dissipation factor: model A≥2mW/C(in til air), model B≥1mW/℃ (in still ar)

◎Thermal time constant: model A≤10S(in still air),model B≤5S(in still ar)

◎operating temperature range:-55℃~220℃

◎Rated power at 25℃:model A≤10mW,model B≤5mW



●specification

The allowable tolerance of ( Label by Requirement) E:±0.5%、F:±1%

B value: Namely 3950K

Allowable tolerance code:F:±1%、G:±2%、H:±3%、J:±5%、K:±10%

rated resistance: 103 is 10 KQ

configuration and code: Model A

Type: chip glass shell NTC thermistor


●Dimensions(unit:mm)

type

length(mm)

diameter(mm)



MF59A

3.6 ±0.2

1.5 ±0.2

MF59B

1.8 ±0.2

1.1 ±0.2



Dimension:

smd glass ntc thermistor
