MF52A Temp Measurement NTC Thermistor Series
$0.06
Please leave us a message for accurate price
Brand:
Shiheng Electronics
Product origin:
Nanjing China
Delivery time:
Spot goods
Supply capacity:
Self-produced
MF52A Temp Measurement NTC Thermistor Series

High temperature measurement accuracy, small size, fast response speed

● Introduction

MF52 Pearl-Shape Precision NTC Thermistor is ethoxy resin-enveloped thermistor in Small size which is made from new materials and by new technique, So we have researched and developed several kinds of products,according to the different application field.


Applications

Air-condition equipment

Heating apparatus

Electronic thermometer

Liquid level sensor

Automobile electricity

Electronic table-board

Battery of mobile telephone


Characteristic

High testing precision

Small size,fast response

Steady operating for long time

Good quality of coherence and interchange

Scale production,high ratio of features to cost

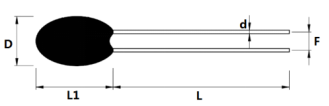

Dimensions(mm)


10K thermistor


A:(Tinned copper or steel wire)

Normal dimension table

 Code

Dmax

L1max

L2min

d±0.05

F±0.5

A1

2.5

4

25

0.3

1.7

A2

3

4.5

25

0.45

2.2




Main Techno-Parameter


Part No.

Rated Resistance R25(KΩ )

B Value(25/50°KΩ)

Rated Power (mw)

Dissi. Coef. (mw/°C)

Thermal time Constant(S)

Operating Temp. (°C)

Dissipation coefficient

MF52□□□3100

0.1  ~20

3100

≤50

≥2.0

In Still Air

≤12

In Still Air

-55~+125°C

≥2mW/℃

MF52□□□ 3270

0.2  ~20

3270

MF52□□□ 3380

0.5  ~50

3380

MF52□□□ 3470

0.5  ~50

3470

MF52□□□ 3600

1  ~100

3600

MF52□□□ 3950

5  ~100

3950

MF52□□□ 4000

5  ~100

4000

MF52□□□ 4050

5  ~200

4050

MF52□□□ 4150

10  ~250

4150

MF52□□□ 4300

20  ~1000

4300

MF52□□□ 4500

20  ~1000

4500


Reference Specifications:

MF52A1 103F3950 .pdf

MF52A2 103F3950 .pdf
