The MF72 series is a thermistor used to suppress surge currents.
Item No :
MF72Zero Power Resistance at 25℃ :
1~400ΩB Value at 25/50°C :
2200~4000KMax steady current :
0.1~12ATemperature Range :
-40~200℃Max allowable capacity value :
1000μFThermal dissipation Coefficient :
≥32mW/℃Thermalcooling time constant :
≤20secMaximum rated power :
7.5WInsulation resistance :
≥500MΩWithstand voltage :
No breakthrough and flash overMF72 Power Direct Heating Negative Temperature Coefficient Thermistor
Product Description
Power type NTC suppresses the surge current at startup. Its zero-power resistance value suppresses the surge current at the moment of startup so that the surge current at the moment of startup will not be too large.
Product Features
1. Application scope:
● Server and communication power supplies.
● UPS and backup power systems.
● High-power LED lighting circuits.
● Industrial and commercial lighting drivers.
● Inverters.
● High-power AC/DC converter systems.
● Industrial control power supplies.
● Power tools and portable charging equipment.
● Professional high-power audio amplifiers.
2.Features:
● Small size, high power, strong ability to suppress surge current.
● Fast response speed.
● Material constant (B value) is large and residual resistance is small.
● Long life and high reliability.
● Complete series, wide application range.
3.Installation method:
a) For use, use general soldering method for installation.
b) For vibration and impact tests, the leads are fixed, and the fixed point is 6±1mm away from the resistor body.
Product Display

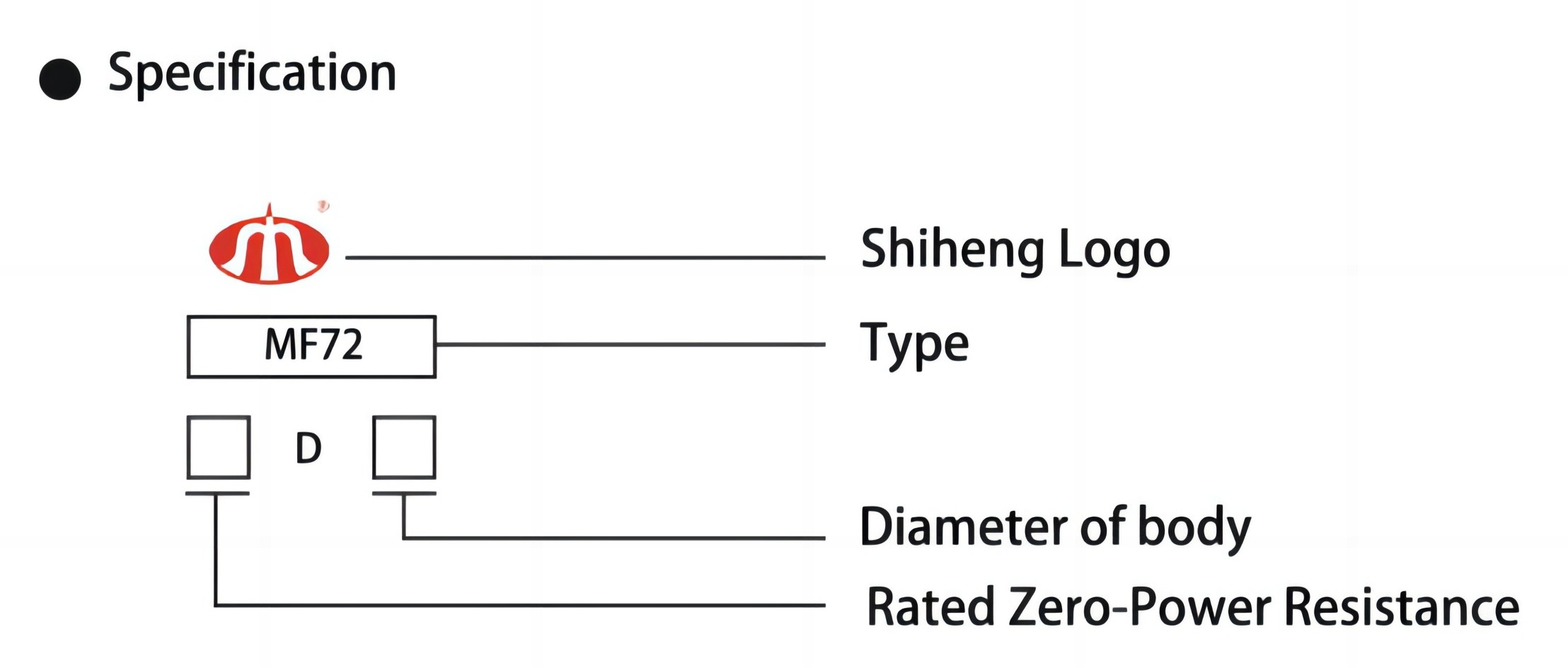

Product Specifications

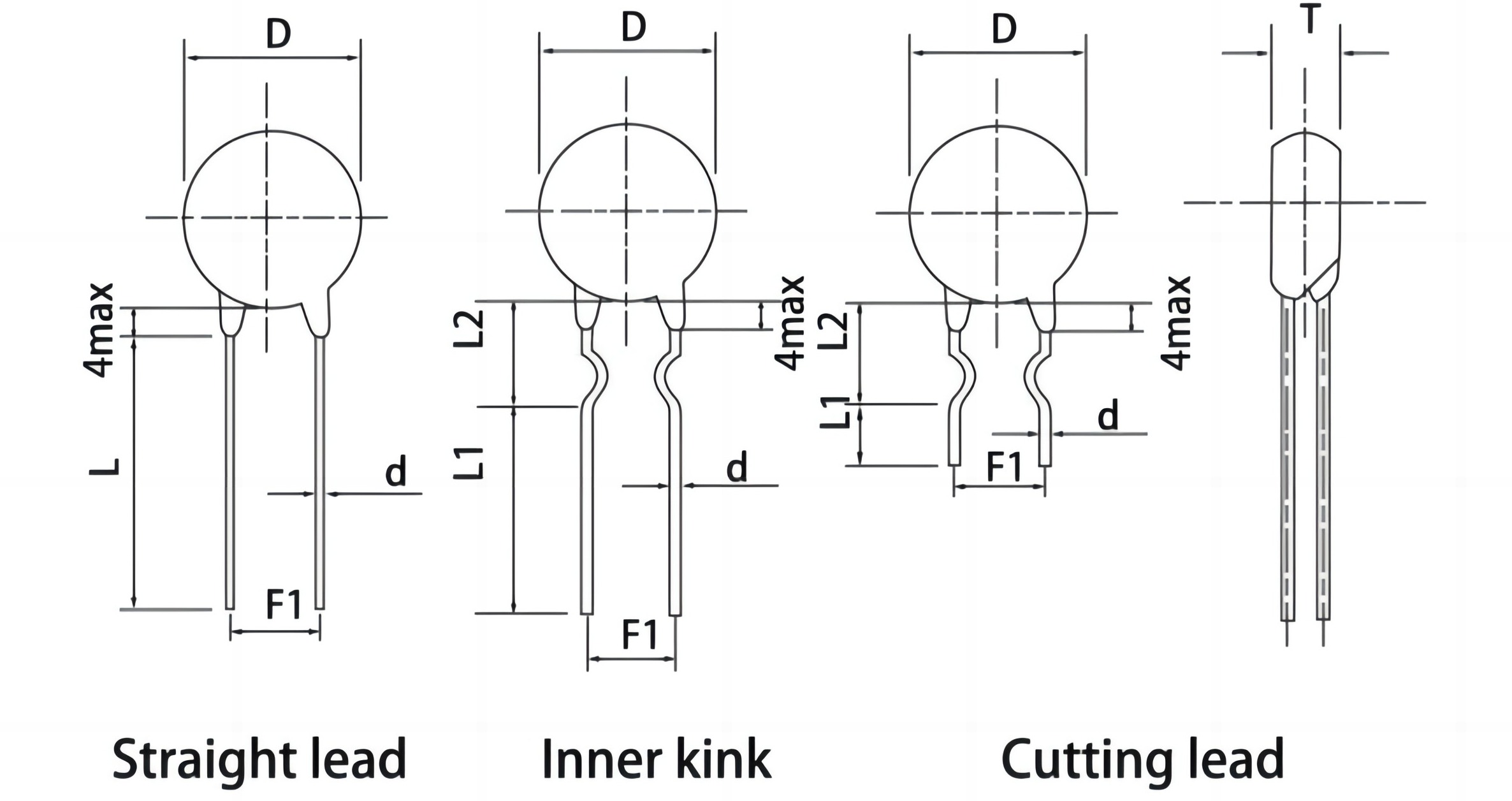

| Dim（mm） | DMAX | TMAX | d±0.05 | F1±1 | Straight lead | Curved lead | |
| LMIN | L1MIN | L2±2 | |||||
| MF72 D5 | 6 | 5 | 0.45/0.6 | 5/2.5 | 25 | 20/5 | 5 |
| MF72 D7 | 8 | 5 | 0.6 | 5 | 25 | 20/5 | 5 |
| MF72 D9 | 10 | 5.5 | 0.8/0.6 | 7.5/5 | 25 | 20/5 | 5 |
| MF72 D11 | 12 | 5.5 | 0.8 | 7.5/5 | 25 | 20/5 | 5 |
| MF72 D13 | 14 | 6 | 0.8 | 7.5/5 | 25 | 20/5 | 5 |
| MF72 D15 | 17.5 | 6 | 0.8 | 10/7.5 | 25 | 20/5 | 5 |
| MF72 D20 | 21 | 7 | 1.0 | 10/7.5 | 25 | / | / |
| MF72 D25 | 27.5 | 8 | 1.0 | 10/7.5 | 25 | / | / |
